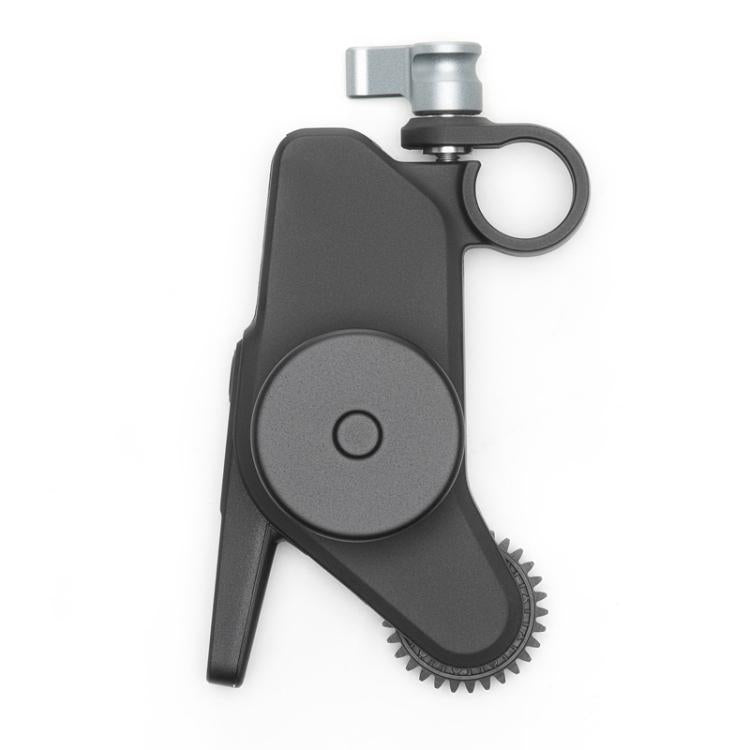

1. The motor speed has increased by 30% for more responsive control over focus, zoom, and aperture. The motor is compatible with 15mm universal rods. The latency is as low as 10 milliseconds, ensuring swift control response when paired with the DJI Focus Pro Hand Unit. The motor features a built-in RF antenna that allows for linking with the DJI Focus Pro Hand Unit. When paired with the DJI Focus Pro Grip, the grip can power the motor via the USB-C port.
2. 2.4GHz Transmitter Power (EIRP): ?< 20 dBm (CE/SRRC/MIC), < 26 dBm (FCC)
3. 2.4GHz Transmission Distance: 160 m/100 m
4. Dimensions: 100×61×34 mm (L×W×H)
5. Weight: 123 g
6. Rod diameter: 15 mm
7. Output gear teeth: 30
8. Output gear module: 0.8
Compatibility:
DJI RS 4 Pro
DJI RS 4
DJI RS 3 Pro
DJI RS 3
DJI Focus Pro Grip
DJI Focus Pro Hand Unit
DJI Ronin 4D Flex
Tips:
1. The motor can be powered through third-party devices. Do not use an extra device to power the DJI Focus Pro Motor when it is already powered (e.g., by the DJI Focus Pro Grip), as this may cause device damage.
2. DJI RS 4 Pro can be used with up to two motors simultaneously, while DJI RS 4 only supports one motor.

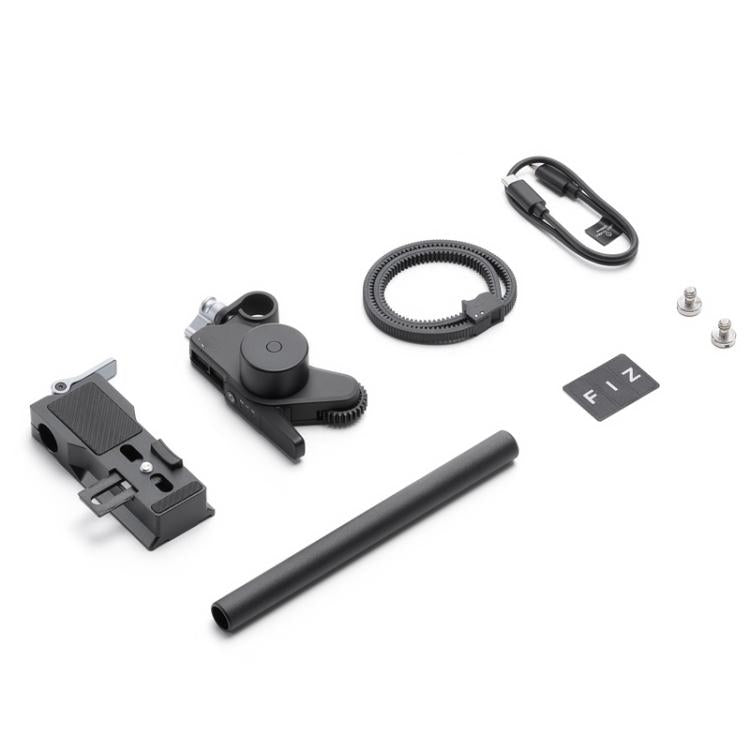

Packing list:
Focus Pro Motor × 1
Motor Rod Mount Kit × 1
Focus Gear Strip × 1
Multi-Camera Control Cable (USB-C, 30 cm) × 1
FIZ Sticker × 1?
15mm Rod × 1
10mm 1/4"-20 Screw × 2
Specification:
|
General
|
| Compatible with |
DJI:
RS 4
, RS 4 Pro
, RS 3 Pro
, RS 3
|
|
|
Package Weight
|
| One Package Weight |
0.30kgs / 0.67lb
|
| One Package Size |
20cm * 12cm * 7cm / 7.87inch * 4.72inch * 2.76inch
|
| Carton Weight |
8.30kgs / 18.30lb
|
| Carton Size |
42cm * 3cm * 30cm / 16.54inch * 1.18inch * 11.81inch
|
| Loading Container |
20GP: 7054 cartons * 24 pcs = 169296 pcs
40HQ: 16376 cartons * 24 pcs = 393024 pcs
|
|
