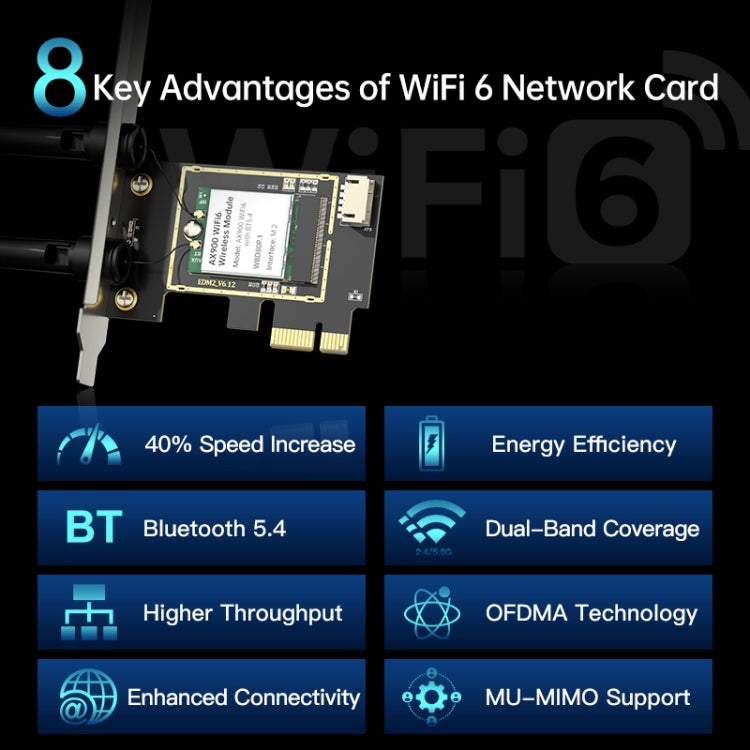

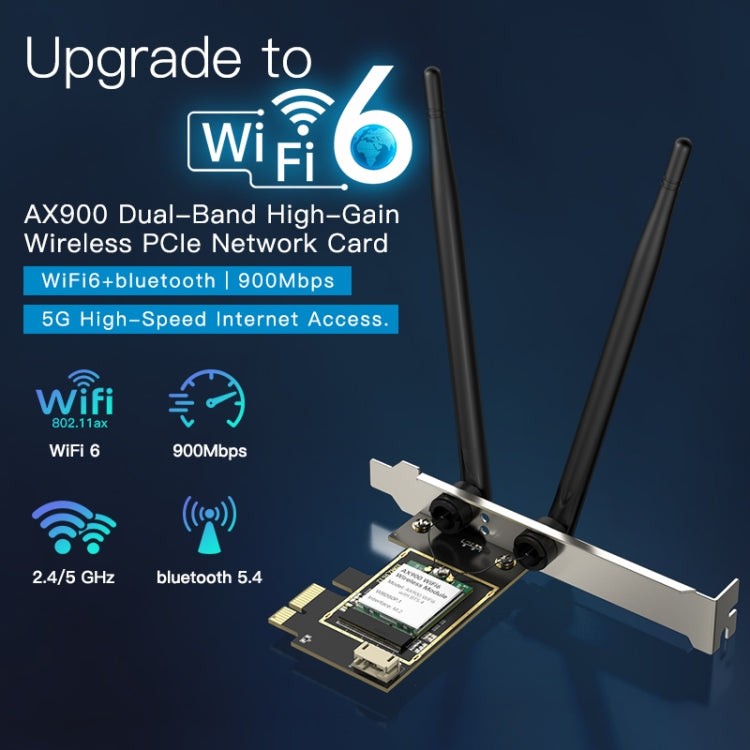

1. Enhanced Wi-Fi Connectivity: Experience seamless wireless connectivity with the EDUP EP-9617ES AX900 PCIe network card, supporting dual-band 802.11AX with 900Mbps transfer rates.
2. Multi-platform Compatibility: This wireless network card is compatible with a wide range of operating systems, including Windows 10/11, Linux, UOS, and Kylin, ensuring an easy installation process.
3. Dual-band Frequency Support: Enjoy stable connections in the 2.4G and 5G frequency ranges, with signal rates of up to 286Mbps and 600Mbps, respectively.
4. High-speed Data Transfer: Using the PCI-E interface type of X1, X4, X8, or X16, this network card enables fast data transfer rates, perfect for heavy Internet use.
Parameters:
1. Interface type: PCIe, USB
2. WiFi: WiFi6E
3. Wireless transmission rate: 900Mbps
4. Chipset: AIC8800D80
5. PCI bus: PCI-E-X1/X4/X8/X16
6. Frequency range: WiFi: 2.4GHz/5GHz, BT: 2402MHz-2483MHz

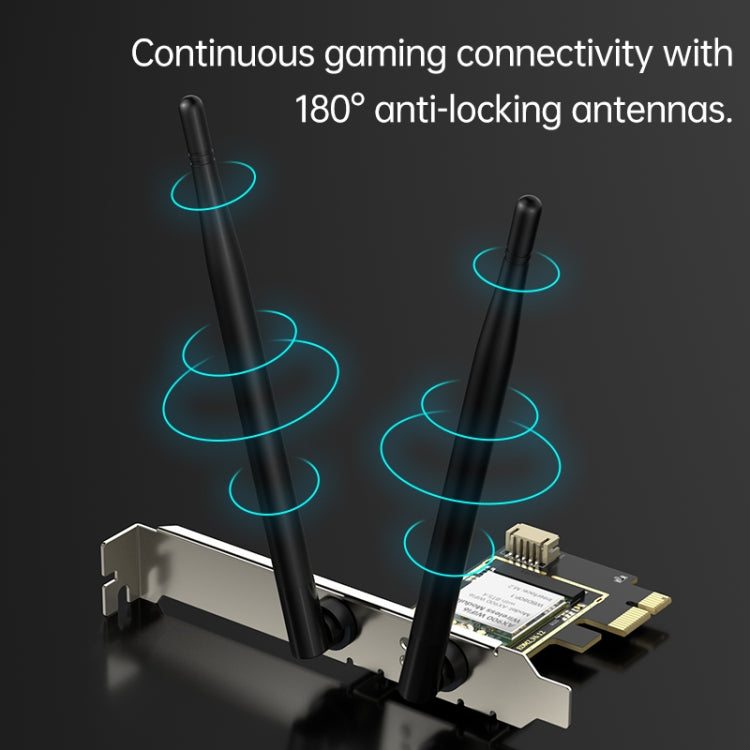

7. Antenna: 2 x 5dBi detachable antenna
8. Signal rate: 2.4G: 286Mbps, 5G: 600Mbps
9. Operating system: Support Windows 10 and above, Linux, UOS, Kylin and other systems
10. Modulation technology: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
11. Size: 68 x 77 x 7mm
Specification:
|
Package Weight
|
| One Package Weight |
0.50kgs / 1.11lb
|
| One Package Size |
10cm * 6cm * 8cm / 3.94inch * 2.36inch * 3.15inch
|
| Carton Weight |
16.00kgs / 35.27lb
|
| Carton Size |
30cm * 25cm * 22cm / 11.81inch * 9.84inch * 8.66inch
|
| Loading Container |
20GP: 1616 cartons * 30 pcs = 48480 pcs
40HQ: 3751 cartons * 30 pcs = 112530 pcs
|
|
