COMFAST CF-E120A 5.8G Outdoor Wireless High-Power Monitoring CPE Bridge, Specification:US Plug

1. Motherboard chip: qualcomm AR9344 560Mhz clocked CPU; power amplifier chip: SKY85735;

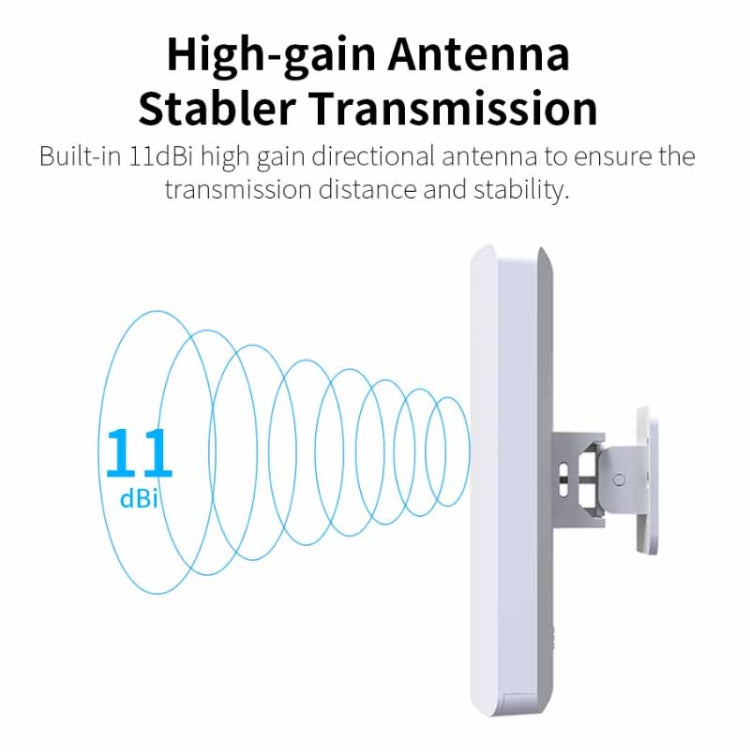

2. Antenna specification: 11dBi 5.8GHz antenna
3. Wireless standard: support IEEE802.11a/an standard; transmit power: 200mW (23dBm)
4. Radio frequency parameters: receiving sensitivity: -96dBm; working frequency: 802.11a / an: 5. 180GHz-5.825GHz
5. Wireless rate: 5.8GHz: 300Mbps

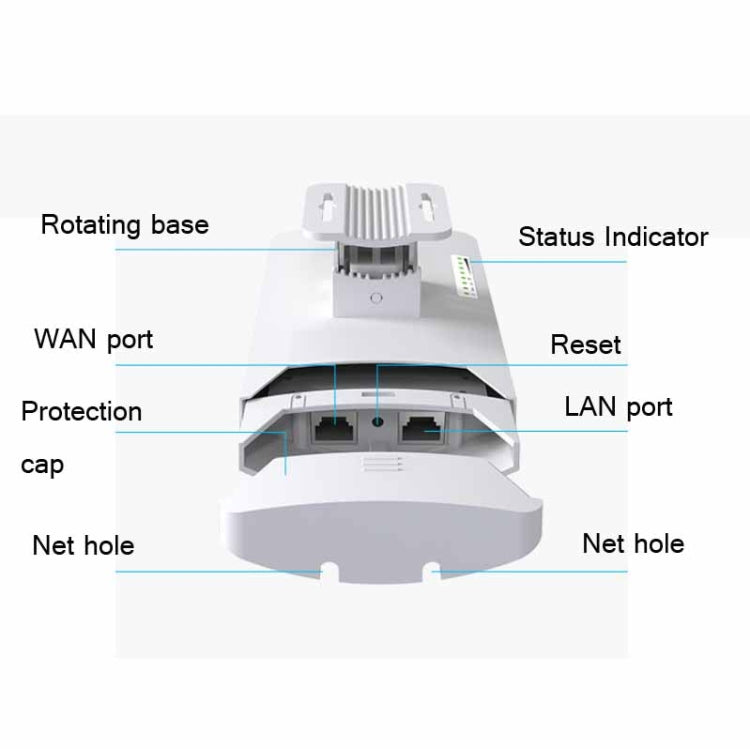

6. Physical interface: 1 10 / 100Mbps WAN RJ45 Ethernet port; 1 10 / 100Mbps LAN RJ45 Ethernet port; 1 RESET button
7. Indicator lights: 8 indicator lights
8. Power supply: 9-24V POE power supply
9. Power consumption: less than 8W
10. Protection level: 2KV protection; IP65 level
11. Installation method: pole installation, wall installation, bracket installation
12. Product size: 165x95x31mm
13. Product net weight: 156g

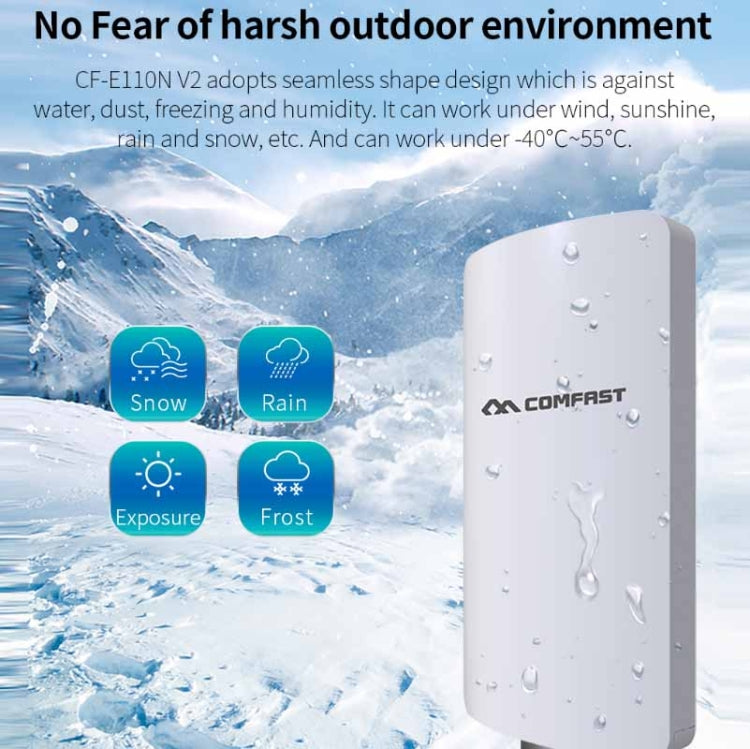

14. Use environment: working temperature: -40-55 degrees Celsius (hardware heating circuit); storage temperature: -50-75 degrees Celsius; working humidity: 10%-90%RH non-condensing; storage humidity: 5%-90%RH none Condensation
