PCIE 3.0 To USB 3.2 Extension Card Type-C Port Front Type-E Expansion Riser Card(PH68)

Features:

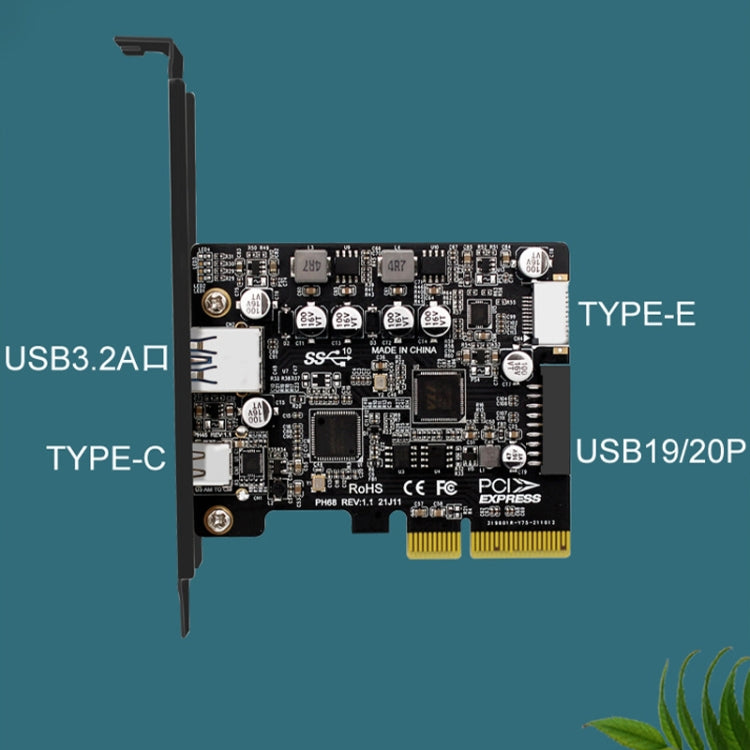

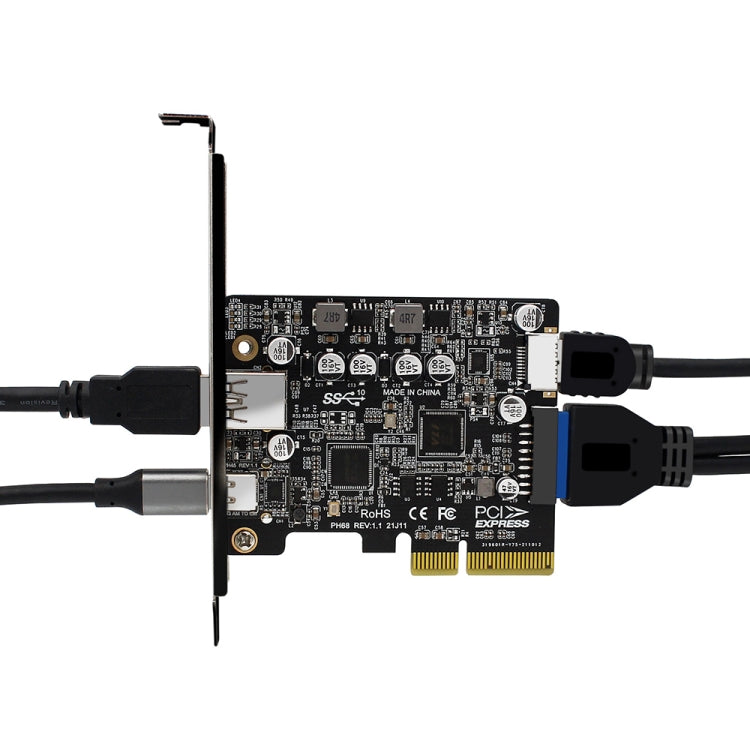

1. Comprehensive interface expansion: PCIE 3.0 to USB 3.2 expansion card has rear A port and Type-C interface, and front Type-E and 19/20PIN interface, providing users with multiple connection options for various USB devices.
2. Model Number: The model number of an expansion riser card represents its unique model and series, ensuring compatibility with its specific product line.
3. High-speed data transmission: The PCIE 3.0 to USB 3.2 expansion card is input through the PCIE x4 (X2) interface, compatible with X8/X16 slots, to achieve high-speed data transmission and stability. It is also compatible with various USB standards such as USB1.1, USB2.0, USB3.0, USB3.1, USB3.2 10G, etc., to meet the compatibility requirements of different devices.
4. Compliance with standards: The PCIE 3.0 to USB 3.2 expansion card complies with the basic specifications of PCI Express 3.0, ensuring reliable operation on the PCI Express bus. It is also compliant with the Extensible Host Controller Interface (XHCI) specification revision 1.0, ensuring interoperability and compatibility with host controllers.
5. Advanced Features: The expansion card has a USB PHY manufactured in an advanced CMOS process, which reduces power consumption while providing high efficiency. It supports firmware upgrades, allowing updates to access new features and performance improvements.

Product parameters:
1. Compatible with USB1.1, USB2.0; USB3.0; USB3.1; USB3.25G;
2. Comply with the basic specifications of PCI Express 3.0
3. Compliant with Extensible Host Controller Interface (XHCl) Specification Revision 1.0
4. The internal USB PHY adopts advanced CMOS technology to reduce power consumption
5. Support firmware upgrade
6. Input interface: PCI-E X4 (X2) compatible with X8/X16
7. Compatible system: Windows XP, Vista 7 (need to install the driver), Windows 8/10

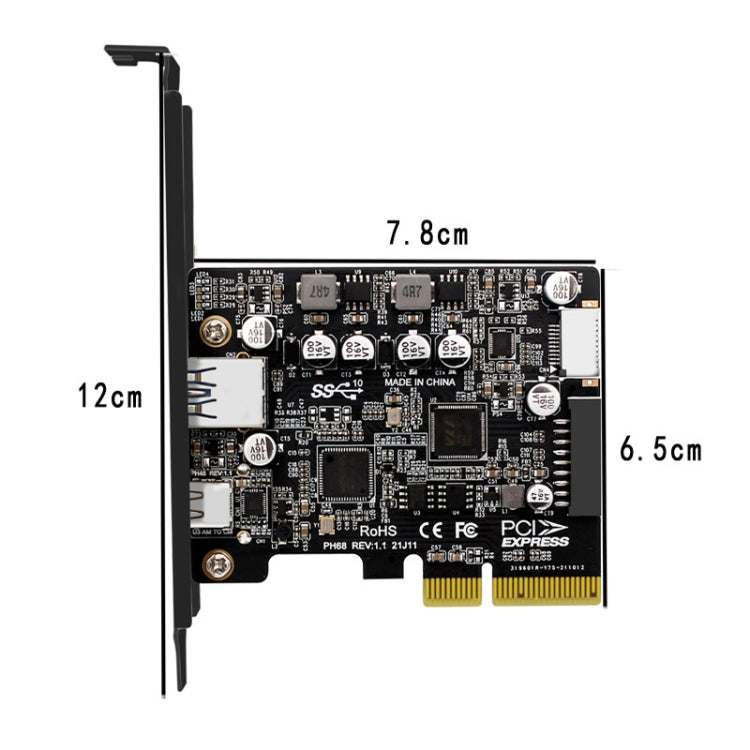

8. Product size: 12 x 7.8 cm
9. Weight: 45.8 grams
10. Packing: leather box

Notice:
1. Due to different monitors and light effects, the actual color of the item may be slightly different from the color shown on the picture!
2. Please allow 1-2cm measurement deviation due to manual measurement.
