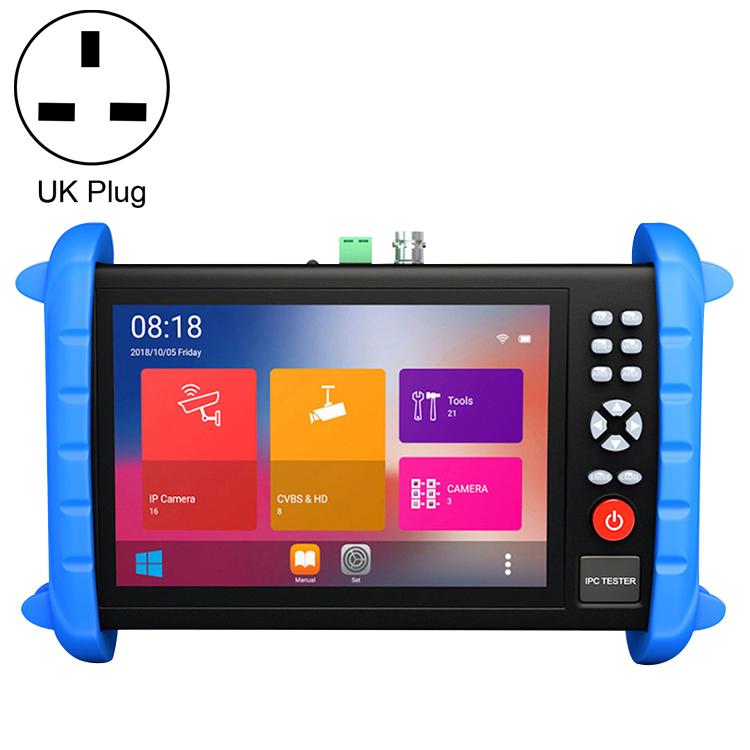

IPCXS-ACHT 6K Network Coaxial Simulation Engineering Video Surveillance Tester, Plug:UK Plug

Specifications:
1. 1920x1200 full-view IPS 7-inch display
2. 6K H265 IPC main stream test, supports up to 1200W

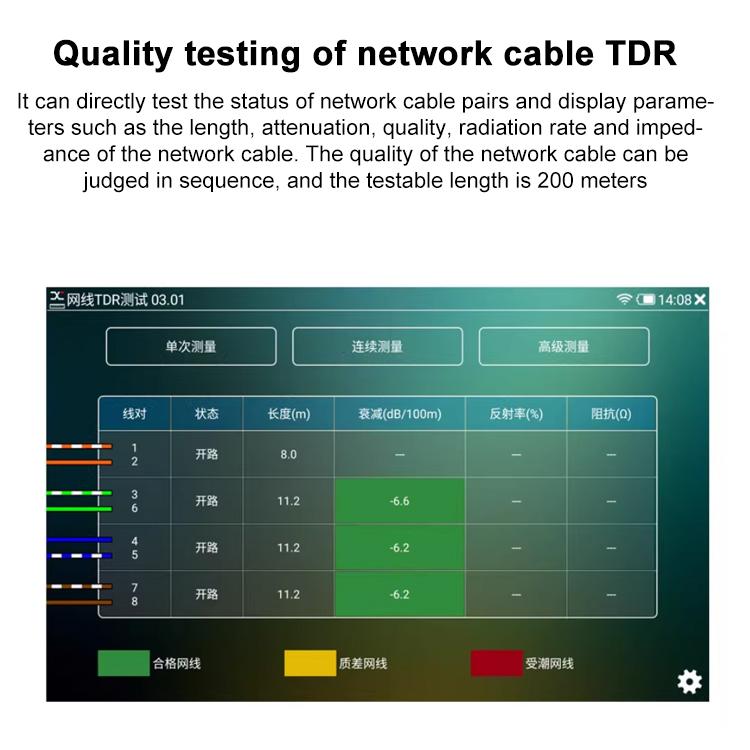

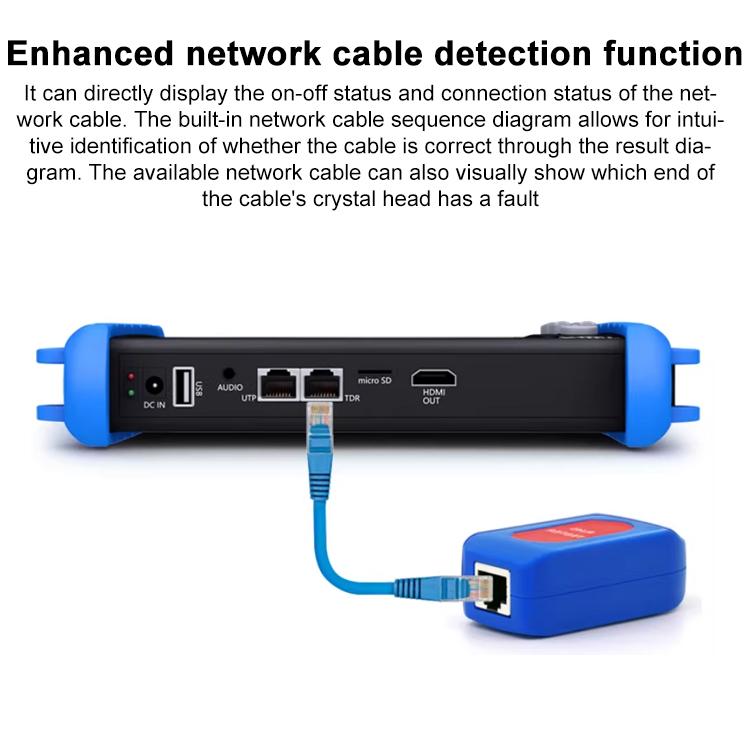

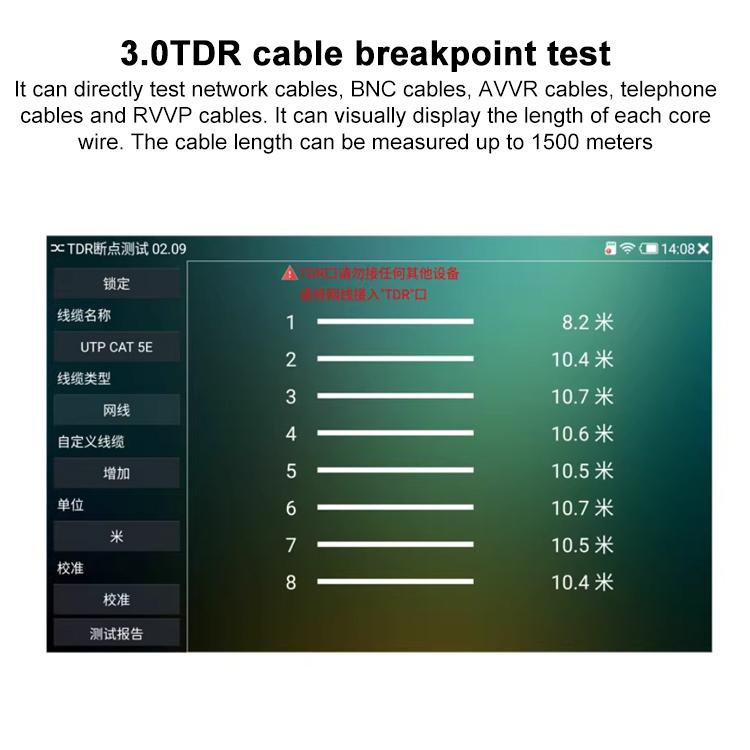

3. Network cable quality TDR breakpoint test, enhanced network cable pairing sequence test
4. Coaxial HD 4.0, TVI 8MP, CVI 8MP, AHD 8MP
5. HDMI HD input/output test
6. IP detection + ONVIF one-click video
7. Language: Supports Chinese and English

Camera Testing:

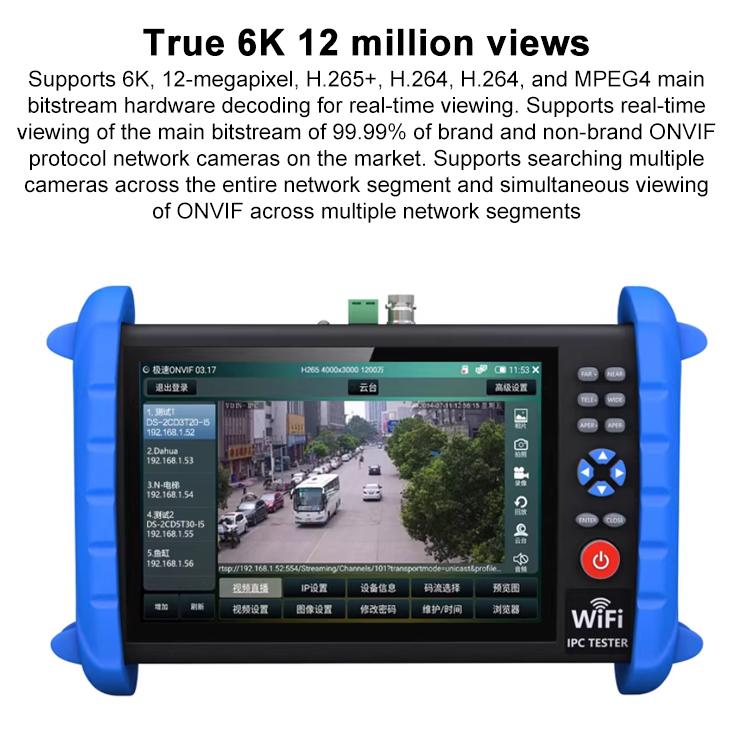

1. Supports H265/H264/MPEG4 network cameras, hardware decoding, supports network cameras with a maximum main stream resolution of 6K and 12MP resolution, providing clear and smooth images.
2. IP address detection across all network segments, one-click image output for ultra-fast ONVIF network cameras.
3. Hikvision testing tools support batch activation, batch IP address modification, username and password modification, and other parameters. New features include customizable channel names and customizable camera time display for greater convenience. 4. Dahua testing tools support batch activation of Dahua cameras, batch modification of IP addresses, and the provision of a reserved mobile phone number for password retrieval. It also includes customizable channel name modification and the ability to change usernames, passwords, and other parameters.
5. Multi-channel preview supports simultaneous preview of up to 16 cameras and one-click linking to ONVIF for image playback.
6. Supports IP address and channel name modification for all camera brands on the market.
7. Features include simulated video image display, PTZ PTZ control, image zoom, photo capture, video recording, and playback.

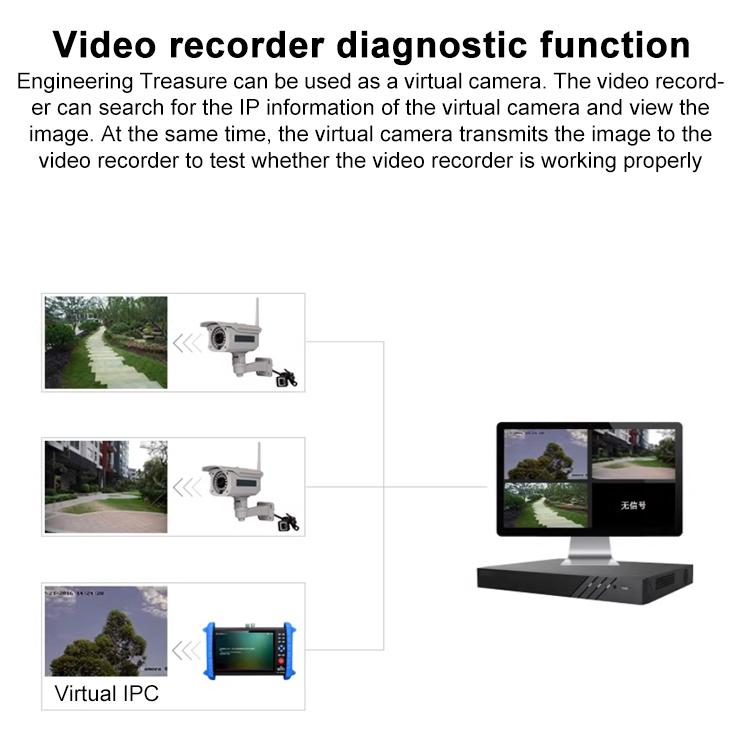

8. Virtual ONVIF camera function allows connection to a recorder as a virtual camera and can be used to test and inspect NVR recorders.
9. Supports lens simulation, image quality calculation, and convenient camera focus adjustment.
10. Dual-screen display supports simultaneous testing of network cameras and analog cameras.
11. Supports network PTZ control (ONVIF) with gesture controls such as up, down, left, and right swipes to control PTZ rotation.

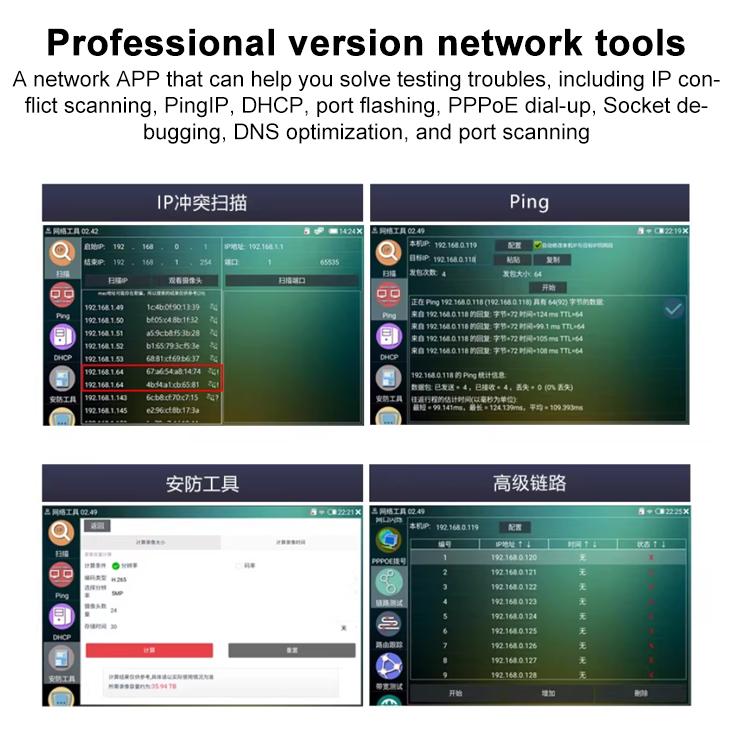

12. Network integration tools, including IP address scanning, PING, DHCP service, common security tools, network port blinking, PPPoE dialing function testing, advanced link testing, route tracing, bandwidth testing, and a socket debugger.
13. Supports RTSP playback of network video streams, with a maximum support of 1200W video pixel stream playback.
14. Supports coaxial HD 4.0, TVI8MP, CVI8MP, and AHD8MP camera image testing, coaxial video control and menu access, and supports taking photos, recording videos, zooming in, and playback; (IPCXS-ACHT)
15. Supports HDMI digital signal input, with a maximum resolution of 1080P 60Hz, and supports audio input, image display, recording, taking photos, and playback.

Power Functions:
1. Supports up to 12V/3A power output, with short-circuit and overcurrent protection.
2. Provides charging or temporary power for mobile phones, tablets, or USB-powered devices.
3. 24V/1A power output, providing temporary power for low-power PTZ cameras.
4. Standard PoE power output DC48V, maximum 25.5W, compliant with IEEE 802.3af standard.
5. PSE switch voltage, power supply sequence, and power detection.
