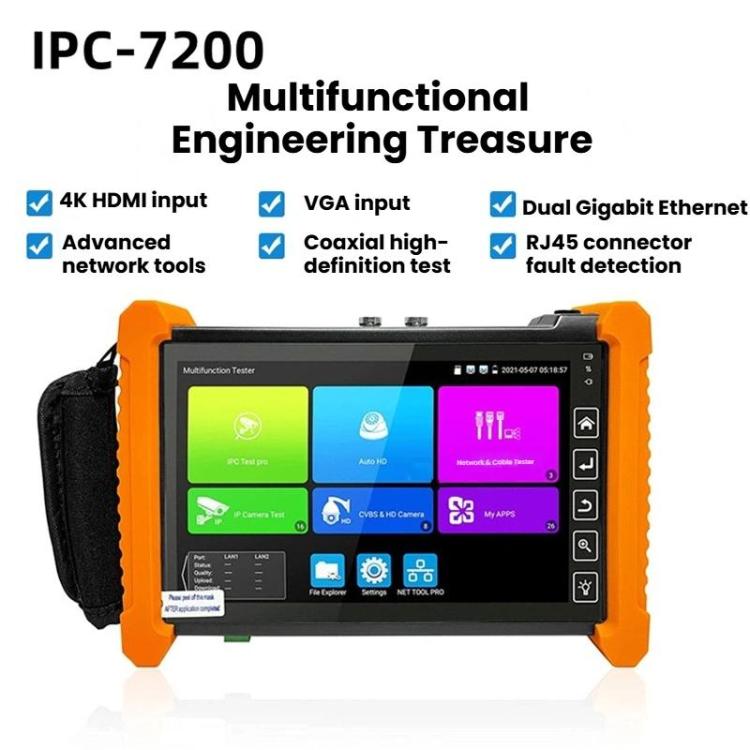

IPC-7200 7 Inch Network Coaxial AHD/CVI/TVI/SDI Video Surveillance Tester US Plug

1. 7 inch 1920x1200P full-view IPS screen with clearer and smoother display
2. H.265/H.265+ 4K main stream test, 1200W network camera test
3. Ultra-fast ONVIF, face/plate recognition, test report, channel name modification
4. Upgraded TVI5.0 audio test, TVI/CVI/AHD full 8MP test
5. 4K EX-SDI, 3G-SDI, HD-SDI 8MP camera test
6. Supports batch activation, IP modification, resetting password, video obstruction alarm, etc. by Hikvision and Dahua test tools
7. Added advanced network testing functions such as IP address conflict detection and switch port detection
8. Network cable wiring sequence detection, remote/medium/nearest error detection
9. Network cable TDR test, open/closed circuit, quality test
10. DC12V/3A, POE48V/25.5W, DC24V/2A, USB5V/2A power supply output
11. Supports HDMI signal output, maximum resolution 4K. Can output the current screen display content, and the output resolution can be switched between 1080P/720P
11. 4K 30-frame HDMI input, 2K 60-frame VGA input
12. Added Internet/local projection, supports remote control and voice intercom

Parameters
1. Display: 7 inch, IPS high-definition full-view capacitive touchscreen, resolution 1920x1200
2. Network ports: 10/100/1000M auto-sensing, RJ45. Dual gigabit Ethernet ports
3. WIFI: Built-in 2.4G wireless WIFI, maximum rate 150M, for receiving images from wireless network cameras, etc.
4. External power supply: DC 12V (2A)

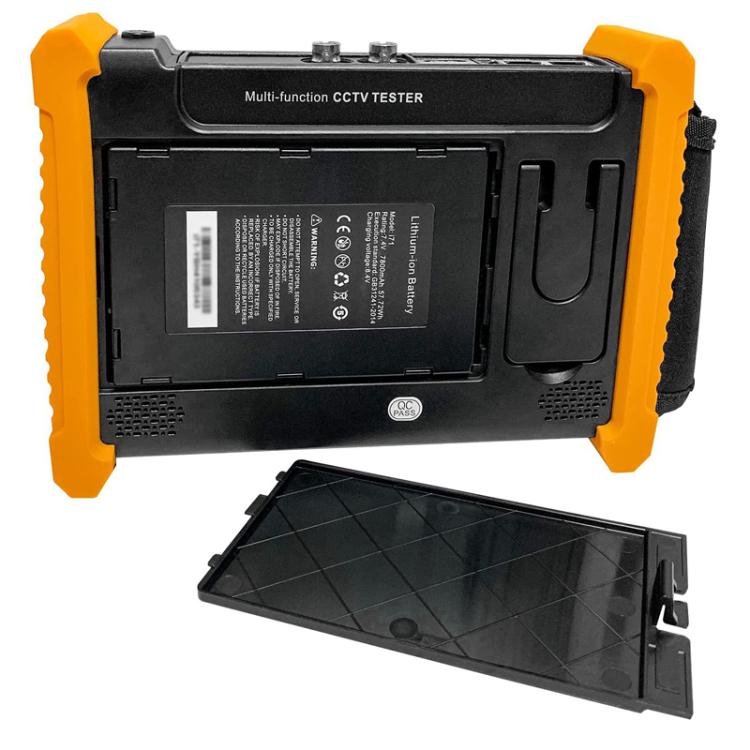

5. Battery power: built-in 7.4V polymer lithium battery, capacity 7800mAh
6. Charging: charging 4.5 hours, one charge can last for 11 hours of normal use
7. Operation settings: capacitive touchscreen, Chinese, Traditional Chinese, English, Polish, Italian, Korean, Russian, Spanish, French, Japanese, German, Turkish, Serbian, Czech, Portuguese, Vietnamese OSD menu, selectable
8. Automatic standby: off/5-30 minutes
9. Working temperature: -10 degrees Celsius --- +50 degrees Celsius
10. Working humidity: percent 30 - percent 90
11. Size: about 20.3 x 14.1 x 4.6 cm
12. Weight: about 920g
