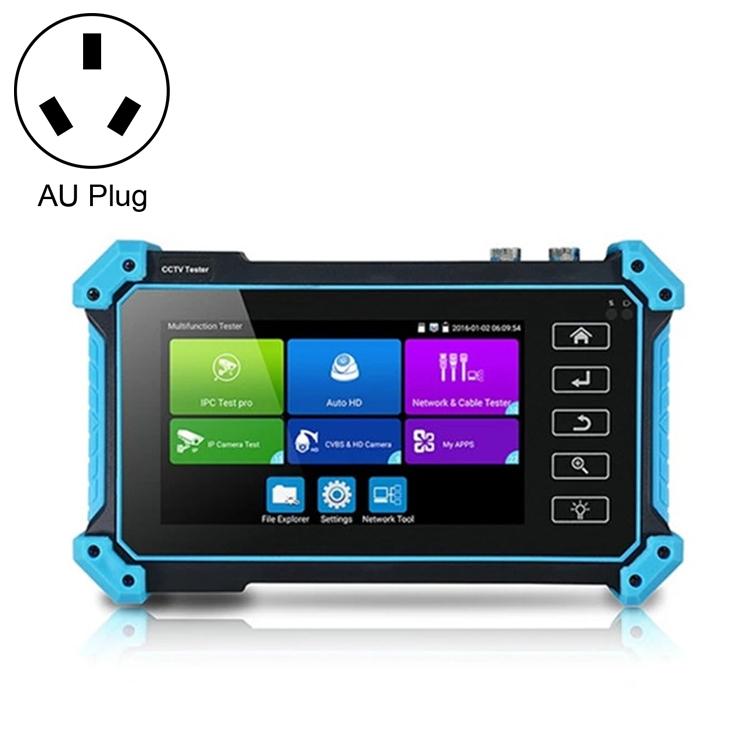

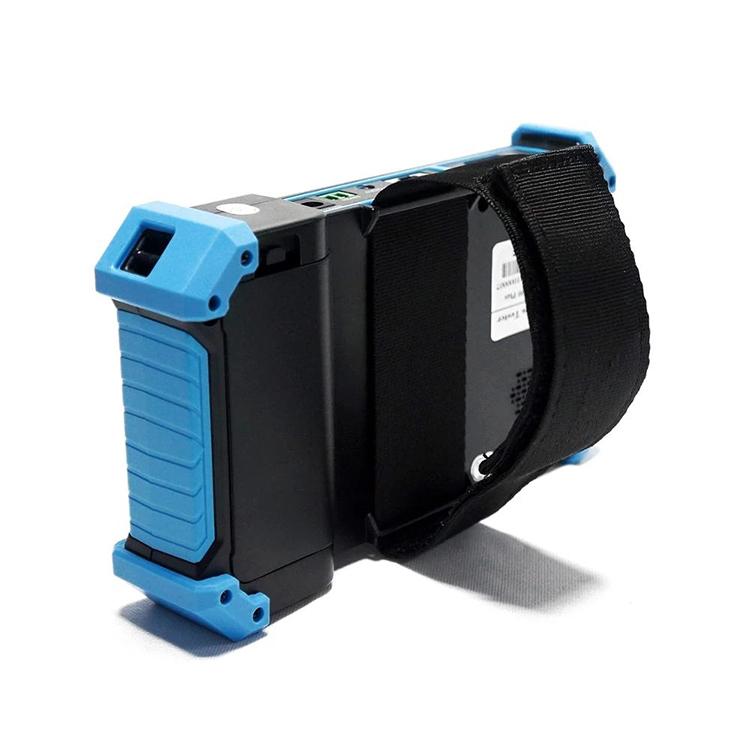

IPC-5200 Plus 4K Network Coaxial Simulation Engineering Video Surveillance Tester, Plug:AU Plug

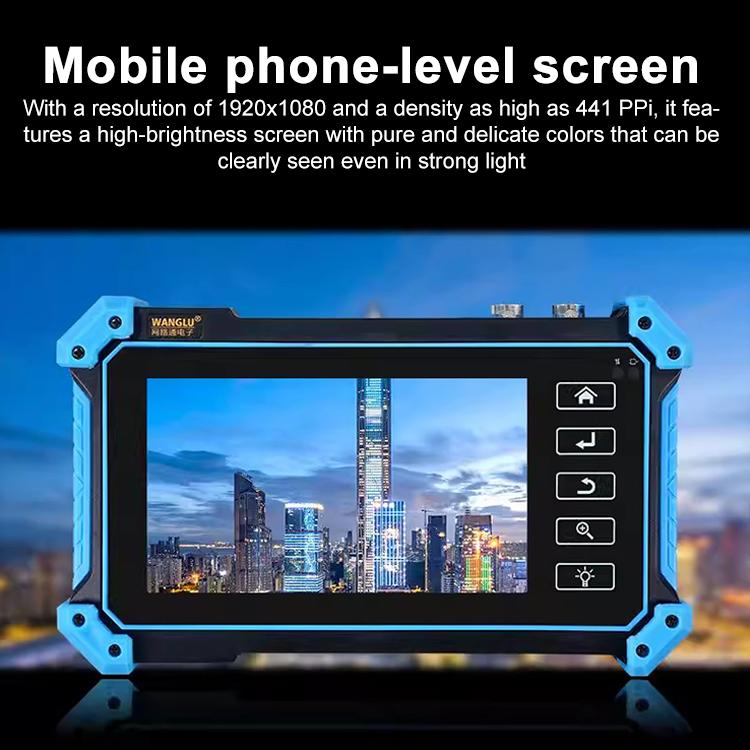

1. Display: 5-inch IPS HD full-view capacitive touchscreen, 1920x1080 resolution
2. Network Port: 10/100/1000M adaptive
3. WiFi: Built-in wireless WiFi, 150M speed, receives images from wireless network cameras, etc.
4. H.265 Main Stream Testing: Hardware decoding, supports H.265/H.264 main stream testing of camera images, maximum resolution 4K, can test 1200W cameras

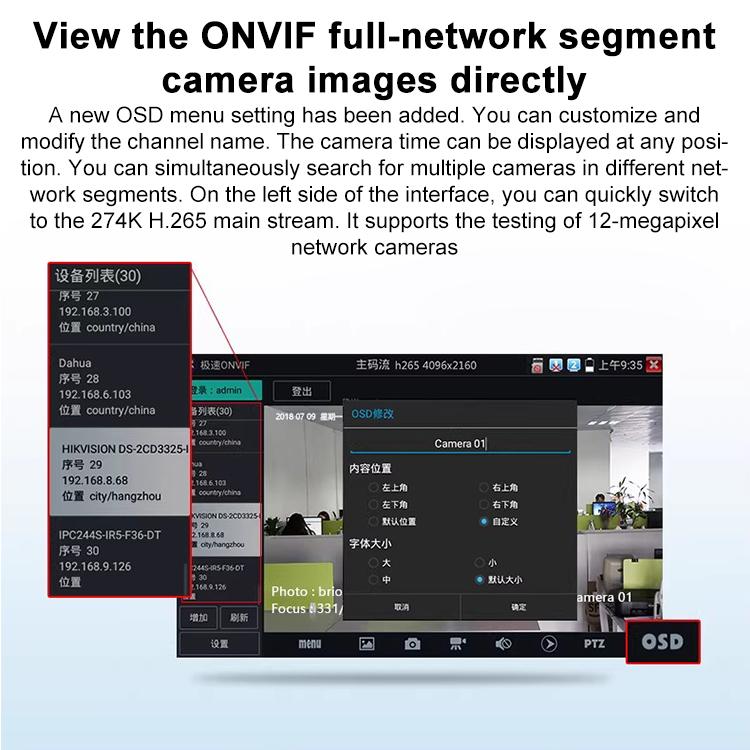

5. IP Camera Testing: Supports cross-network segment camera testing. Supports testing of ONVIF (with PTZ pan/tilt control) protocol cameras. Supports ACTi, Dahua, Hikvision, Samsung, Tiandy, KEDA, etc.
6. IP Discovery: Find camera IP addresses across the entire network segment.
7. High-Speed ??ONVIF: Automatically logs in and plays images; supports modifying IP addresses, channel names, and generating test reports.
8. Hikvision Testing Tool: Batch activation of Hikvision cameras, batch IP modification, custom channel name modification, H264/H265 switching, and modification of usernames, passwords, and other parameters.
9. Dahua Testing Tool: Batch activation of Dahua cameras, batch IP modification, custom channel name modification, and modification of usernames, passwords, etc.
10. AutoHD: AUTO HD automatically recognizes and displays images from AHD/CVI/TVI/CVBS cameras, with coaxial video control, menu navigation, etc.
11. TVI 4.0 Video Signal Testing: 1-channel TVI IN BNC input, supporting resolutions of 3840x2160p 15fps, 2592x1944P 12.5/20fps, 2688x1520p 15fps, and 2560x1440p. 18/25/30fps, 2048x1536p 18/25/30fps, 1920x1080p 25/30fps, 1280x720p 25/30/50/60fps
12. CVI4.0 Video Signal Test: 1 CVI IN BNC input, resolution supported: 3840x2160p 12.5/15fps, 2560x1440p 25/30fps, 1920x1080p 25/30fps, 1280x720p 25/30/50/60fps
13. AHD4.0 Video Signal Test: 1 AHD IN BNC input, maximum resolution supported: 3840 x 2160P 15 FPS, 2592x1944P 12.5/20fps, 2560x1440p 15/25/30fps, 2048x1536p 18/25/30fps, 1920x1080p 25/30fps, 1280x720p 25/30/50/60fps
14. SDI2.0 Video Signal Test: 1 HD-SDI/EX-SDI IN BNC input, supporting resolutions of 720p 25/30/50/60fps, 1080p 25/30/50/60fps, 1080i 50/60fps, EX-SDI: 2560x1440P 25/30FPS, 3840x2160P 25/30FPS

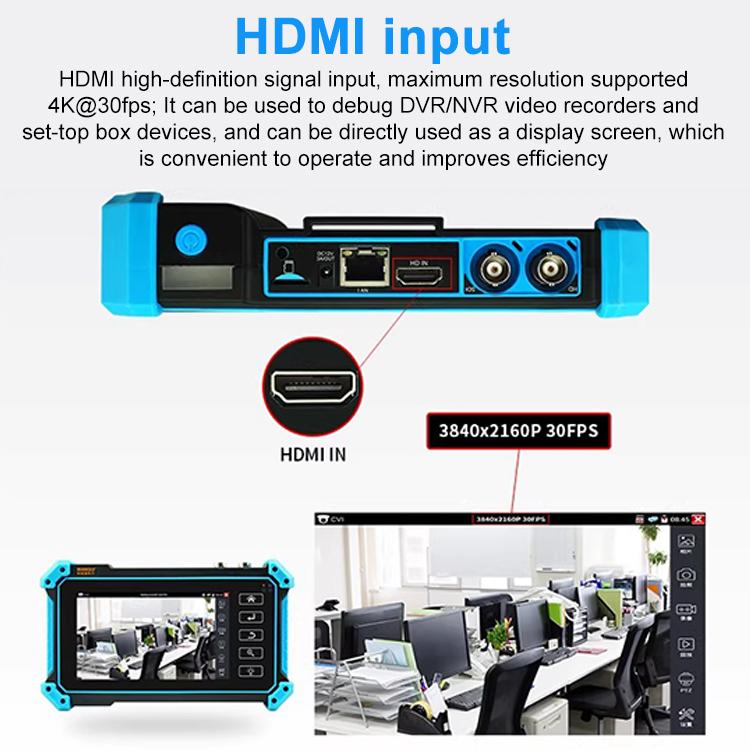

15. HDMI Input: 1 HDMI input, supports audio input, supporting resolutions of 4K 3840x2160, 2K 2560x1440P/1920x1080p/1920x1080/720x480p/720x576p/1280x720p/1024x768p/1280x1024p/1280x900p/1440x900p etc.

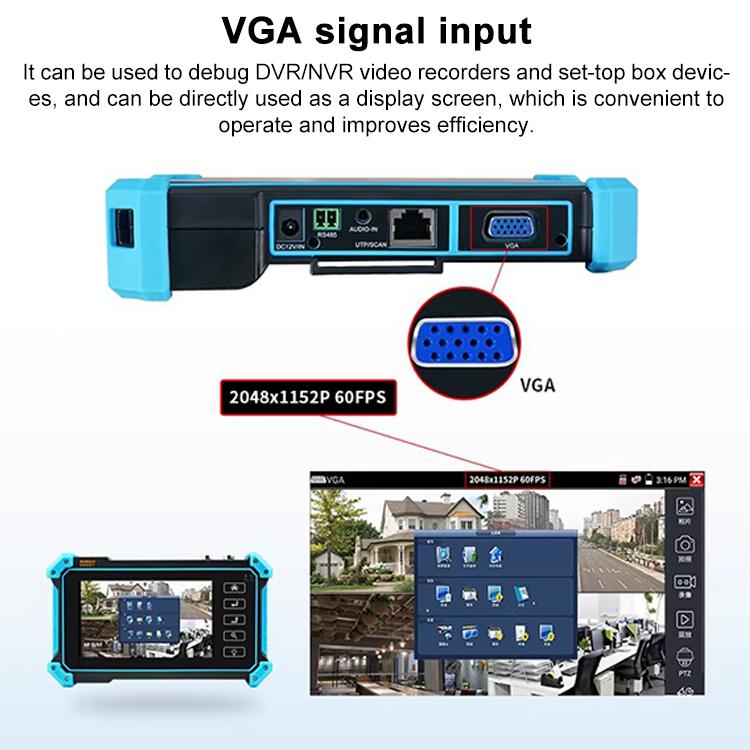

16. VGA Input: One VGA signal input, can be used as a monitor. Supported resolutions are as follows: 2048x1152P 60FPS, 1920x1200P 60FPS, 1920x1080P 60FPS, 1792x1344P 60FPS, 1680x1050P 60FPS, 1600x1200/900P 60FPS/1440x900P 60FPS, 1360x768P 60FPS, 1280x1024/960/800/768/720P 60FPS, 1152x870P 60FPS, 1024x768P 60FPS, 800x600P 60FPS, 640x480P 60FPS
17. Video Image Magnification: Supports analog high-definition video image magnification, IP network camera image magnification and movement.
18. Video Capture, Recording, Photo Browsing, and Video Playback: Capture and record test footage, supports saving with Chinese names, and supports photo browsing and video playback.

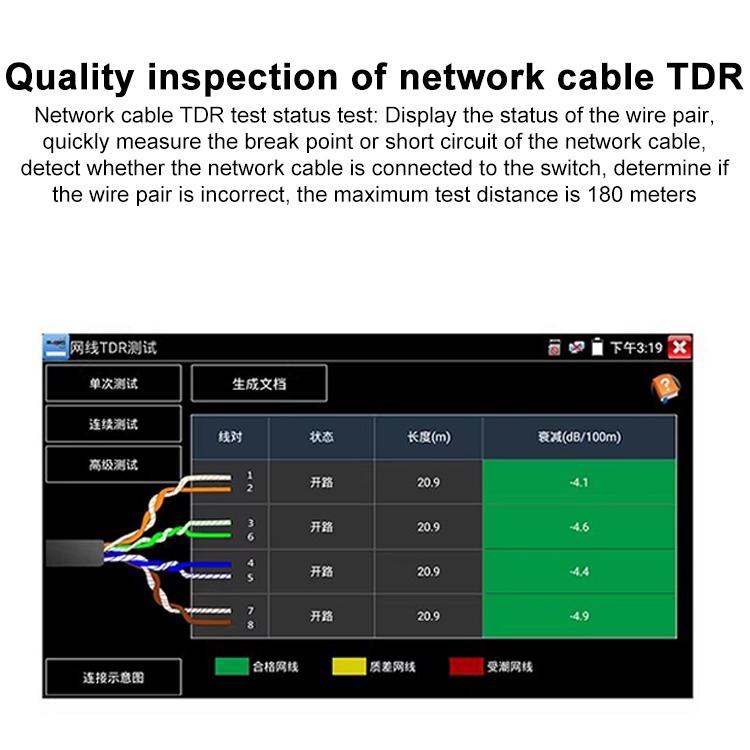

19. Network Cable TDR Test: Tests network cable pair status, length, attenuation, reflectivity, impedance, gigabit camera latency deviation, and other parameters.
20. PoE Power Output: 48V PoE power output, maximum power 25.5W.
21. DC 12V Power Output: Outputs 12V with a maximum DC current of approximately 3A, providing temporary power for cameras.
22. Drop-down Menu: PoE power switch, instrument IP settings, WLAN switch, LAN port traffic monitoring, and other functions can be quickly activated for testing.
23. Audio Test: Input one audio signal to test sound quality; recording and saving are supported.
24. External Storage: Supports external SD cards up to 32GB for storing videos, photos, and other files.
25. PTZ control test: Supports RS485 bus, speed 600-115200bps. Supports over 30 protocols including Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan.
26. UTP Cable Test: Tests any two or more wired network cables, detecting which end is faulty and displaying the connection sequence and cable number on the screen.
27. Protocol Code Capture: Built-in serial port tool receives and displays RS485 protocol code data from control devices, and can also send hexadecimal codes.
28. Power Management: Displays 12V power input and output voltage and power.

Power Supply
1. External Power Supply: DC 12V 2A
2. Battery Powered: Built-in 7.4V polymer lithium battery, 3350mAh capacity
3. Charging: 3-4 hours of charging provides 5 hours of normal use.

System Parameters
1. Operation Settings: Capacitive touchscreen, Chinese and English OSD menus
2. Automatic Standby: Off/5-30 minutes
3. Operating Temperature: -10~50 degrees Celsius
4. Operating humidity: 30%-90%
5. Dimensions: 183mm x 110mm x 36.5mm
6. Weight: 0.32kg
