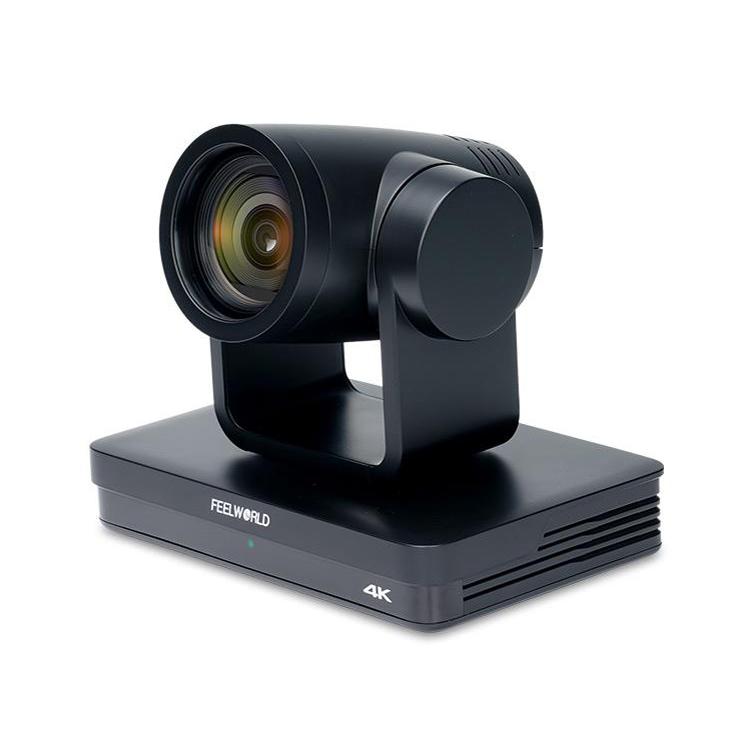

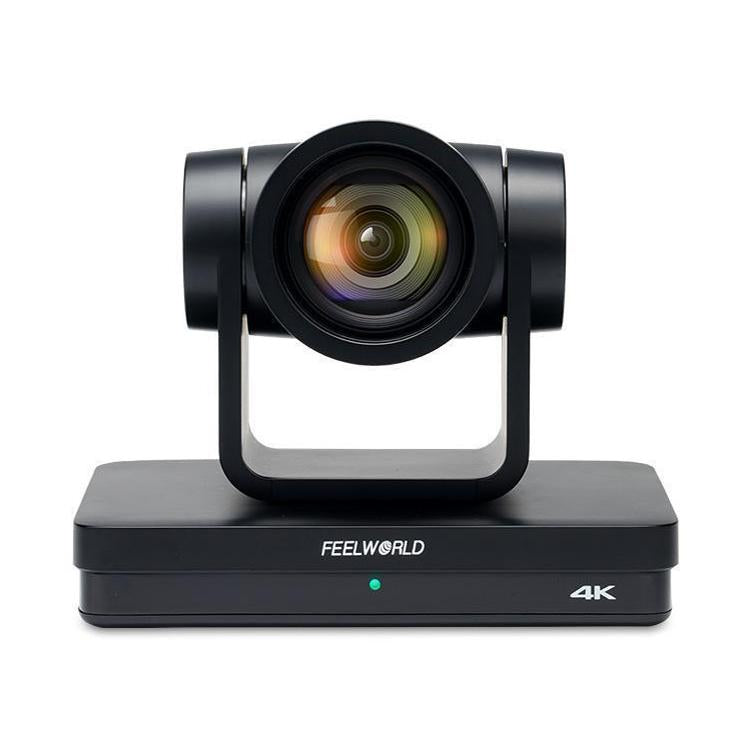

FEELWORLD UHD4K12X 4K PTZ Camera 12X Optical Zoom, Auto Focus SDI HDMI USB IP Remote Control (EU Plug)

Features
1. 8.51M megapixel high quality SNY CMOS sensor
2. Up to 4K30fps , presenting ultra clear and vivid image
3. 12X optical zoom lens and 70 degrees wide angle lens
4. Simultaneous SDI, HDMI, USB3.0, IP Streaming video out, easily for professional video production
5. PoE(Power over Ethernet) supported
6. Auto focus, smart frame capture everyone
7. Supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
8. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
9. High speed and silent pan/tilt, capture all the actions
10. Multiple control protocol and network protocol
11. Support real-time AI tracking
12. Ideal for online education, live streaming, video conference, Tele-medicine, etc.

Camera Parameters
1. Model: UHD4K12X
2. Sensor: 1/2.8 inch high quality CMOS sensor
3. Effective Pixels: 8.51 megapixel, 16:9
4. View Angle: H: 6.5 degree N ~ 70.9 degree W
5. Iris: F1.6 ~ F2.8+/-5%
6. Digital Zoom: 15X
7. Optical Zoom: 12X
8. Minimum Illumination: 0.5Lux(F1.8, AGC ON)
9. DNR: 2D & 3D
10. White Balance: Auto, Manual, One-push, Specified Color Temperature
11. Focus: Auto, Manual, One-push
12. Exposure: Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
13. Iris Mode: F1.8 ~ F11, CLOSE
14. Shutter Speed: 1/25~1/20000
15. BLC: On/Off
16. Dynamic Range: Off, 1 ~ 8
17. Video Adjustment: Brightness, Chromaticity, Saturation, Contrast, Sharpness, Black And White Mode, Gamma Curve
18. SNR: Greater than 50dB

Video Signal
1. HDMI: 4KP30/25,1080P60/59.94/50/30/29.97/25,720P60/59.94/50
2. SDI: 1080P30/29.97/25
3. USB Main Stream: YUY2/NV12:1920 x 1080/1280 x 720/1024 x 576/800 x 600/800 x 448/640 x 360/480 x 270/320 x 180 10/5fps
4. USB Main Stream: MJPG/H264:3840*2160/1920 x 1080/1600 x 896/1280 x 720/1024 x 576/960 x 540/800 x 600/800 x 448/720 x 576/720 x 480/640 x 360/640 x 480/480 x 270/352 x 288/320 x 240 30/25/20/15/10/5fps
5. USB Sub-stream: YUY2/NV12:1280 x 720/1024 x 576/800 x 600/800 x 448/640 x 360/640 x 480/480 x 270/320 x 180 30/25/20/15/10/5fps
6. USB Sub-stream: MJPG/H264: 1920 x 1080/1600 x 896/1280 x 720/1024 x 576/960 x 540/800 x 600/800 x 448/720 x 576/720 x 480/640 x 360/640 x 480/480 x 270/352 x 288/320 x 240 30/25/20/15/10/5fps

Specifications 2
Input/output Interface

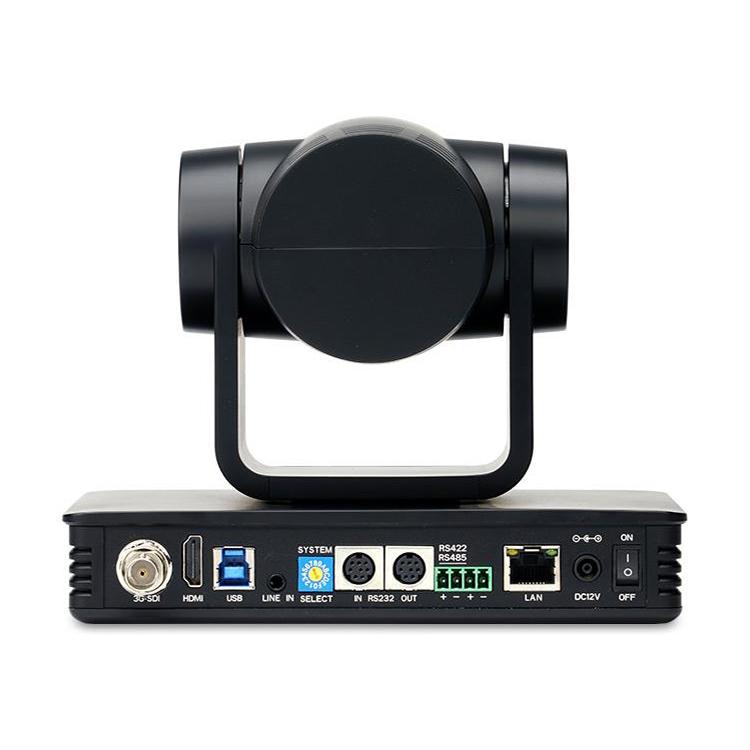

1. Interface: HDMI, SDI, LAN(POE), USB3.0, A-IN, RS232-IN, RS232-OUT, RS422(Compatible with RS485), DC12V Power Supply, Dial Switch, Power Switch
2. Video Output: HDMI, 3G-SDI, USB3.0, LAN(support PoE)
3. Video Compression Format: LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12
4. Audio Interface: Double track 3.5mm linear input
5. Audio Compression Format: AAC, MP3, G.711A
6. LAN Interface: 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output
7. Control Interface: RS232-IN, RS232-OUT, RS422 compatible with RS485
8. Control Protocol: VISCA/Pelco-D/Pelco-P
9. Serial Port Communication Protocols: VISCA/Pelco-D/Pelco-P
10. USB Communication Protocols: UVC???Video Communication Protocol???, UAC???Audio Communication Protocol???
11. Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote reboot, remote reset
12. Power Supply: HEC3800 Power Socket(DC12V)

PTZ Parameters

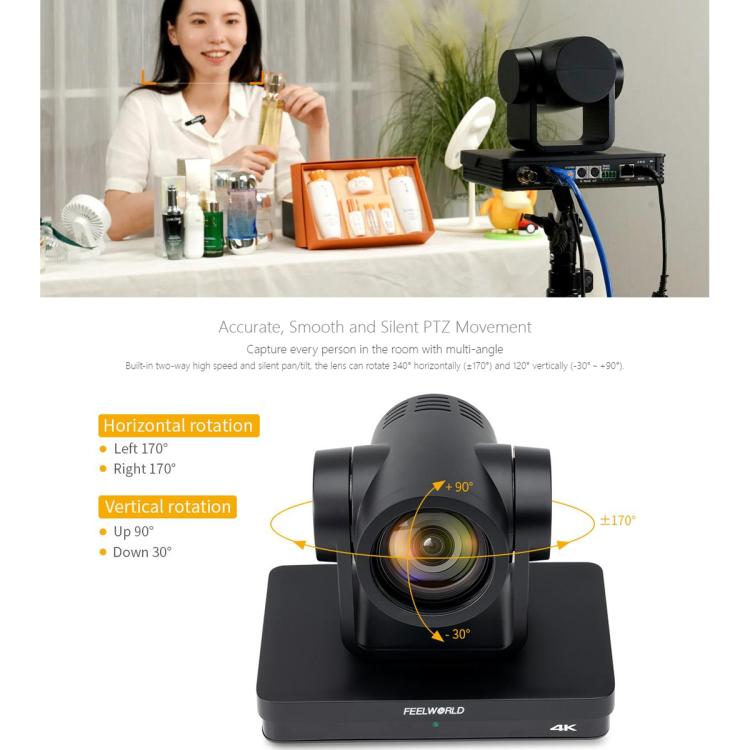

1. Pan Rotation: -170 degrees???+170 degrees
2. Tilt Rotation: -30 degrees???+90 degrees
3. Pan Control Speed: 0.1 ???60 degrees/sec
4. Tilt Control Speed: 0.1???30 degrees/sec
5. Preset Speed: Pan: 60 degrees/sec, Tilt: 45 degrees/sec
6. Preset Number: 255 presets(10 via remote control)

Other Parameters
1. Input Voltage: 12V/1A
2. Input Current: Less than 1A
3. Power Consumption: Maximum: 12W
4. Stored Temperature: -10 degree C???+70 degree C
5. Storage Humidity: 20%???95%
6. Working Temperature: -10 degree C???+50 degree C
7. Working Humidity: 20%???80%
8. Dimension (W x H x D): 181mm x 115mm x 149mm

Package List
1. PTZ Camera x 1
2. Remote Control x 1
3. USB3.0 Cable x 1
4. RS232 Control Cable x 1
5. RS422 Terminal Block x 1
6. Power Adapter x 1
7. Manual x 1
