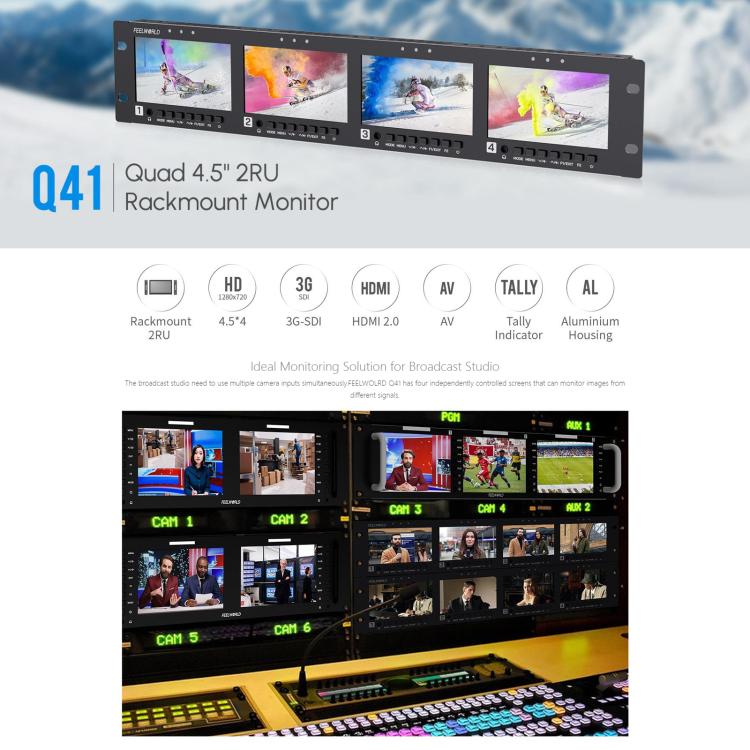

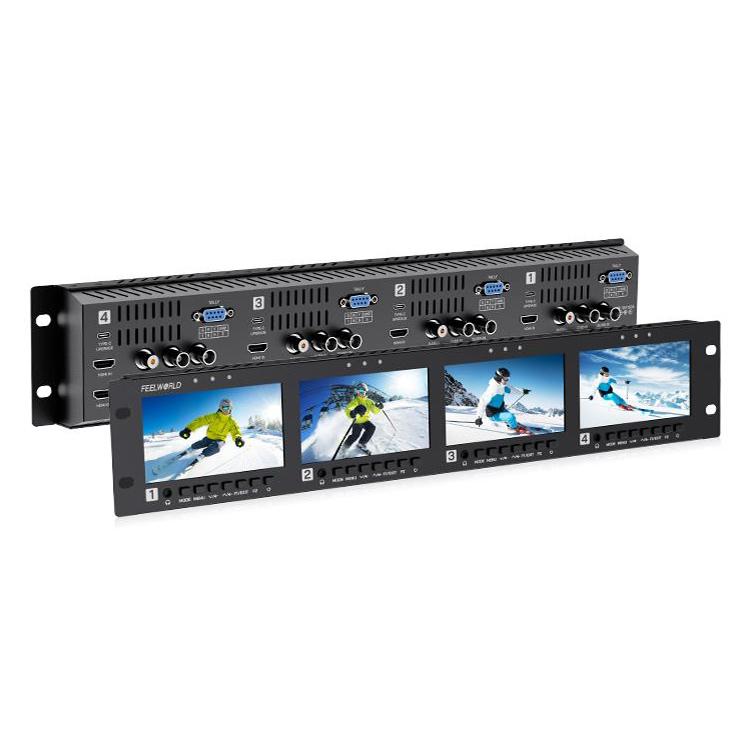

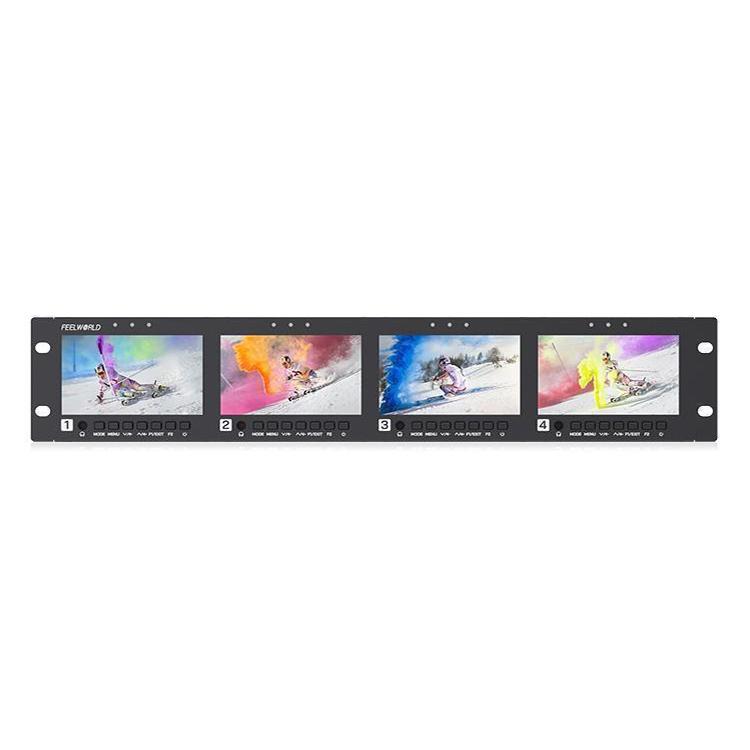

FEELWORLD Q41 Quad 4.5 inch 2RU Rackmount Monitor 3G-SDI 4K HDMI-compatible AV Input and Output, UK Plug(Black)

Display Spec.
1. Model: Q41
2. Screen Size: 4.5 inch x4
3. Resolution: 1280x720 pixels
4. Dot pitch: 0.0771（H)x0.0771(V) mm
5. Aspect Ratio: 16:9
6. Brightness: 350cd/m2
7. Contrast Ratio: 1200:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

Input (Each LCD)
1. 1 x BNC: 3G-SDI
2. 1 x HDMI-compatible: HDMI-compatible 2.0
3. 1 x BNC: Video
4. 2 x RCA: Audio(L/R)

Output (Each LCD)
1. 1 x BNC : 3G-SDI
2. 1 x HDMI-compatible: HDMI-compatible 2.0
3. 1 x BNC: Video

Audio (Each LCD)
Audio Out: Stereo Headphone x 1

SDI Support Format
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI-compatible Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 3840x2160p (60/50/30/29.97/25/24/23.98)
6. 4096x2160p (60/50/30/29.97/25/24/23.98)

General

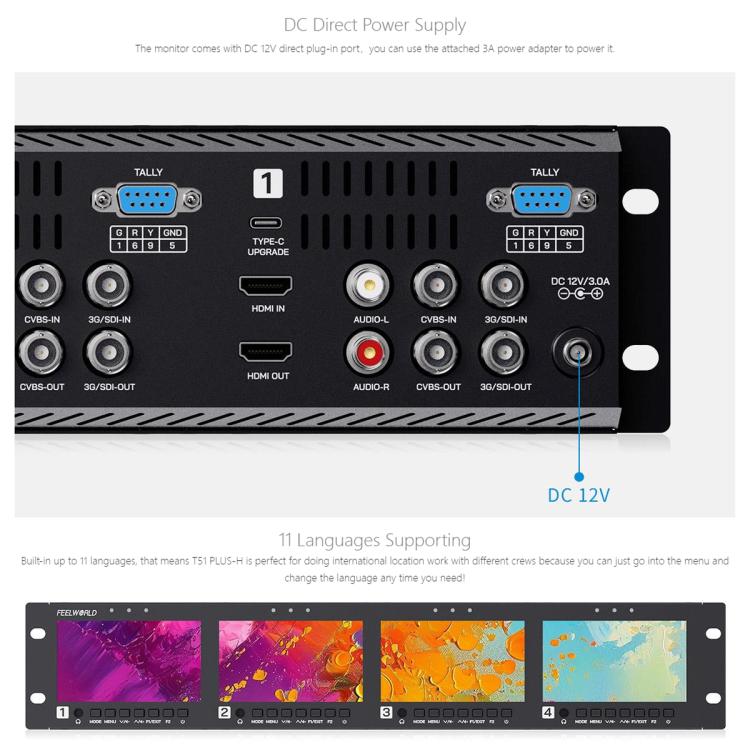

1. Input Voltage &Current: DC 12V/3A
2.Power Consumption: Less than or equal to 32W
3. Power Connector: DC
4. Working Temperature: -10 degree C~50 degree C
5. Storage Temperature: -20 degree C~60 degree C
6. Install Way: Rackmount
7. Unit Size: 482.5x87.5x35.8 mm
8. Unit Weight: 1832g

Advanced Features

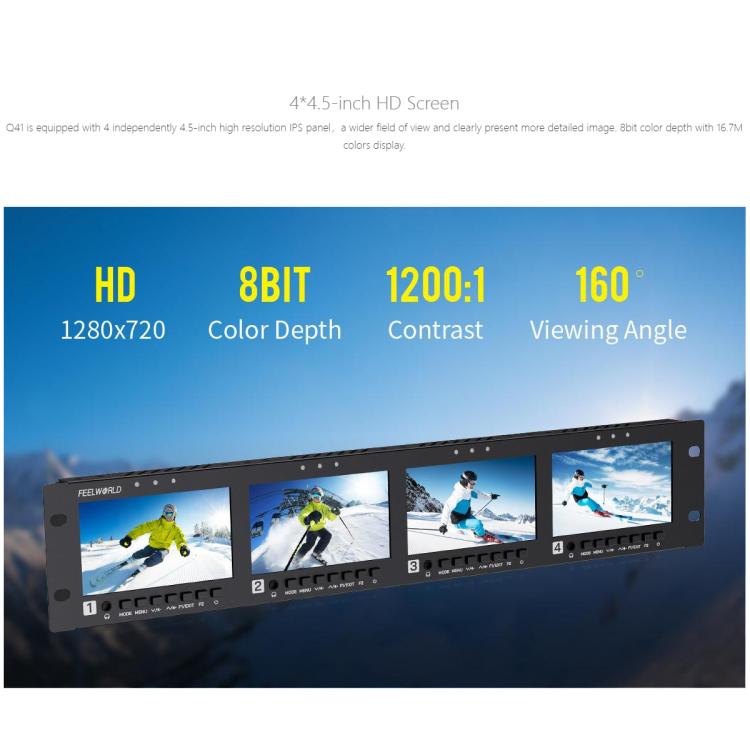

1. HD1280 IPS, view details with confidence

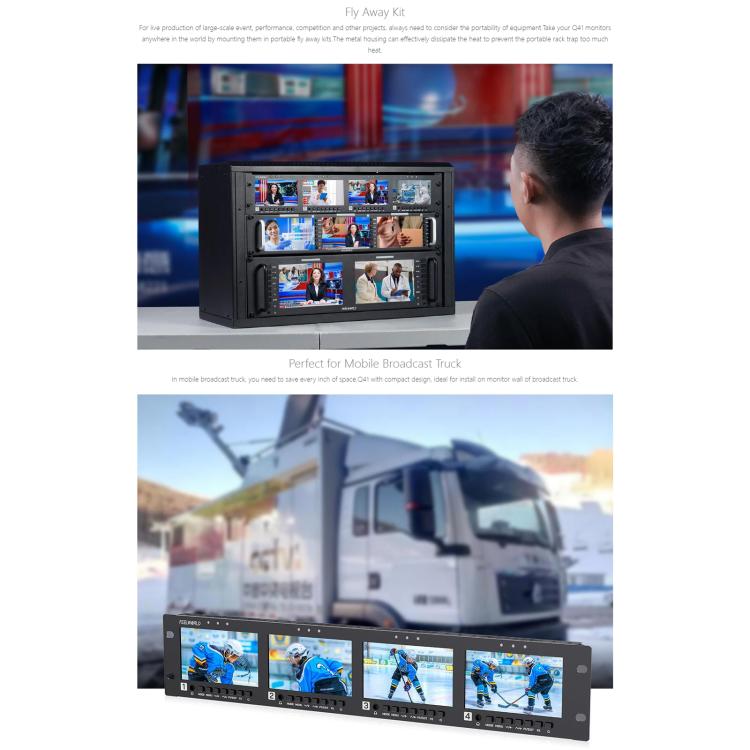

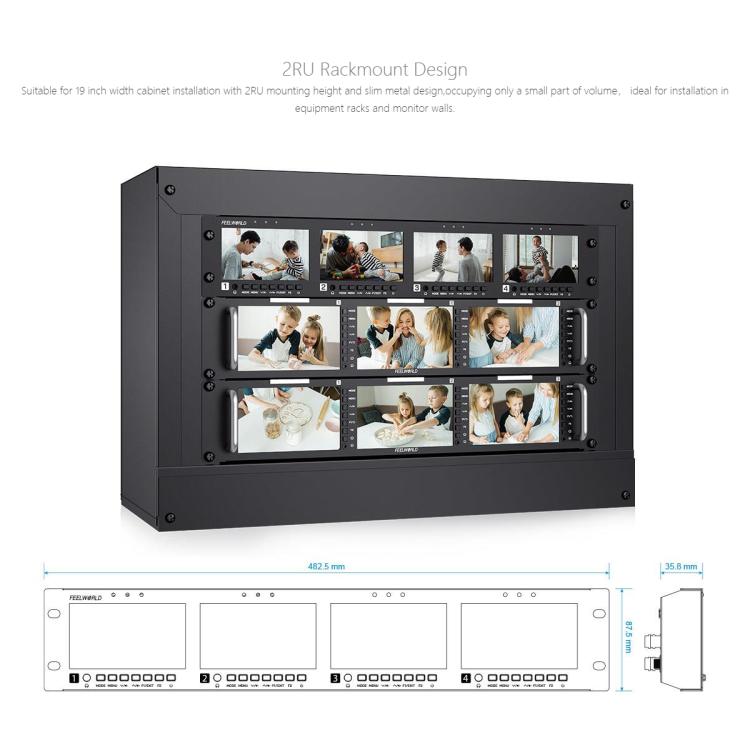

2. Quad 2RU rackmount design, compact thin and lightweight design, which make it suitable for installing where the space is limited and also could be installed in the standard 19-inch rack.

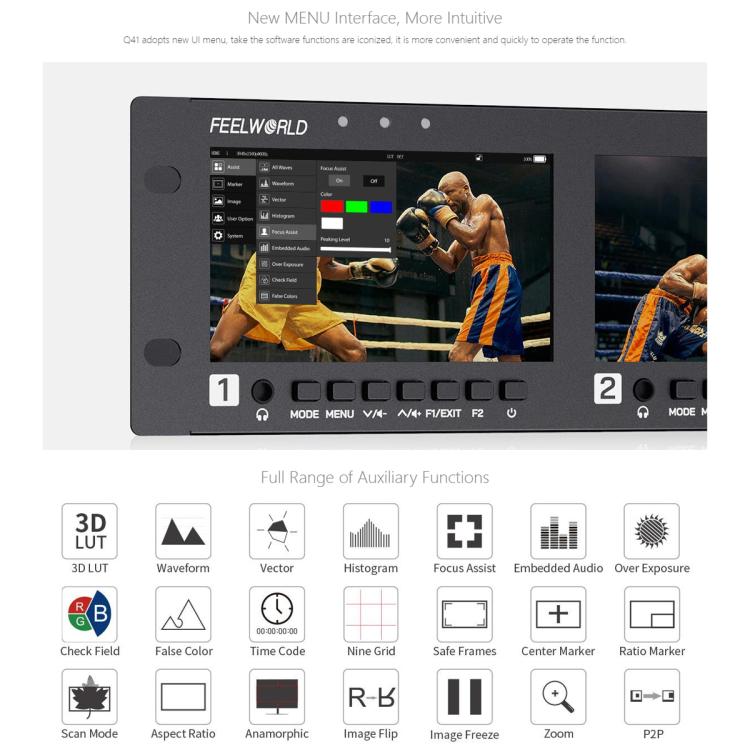

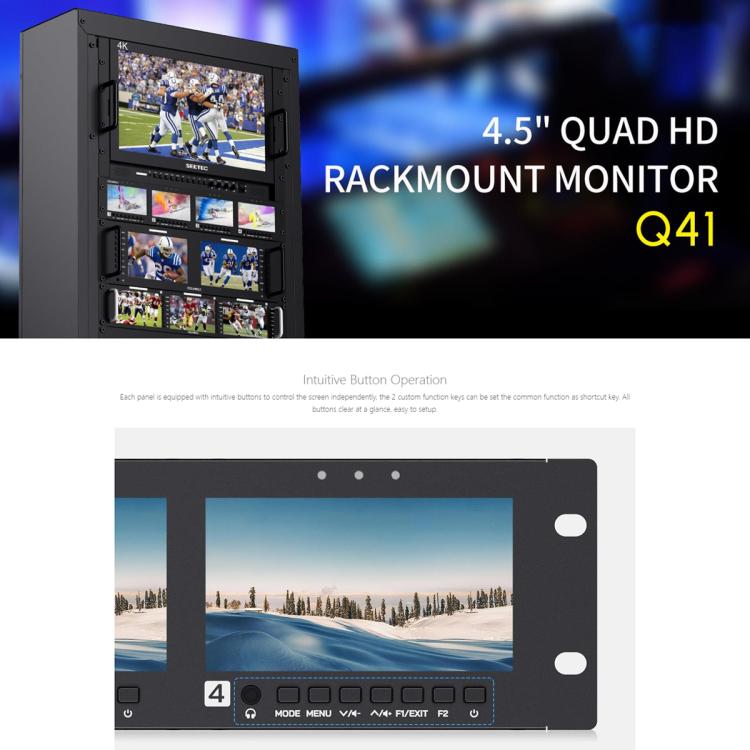

3. Intuitive button operation, easy to setup.
4. Three-color Tally indicator, enhance team cooperation

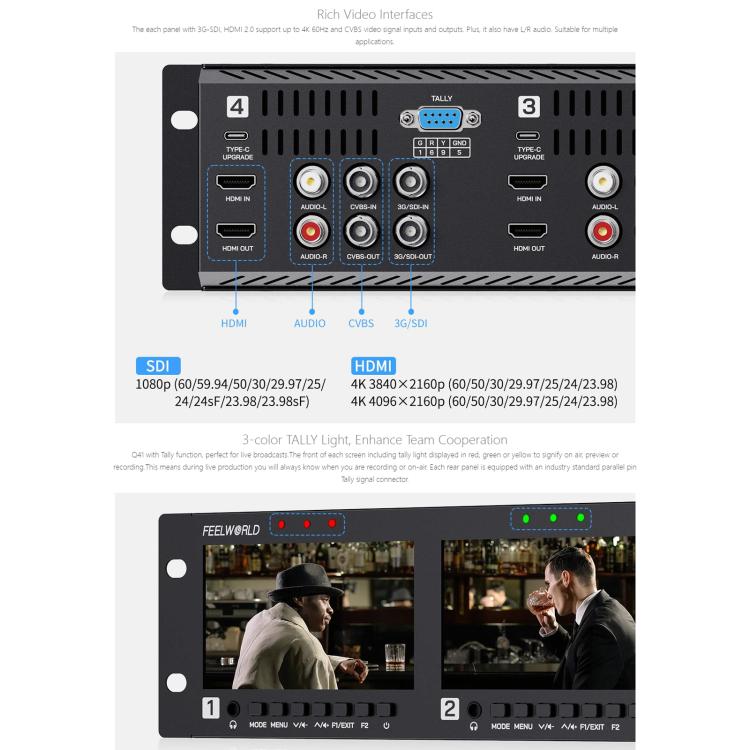

5. 3G-SDI, HDMI, Video, Audio(L/R) and 3G-SDI, HDMI, Video loop-through output
6. 3.5mm headphone jack output

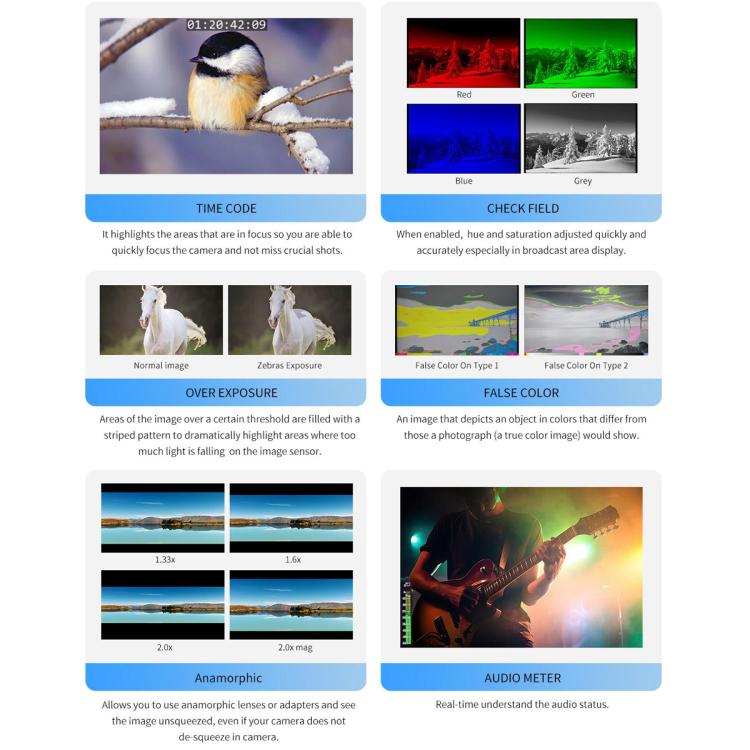

7. Special Features:

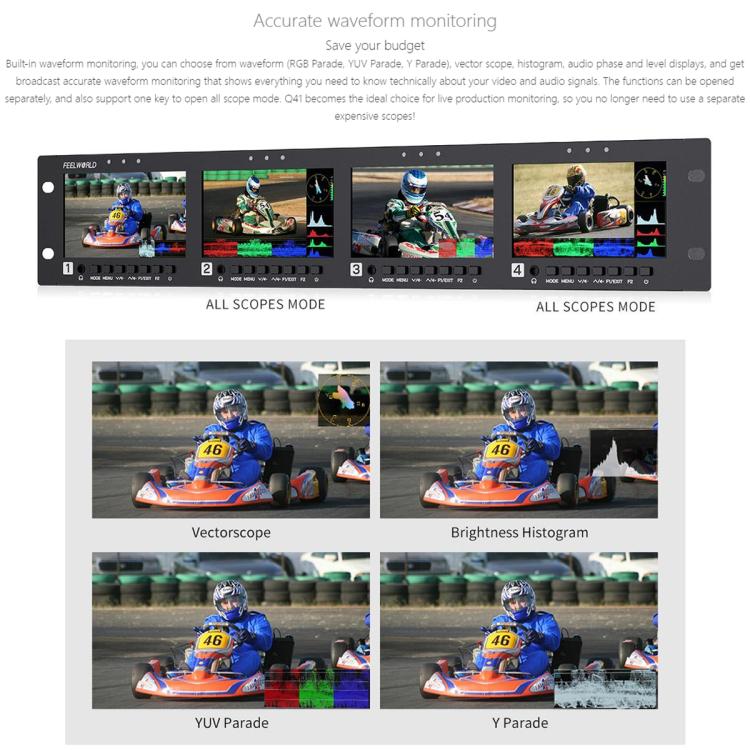

Wavefrom (RGB, YUV, Y)
Vector scope
Histogram (RGB1, RGB2, Y)
Focus Assist(Red, Green, Blue), you can adjust the peaking level after turning on（1～10）
Embedded Audio
Over Exposure (you can adjust the exposure level after turning on 10~100）
Check Field (Red, Green, Blue, Mono)
False Colors
Time Code (only under SDI signal with LTC, VITC modes)
Nine Grid
Safe Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
Center Marker
Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
Scan Mode (Under Scan, Over Scan)
Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User 1.20x~2.00x)
Image Flip (Horizontal, Vertical, Hor&Ver)
Image Freeze
Zoom Mode (2X, 4X, 9X, 16X, User 100%~200%)
Pixel to Pixel

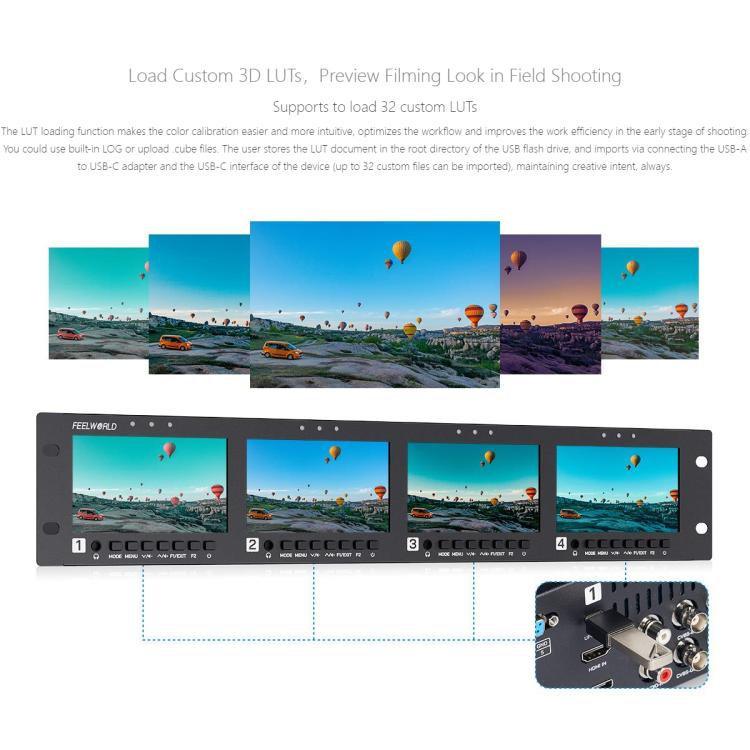

3D-LUT (built-in SLOG2, SLOG3, LOGC, VLOG; can be upload 32 custom LUT)
Color Temp. (5600K, 6500K, 9300K, User)


Packaging List:
1. Monitor x 1
2. 3A Power Adapter x 1
3. Tally Kit x 4
5. USB-A to USB-C Adapter x 1
5. Manual x 1
