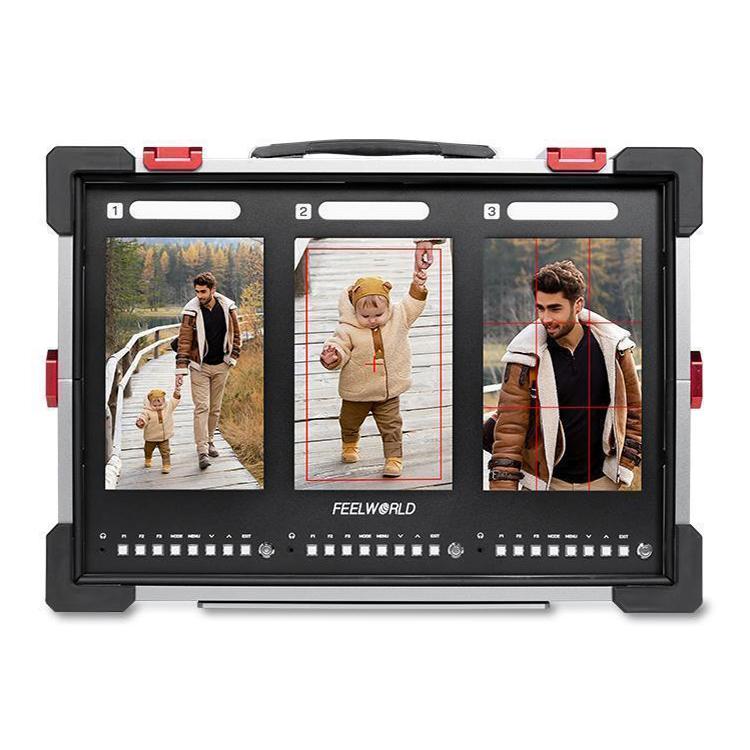

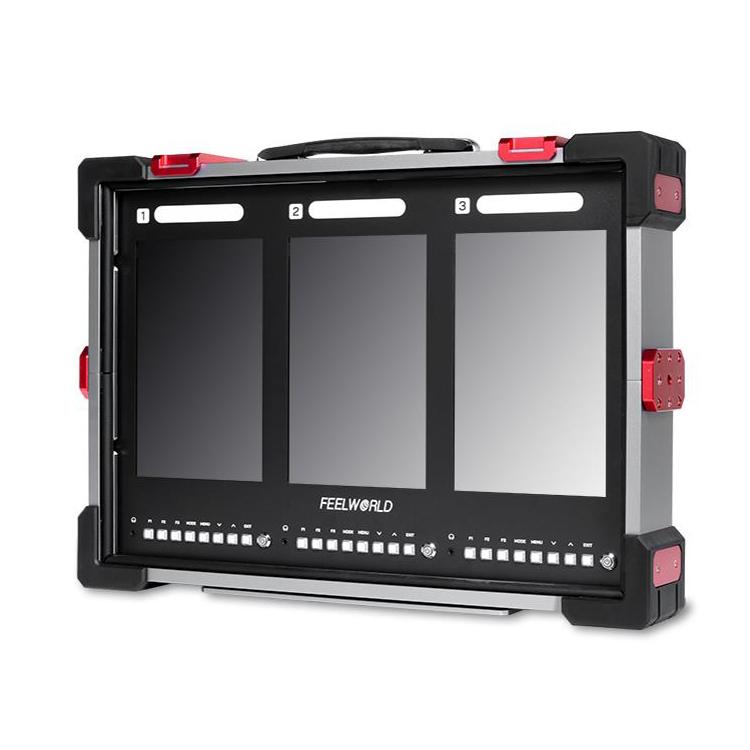

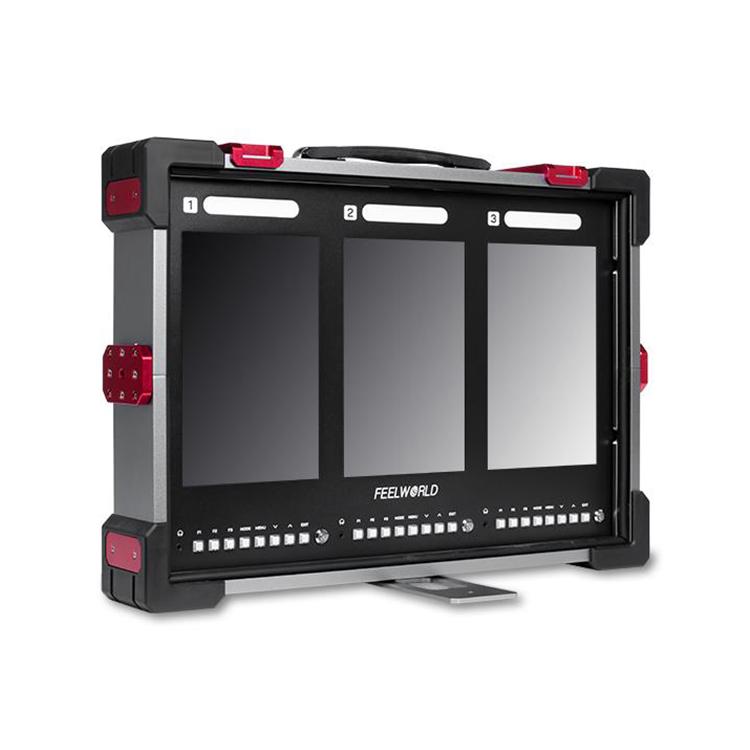

FEELWORLD PS101 Triple 10.1-inch Vertical Dispaly Carry-on Monitor High Brightness 1000nit Portable Protective Case (EU Plug)

Features
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

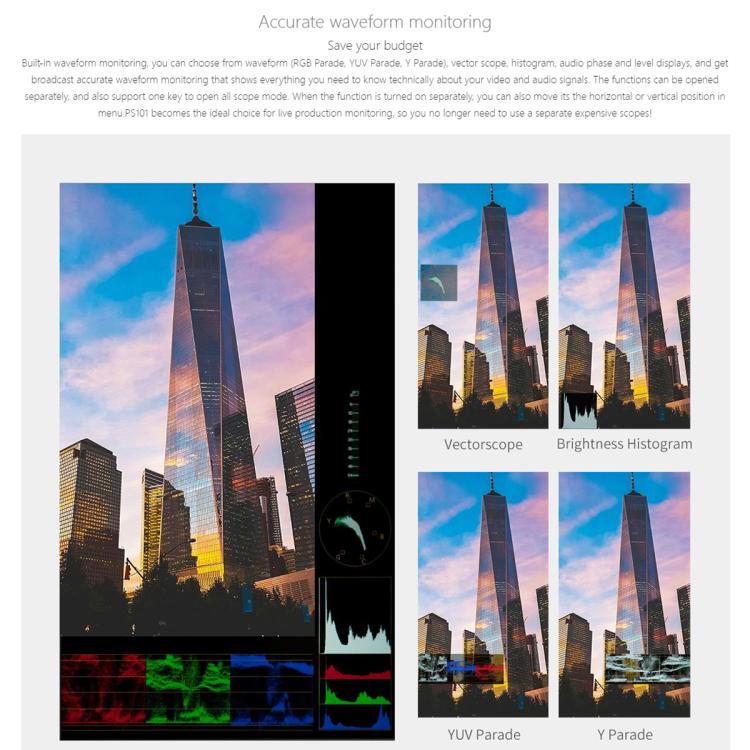

2. Waveform (RGB, YUV, Y)
3. HDR
4. Vector
5. Histogram (RGB,Y )
6. Embedded Audio
7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10IRE???100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Scan Mode (Under Scan, Over Scan)
12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
13. Image Flip (H Flip, V Flip, H_V Flip )
14. Image Freeze
15. Center Marker
16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1, 9:16)
17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
18. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
19. Marker Color (Red, Green, Blue, Black, White, Gray)
20. Grid (2 x 2, 3 x 3, 4 x 4, 5 x 5, 6 x 6, 7 x 7, 8 x 8, 9 x 9, Custom. When selecting Custom, you can custom the rows and columns from2~9)
21. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100~200%)
22. Pixel to Pixel
23. SDI Signal Time Code(LTC, VITC)
24. Display Range( Auto, Limit, Full)
25. EDID Settings(2.0,1.4)

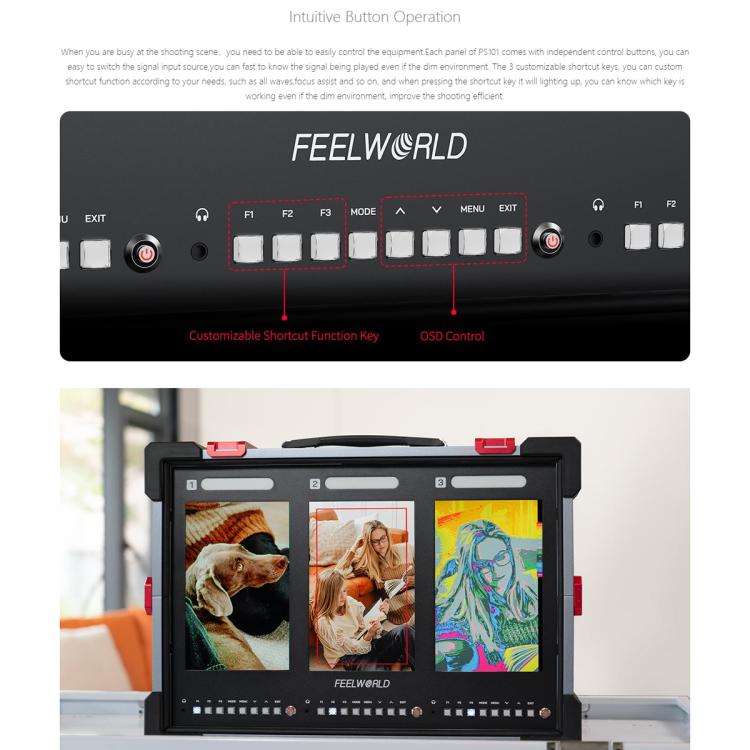

26. User Switch (1~4)
27. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)

Display Spec.
1. Model: PS101

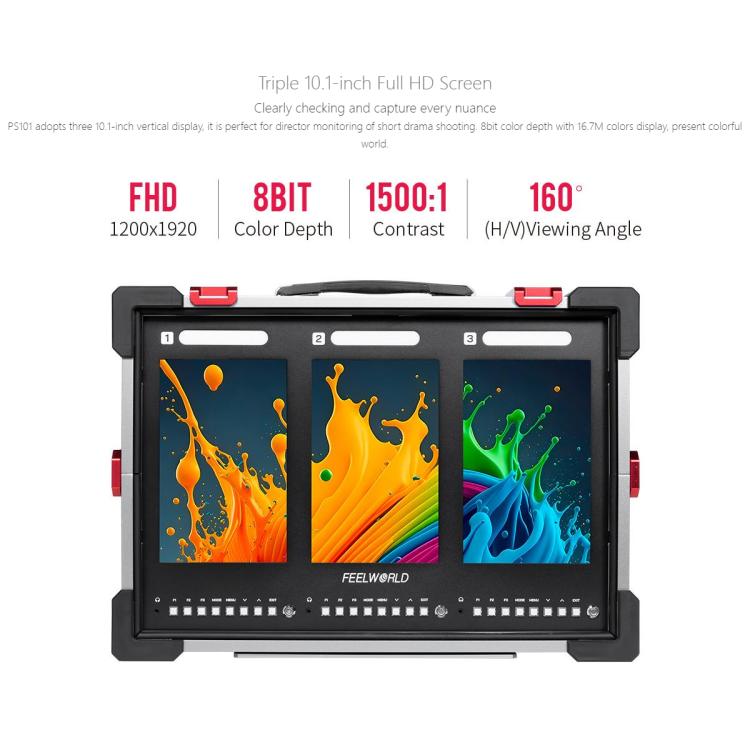

2. Screen Size: 10.1 x3 IPS
3. Resolution: 1200x1920 pixels
4. Pixel Pitch: 0.1128(H) x 0.1128 (W) (mm)
5. Color Depth: 8bit

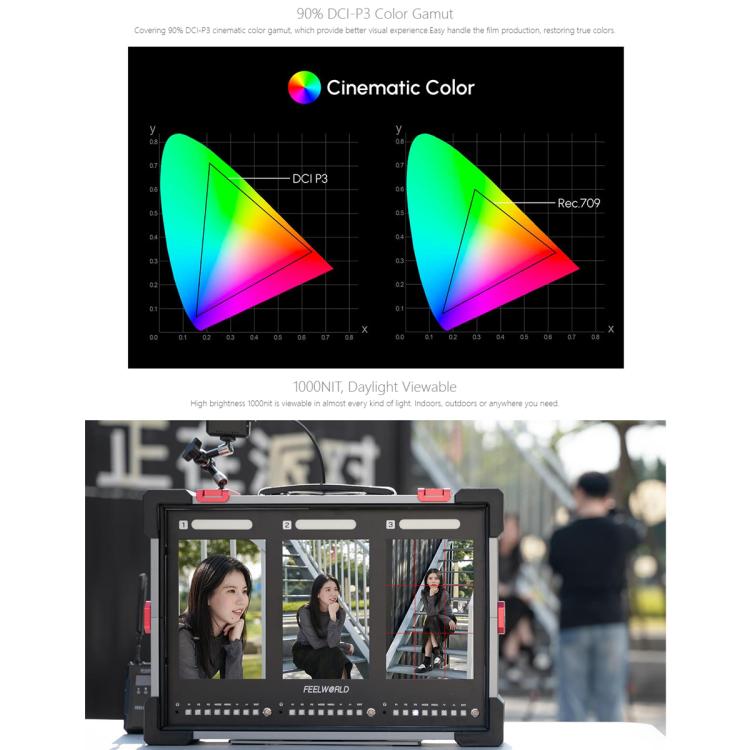

6. Color Gamut: 90% DCI-P3
7. Aspect Ratio: 16:10
8. Brightness: 1000cd/m2
9. Contrast Ratio: 1500:1
10. Backlight: LED
11. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)

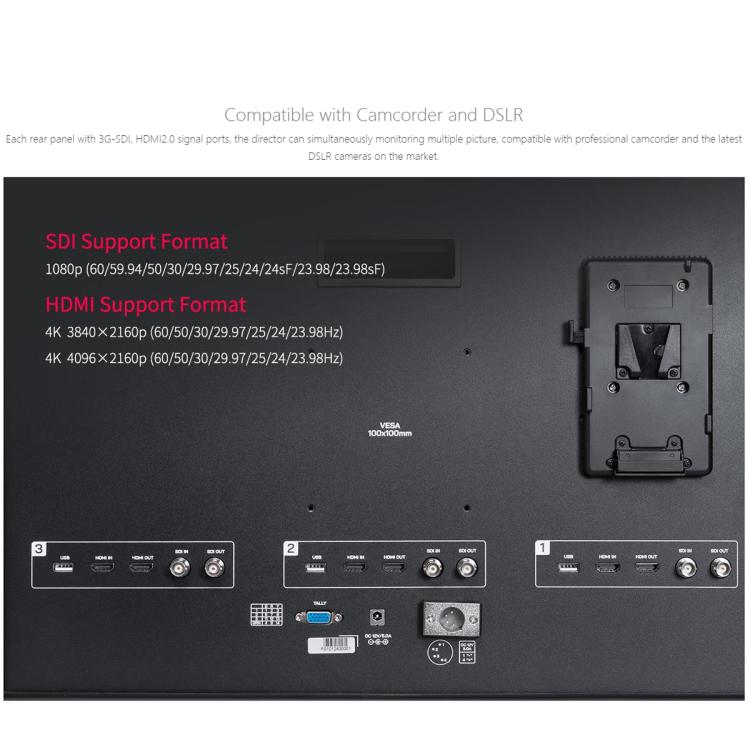

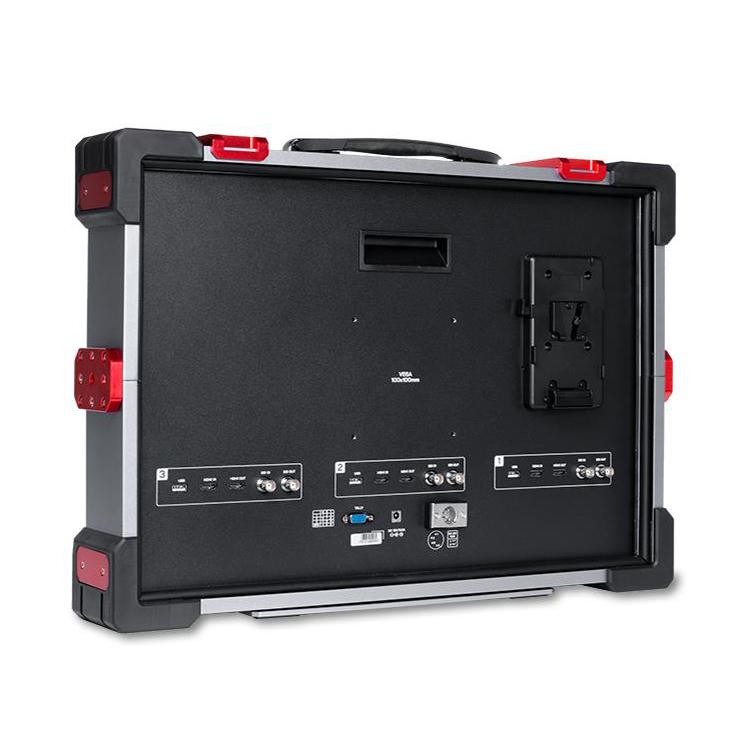

Input
1. 1 x SDI: 3G-SDI
2. 1 x HDMI: HDMI 2.0
3. 1 x USB: USB-A (LUT file import and Firmware update)

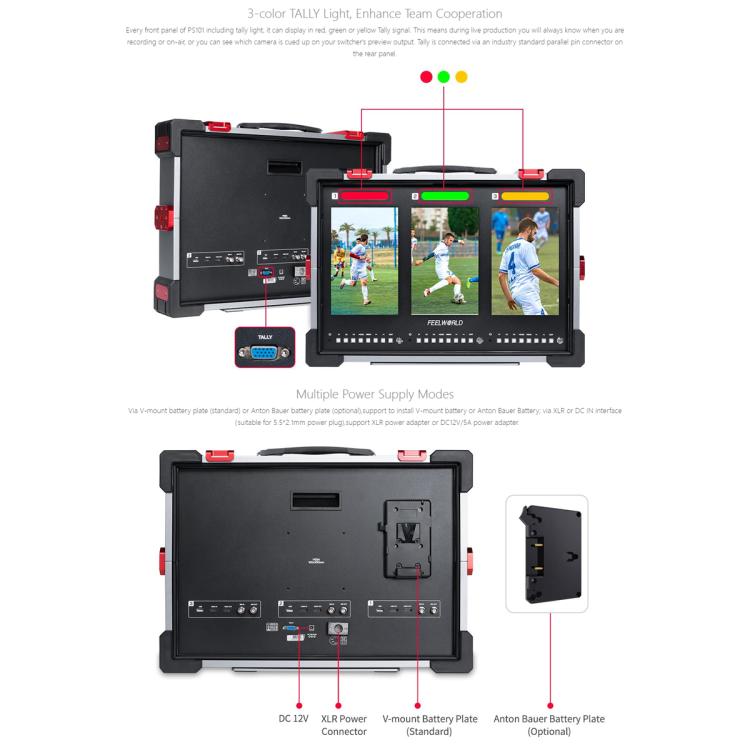

4. 1 x Tally: 9 pin

Output
1. 1 x SDI: 3G-SDI
2. 1 x HDMI: HDMI2.0

Audio
Audio: 3.5mm Stereo Headphone

3G-SDI Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4. 4K 3840??2160p (60/50/30/29.97/25/24/23.98)
5. 4K 4096??2160p(60/50/30/29.97/25/24/23.98)

General
1. Power Connector: DC IN, XLR
2. Input Voltage: DC7???24V
3. Power Consumption: Less than or equal to 48W
4. Working Temperature: -10 degree C~60 degree C
5. Storage Temperature: -20 degree C~70 degree C
6. Battey Plate: V-mount battery plate
7. VESA Size: 100x100mm

Package List
1. Monitor x 1
2. SDI Cable x 1
3. Micro HDMI Cable x 1
4. HDMI Cable x 1
5. 5A Power Adapter x 1
6. Tally Kit x 1
7. V-mount Battery Plate (default to mount on the monitor) x 1
8. Cable Management Tie x 1
9. Manual x 1
