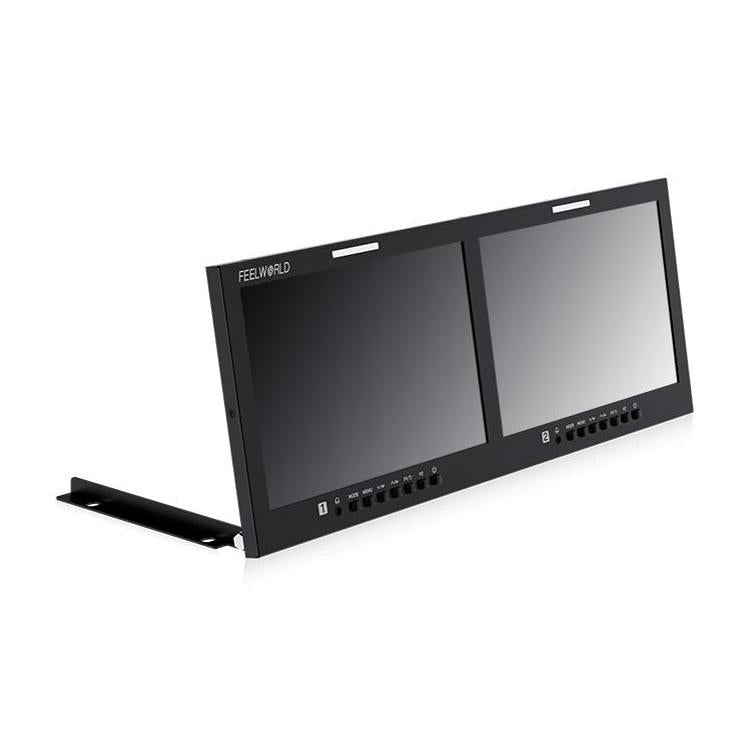

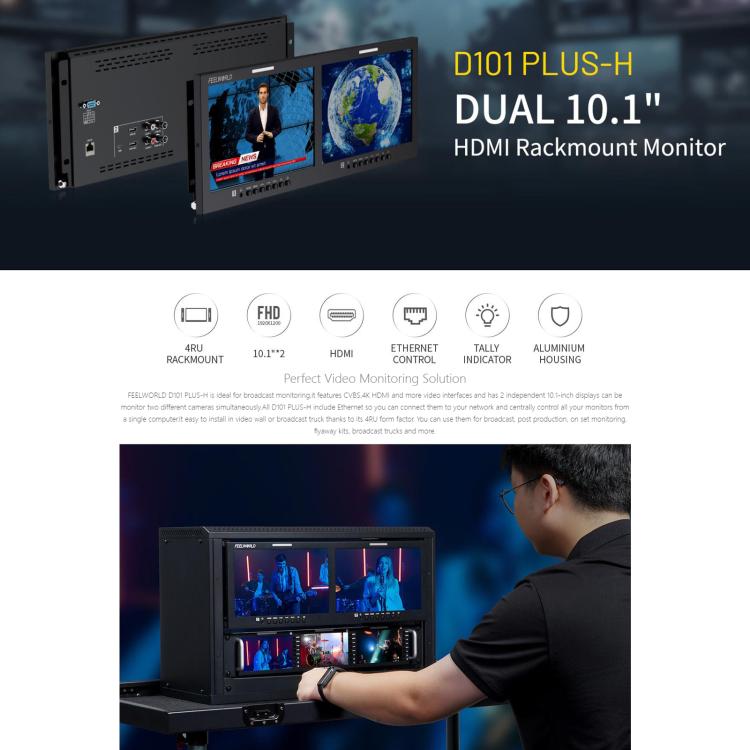

FEELWORLD D101 PLUS-H Dual 10.1 inch 4RU Rackmount Monitor 4K HDMI-compatible CVBS 1920x1200 IPS Screen, Plug:US Plug(Black)

Features:

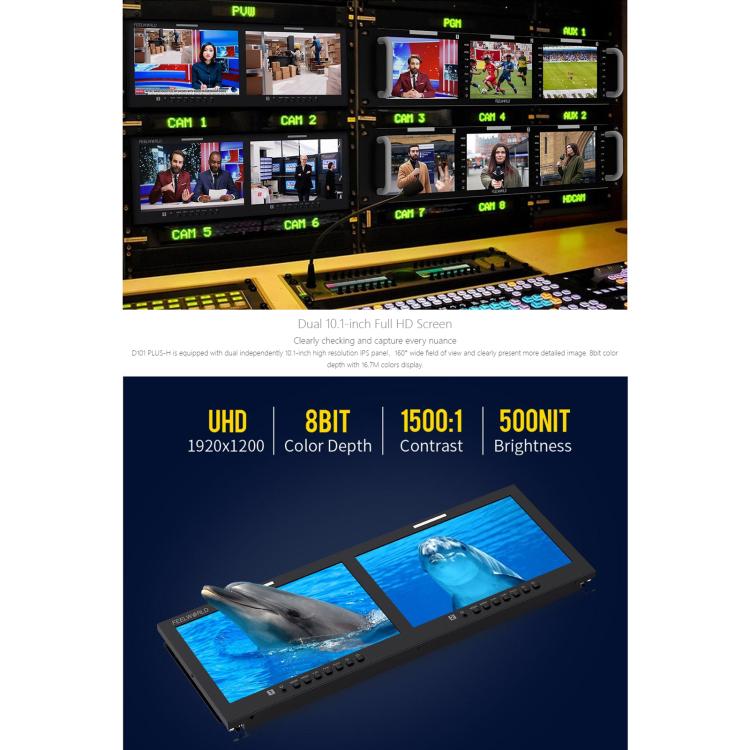

1. 2x10.1 Inch 1920x1200 full HD IPS screen

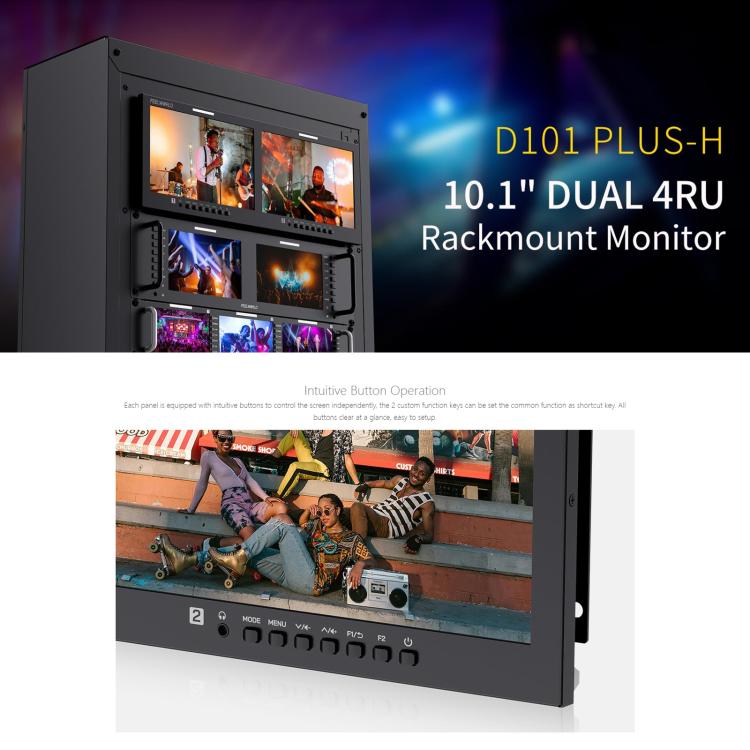

2. Intuitive buttons + new menu interface, convenient to operation
3. 4RU rack mount design, easy to mount on TV wall or broadcast truck

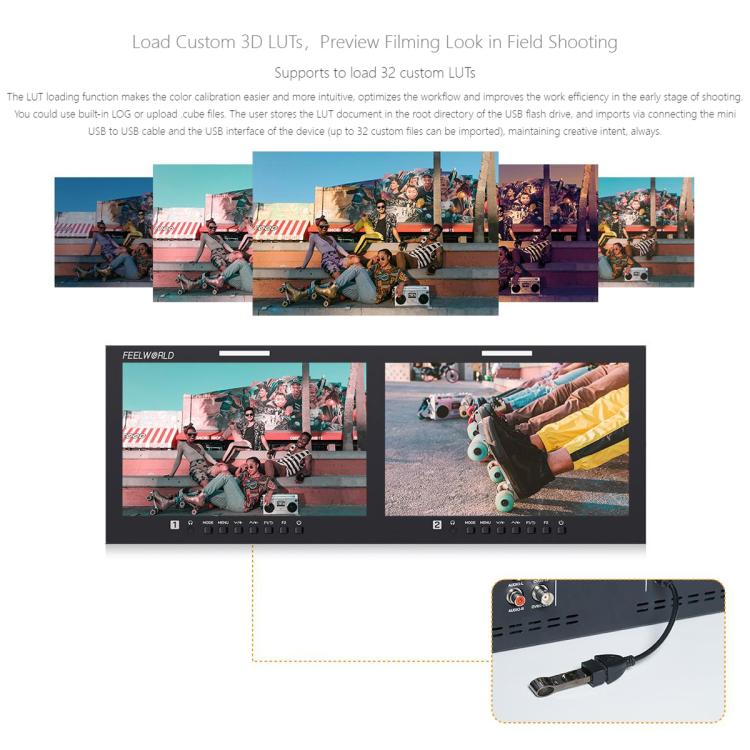

4. Upload custom 3D-LUT, preview film look
5. With Waveform, Vector scope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot

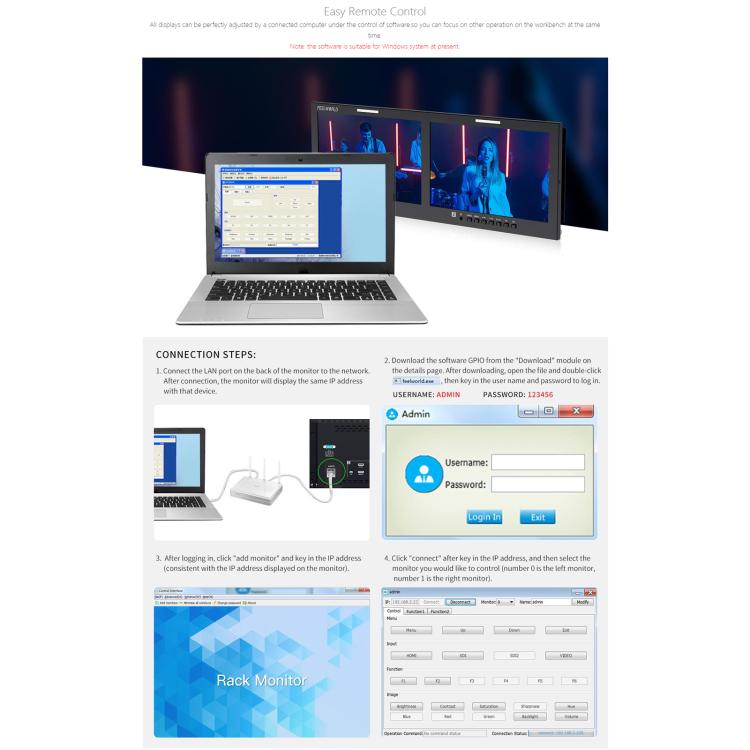

6. Connect to Ethernet remotely adjust the monitor via software
7. Front panel built-in 3 colors TALLY indicator, enhance shooting cooperation
8. Multiple signal ports (HDMI/CVBS), meet different needs.

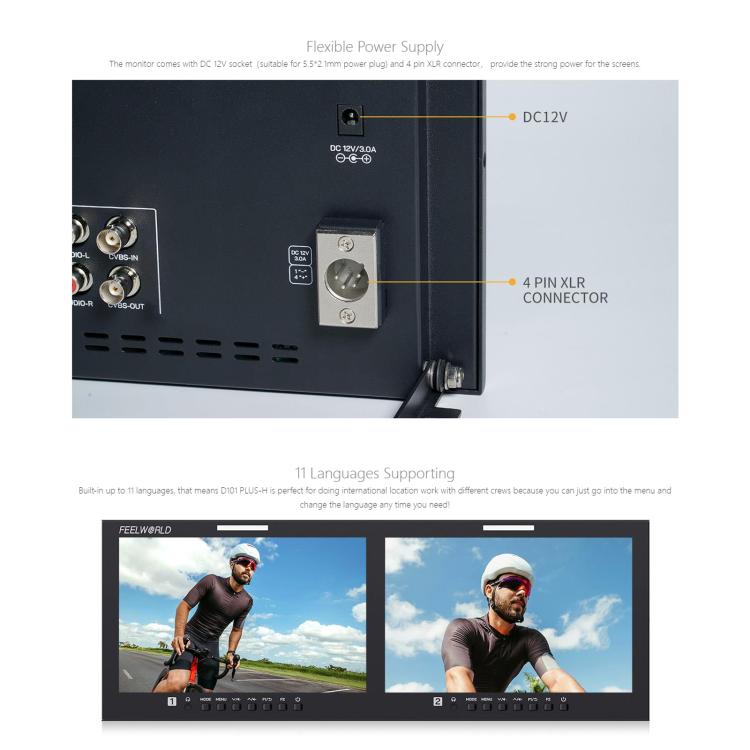

9. Power using included 12-volt supply or use standard 4-pin XLR

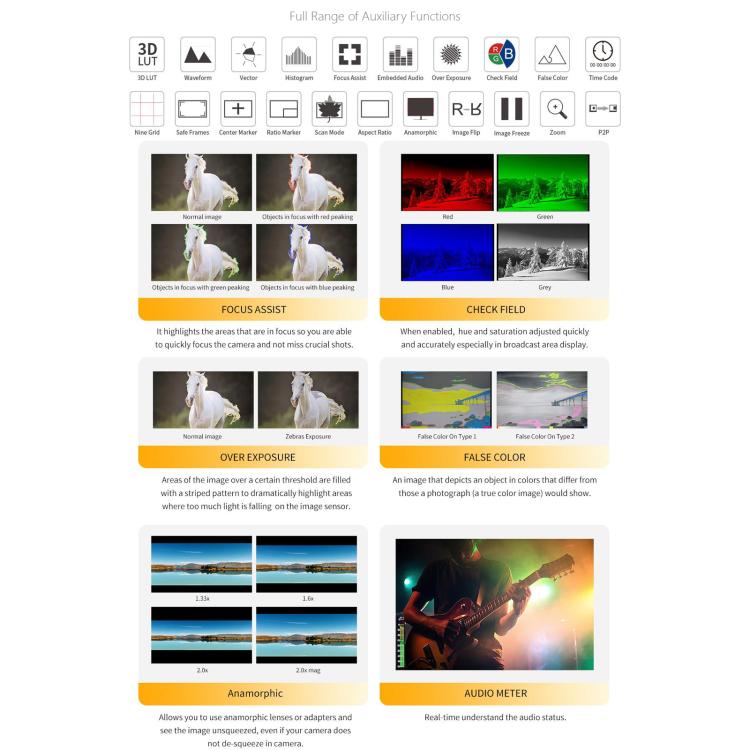

Functions:
1. Waveform (RGB, YUV, Y)
2. Vectorscope
3. Histogram (RGB1, RGB2, Y)
4. Custom LUTs (up to 32)
5. Focus Assist(Red, Green, Blue)
6. Check Field (Red,Green,Blue,Mono)
7. Embedded Audio
8. Over Exposure
9. Pixel to Pixel
10. Center Marker (Red, Green, Blue, Black, White, Gray)
11. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
12. Image Flip (H, V, H/V)
13. Image Freeze
14. Zoom Mode (2X, 4X, 9X, 16X, User)
15. False Color
16. Scan Mode(Under Scan, Over Scan)
17. Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
19. Custom Color Temperature
20. Built-in LED tally indicators (Red, Green, Yellow)

Display Spec.
1. Model: D101 PLUS-H
2. Screen Size: 10.1 inch x 2 IPS
3. Resolution: 1920 x 1200 pixels
4. Dot pitch: 0.1128(H) x 0.1128 (W) mm
5. Aspect Ratio: 16:10
6. Brightness: 500cd/m2
7. Contrast Ratio: 1500:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) / 80 degree /80 degree (U/D)

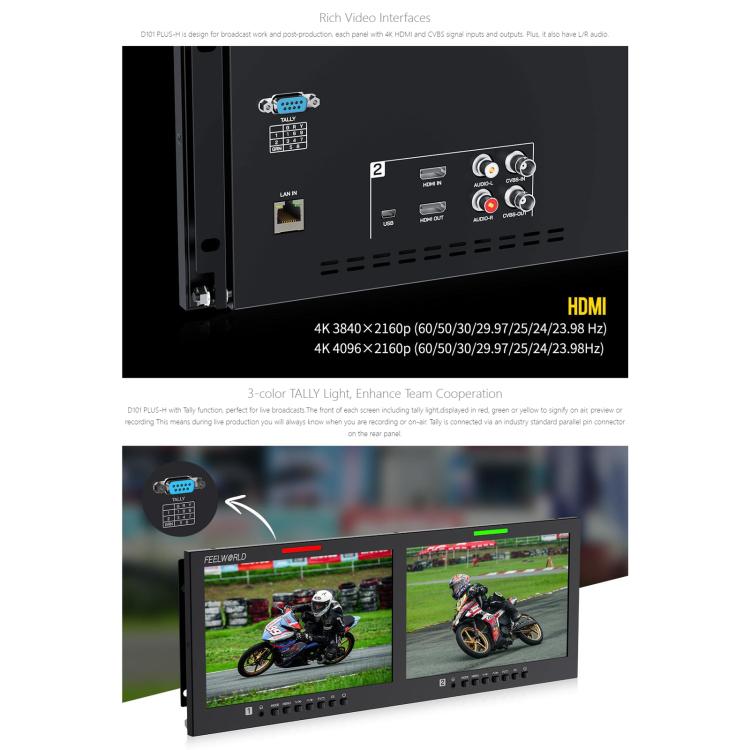

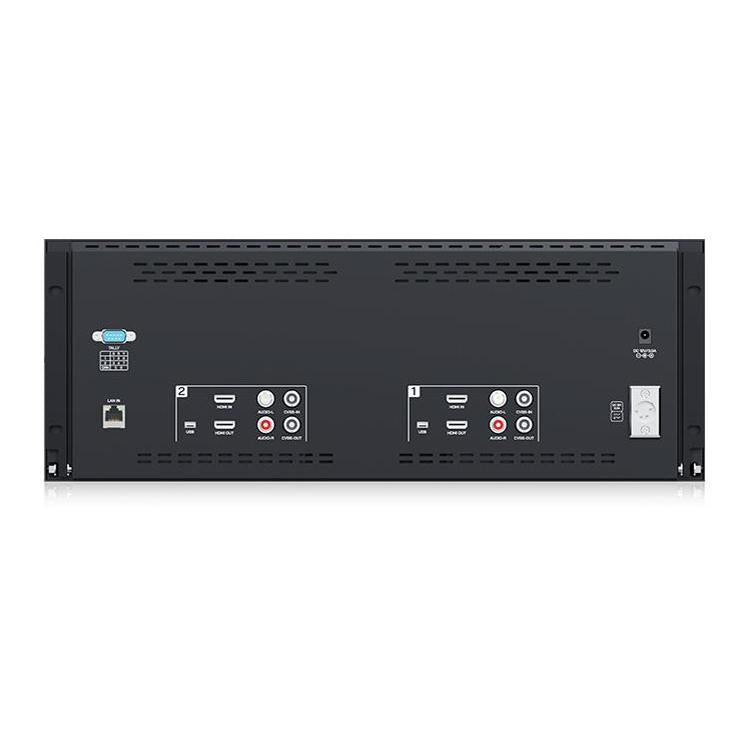

Input (Each LCD)
1. 1 x HDMI: HDMI
2. 1 x BNC: Video
3. 2 x RCA: Audio(L/R)

Output (Each LCD)
1. 1 x HDMI: HDMI
3. 1 x BNC: Video

Audio (Each LCD)
Audio Out: Stereo Headphone x 1

HDMI Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
5. 4K 3840x2160p (60/50/30/29.97/25/24/23.98)
6. 4K 4096x2160p (60/50/30/29.97/25/24/23.98)

CVBS (Video) Support Format
PAL/NTSC auto recognize

General
1. Input Voltage: DC9~24V
2. Power Consumption: Less than or equal to 24W
3. Power Connector: DC/ 4-pin xLR
4. Working Temperature: -10 degree C~60 degree C
5. Storage Temperature: -30 degree C~70 degree C
6. Install Way: Rack Mount

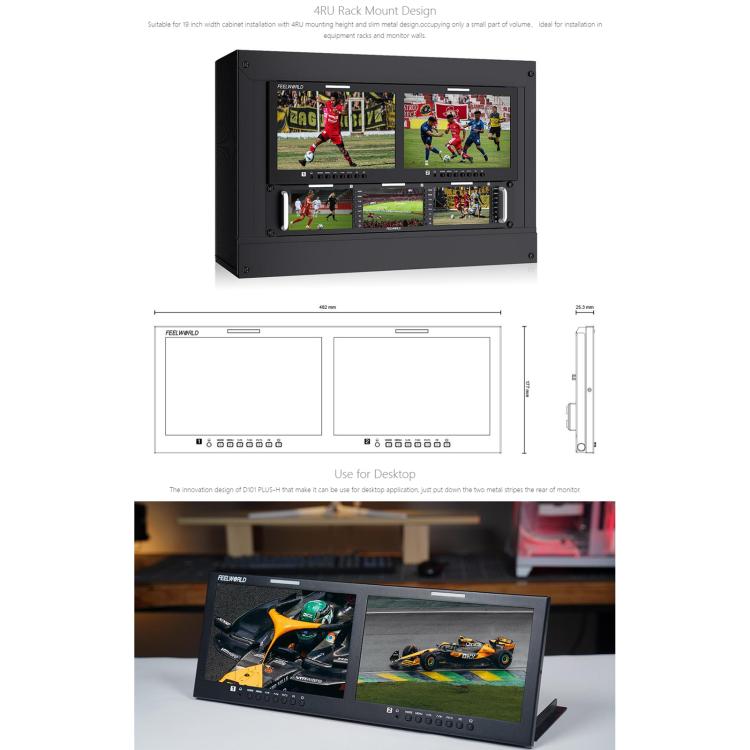

7. Unit Size: 482x177x25 mm
8. Unit Weight: about 2000g

Packaging List:
1. Monitor x 1
2. 3A Power Adapter x 1
2. Mini USB to USB Cable x 1
3. Tally Kit x 1
4. Operation Manual x 1
