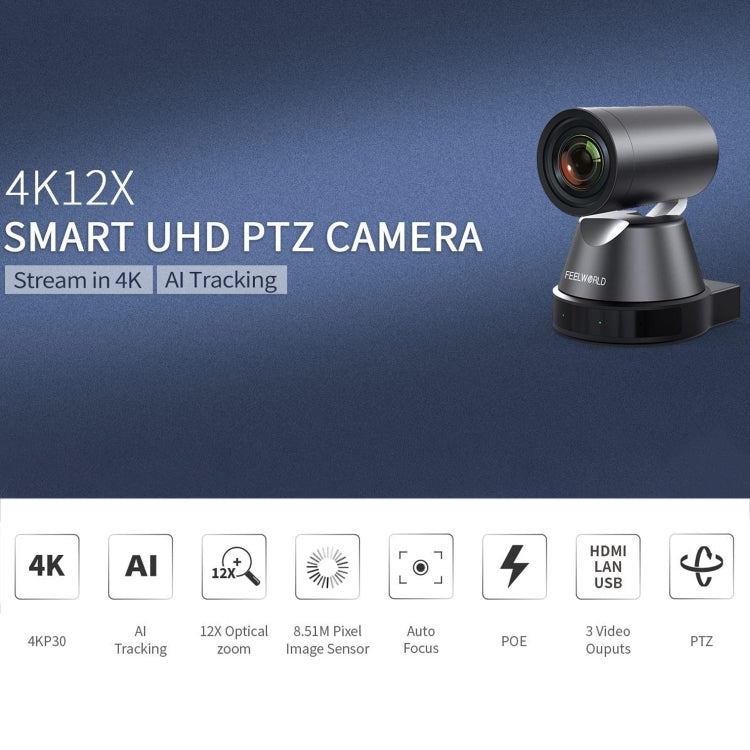

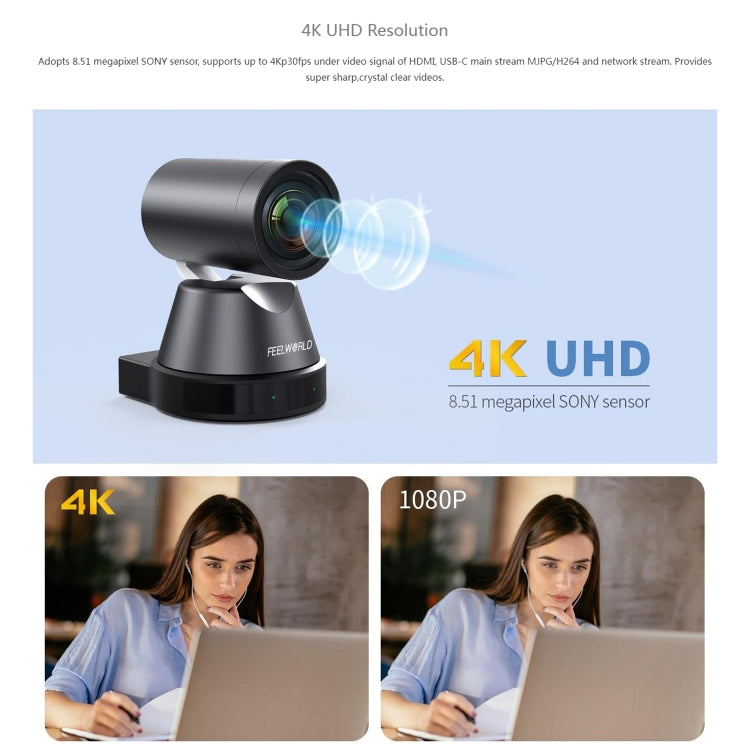

Features: 1. 8.51M megapixel high quality SNY CMOS sensor 2. Up to 4K 30fps , presenting ultra clear and vivid image 3. 12X optical zoom lens and 80.5 degree wide angle lens 4. Simultaneous HDMI, USB3.0, IP Streaming video out, easily for professional video production 5. PoE(Power over Ethernet) supported 6. Auto focus, smart frame capture everyone 7. Support H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions. 8. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity 9. High speed and silent pan/tilt, capture all the actions 10. Multiple control protocol and network protocol 11. Support real-time AI tracking and zone tracking 12. Ideal for online education, live streaming, video conference, Tele-medicine, etc.
Specifications: 1. Model: 4K12X 2. Sensor:1/2.8 inch high quality CMOS sensor 3. Effective Pixels: 8.51 megapixel,16:9 4. View Angle: H:7.6 degree(N)～80.5 degree (W) 5. Iris: F1.8 ～ F3.6 6. Digital Zoom:15X 7. Optical Zoom: 12X 9. Minimum Illumination: 0.5Lux(F1.8, AGC ON) 10. DNR: 2D & 3D 11. White Balance: Auto/Manual/One-push/Specified Color Temperature 12. Focus: Auto/Manual/One-push 13. Exposure: Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority 14. Iris Mode: F1.8 ~ F11, CLOSE 15. Shutter Speed: 1/25～1/20000 16. BLC: On/Off 17. Dynamic Range: Off,1~8 18. Video Adjustment: Brightness, Chromaticity, Saturation, Contrast, Sharpness, Black And White Mode, Gamma Curve 19. SNR: Less 50dB

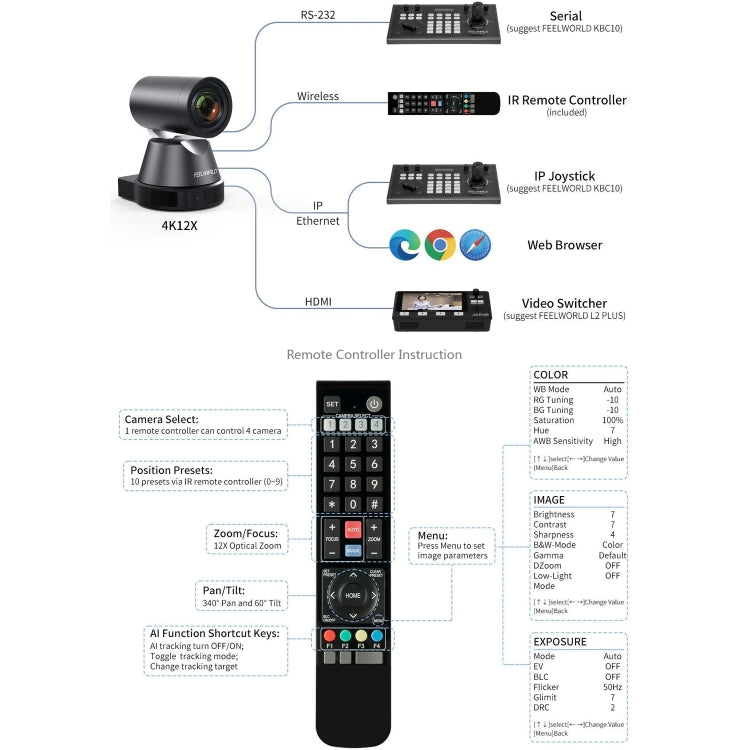

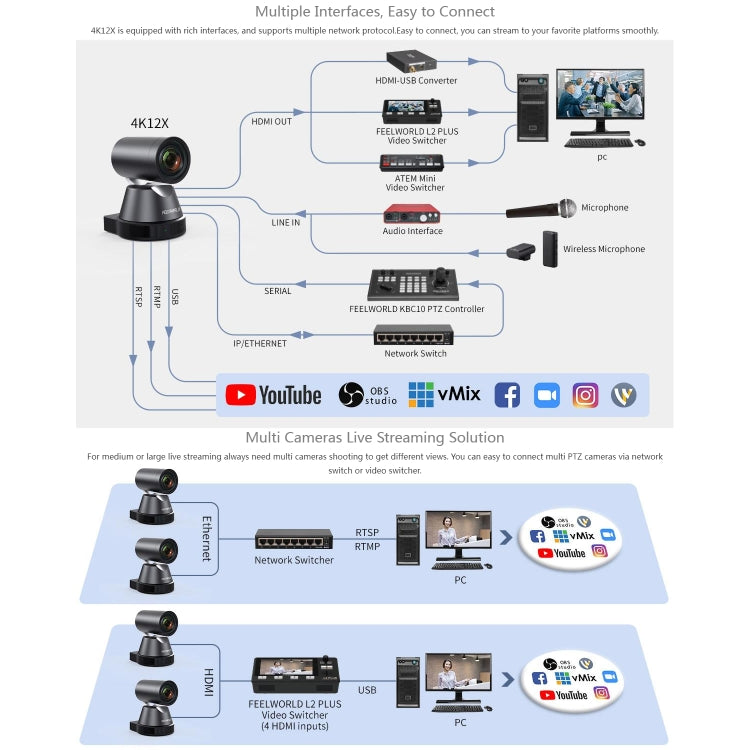

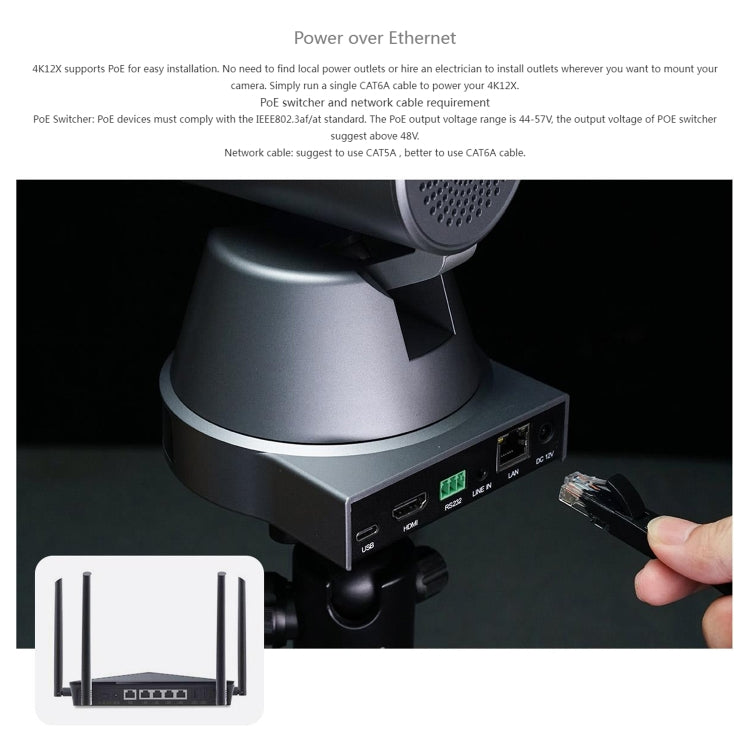

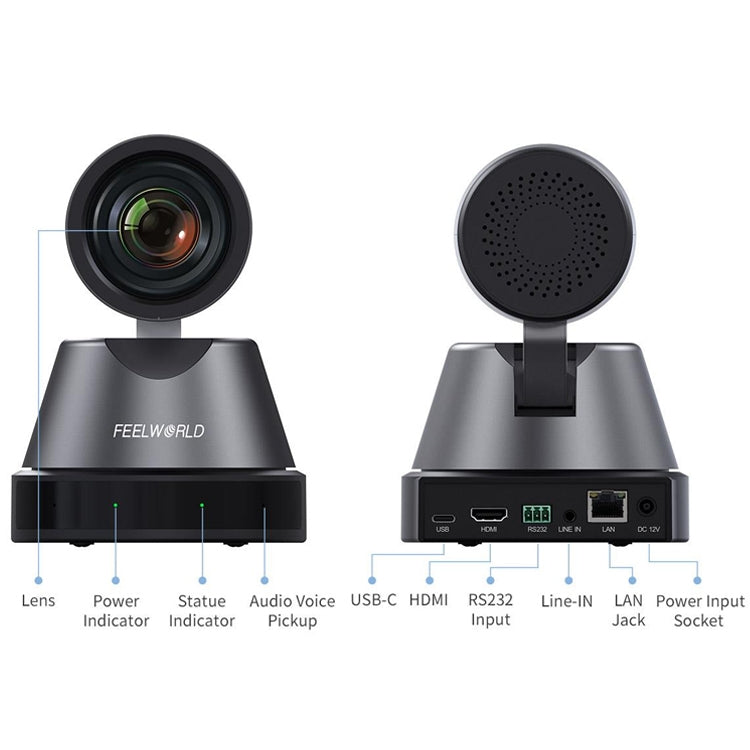

Input/output Interface 1. Interface: HDMI, LAN(POE), USB3.0, A-IN, RS232-IN, DC12V Power Supply 2. Video Output: HDMI, USB3.0, LAN(support PoE) 3. Video Compression Format: LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12 4. Audio Interface: Double track 3.5mm linear input 5. Audio Compression Format: AAC 6. LAN Interface: 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output 7. Control Interface: RS232-IN 8. Control Protocol: VISCA/Pelco-D/Pelco-P 9. Serial Port Communication Protocols: VISCA/Pelco-D/Pelco-P 10. USB Communication Protocols: UVC (Video Communication Protocol), UAC(Audio Communication Protocol) 11. Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote reboot, remote reset 12. Power Supply: HEC3800 Power Socket(DC12V)

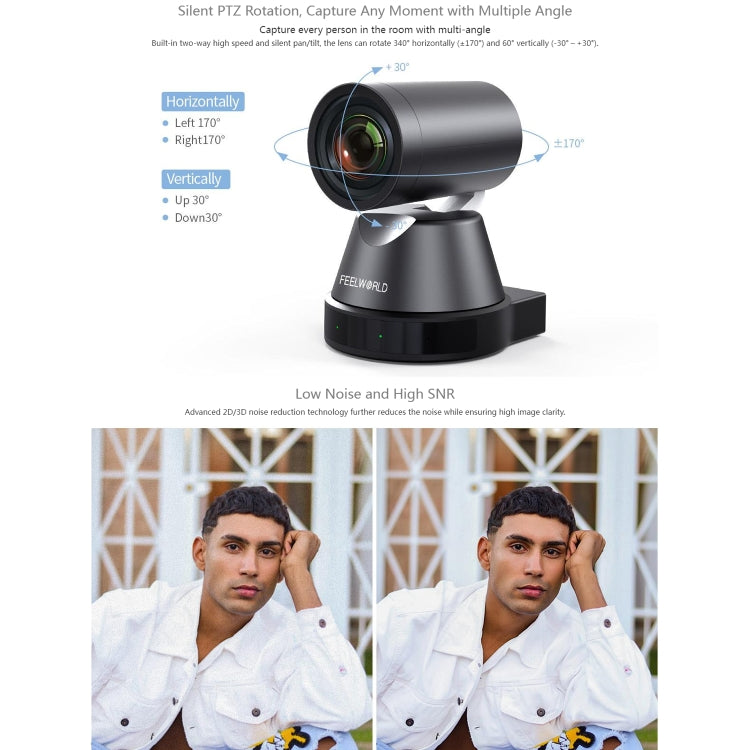

PTZ Parameters 1. Pan Rotation: -170 degree ~ +170 degree 2. Tilt Rotation: -30 degree ~ +30 degree 3. Pan Control Speed: 0.1~45 degree/sec 4. Tilt Control Speed: 0.1~30 degree/sec 5. Preset Speed: Pan: 45 degree/sec, Tilt: 30 degree/sec 6. Preset Number: 255 presets(10 via remote control)
Other Parameters 1. Input Voltage: 12V/1A 2. Input Current: Less than 1A 3. Power Consumption: Less than or equal to 12W 4. Dimension: 130.46x118.44x165.34mm 5. Unit Weigh: 1.025kg

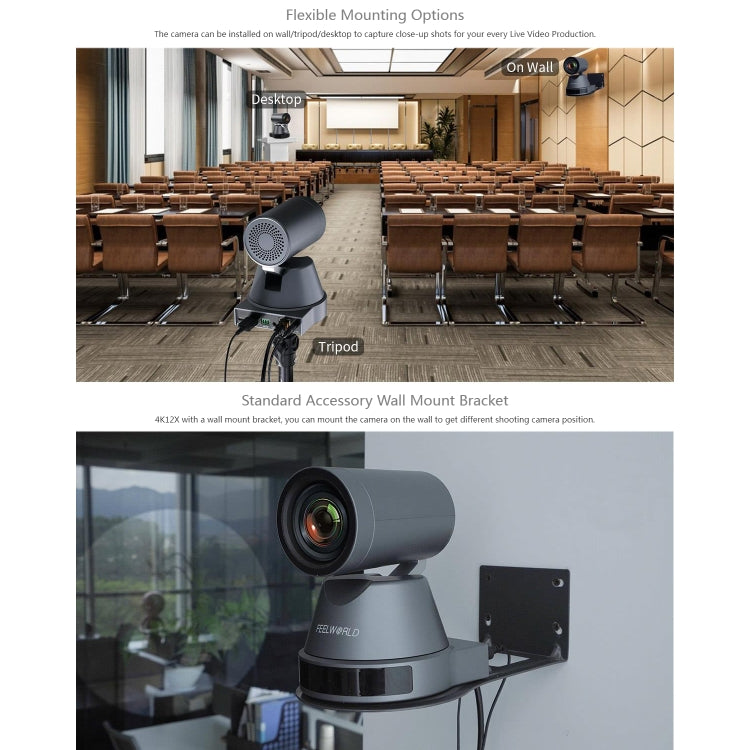

Package List: 1. PTZ Camera x 1 2. Power Adapter x 1 3. Remote Control x 1 4. USB-C to USB-A Cable x 1 5. RS232 Terminal Block x 1 6. Wall Mount Bracket x 1 7. Quick Start Guide x 1
