1. Frequency bands:
- 4G: B1,B3,B7,B8,B20,B20,B28,B38,B40,B41
- WCDMA : B1/B8
2. FDD: up to 150Mbps DL, up to 50Mbps UL
3. WiFi: IEEE 802.11b/g/n
4. WiFi transfer rate: up to 300Mbps
5. WiFi type: 2.4G
6. Antenna: 2.4G external antenna x 2
7. Number of users: up to 32
8. Input: 12V 1A
9. Ethernet Port: RJ11 x 1, RJ45 x 1, 10/100 M adaptive, LAN/WAN adaptive
10. USB port: USB 2.0 port x 1
11. Debugging keys: reset key, WPS key
12. Operating temperature: -10 - 45 degrees Celsius
13. Storage temperature: -25 - 70 degrees Celsius
14. Operating humidity: 5% - 95%
15. Size: about 21.6 x 14 x 3.8cm
Features:

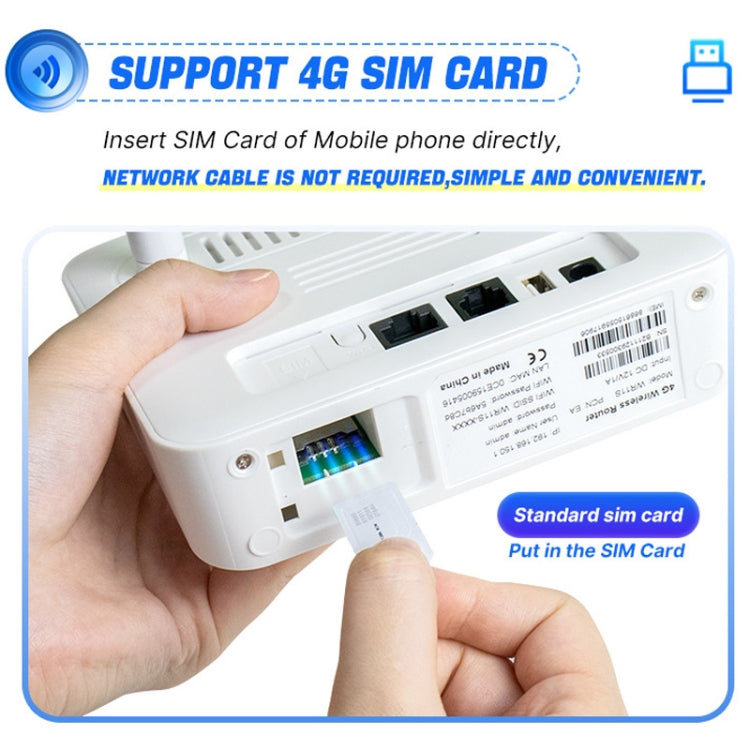

1. Support 4G SIM card, directly inserted into the mobile phone SIM card, no need for network cable, simple and convenient
2. Support 32 users, SMA detachable antenna, can be connected to outdoor 4G antenna, get stronger signal
3. 300Mbps high-speed operation, both 4G and WiFi speed is very fast, support uninterrupted watching videos and playing games
4. Enjoy wired and wireless Internet access, equipped with LAN interface, when the 4G router transmits WiFi, you can connect other devices at the same time
5. Adopt WPA/ WPA2 encryption technology, you can set password or other information to protect data security
6. High performance antenna supports long distance coverage, can cover about 50-100 metres
7. Convenient setup, press the WPS button on the repeater and router, the installation will be completed within 2 minutes
Specification:
|
Package Weight
|
| One Package Weight |
0.75kgs / 1.66lb
|
| One Package Size |
32cm * 28cm * 7cm / 12.6inch * 11.02inch * 2.76inch
|
| Carton Weight |
16.00kgs / 35.27lb
|
| Carton Size |
52cm * 32cm * 31cm / 20.47inch * 12.6inch * 12.2inch
|
| Loading Container |
20GP: 516 cartons * 20 pcs = 10320 pcs
40HQ: 1200 cartons * 20 pcs = 24000 pcs
|
|
