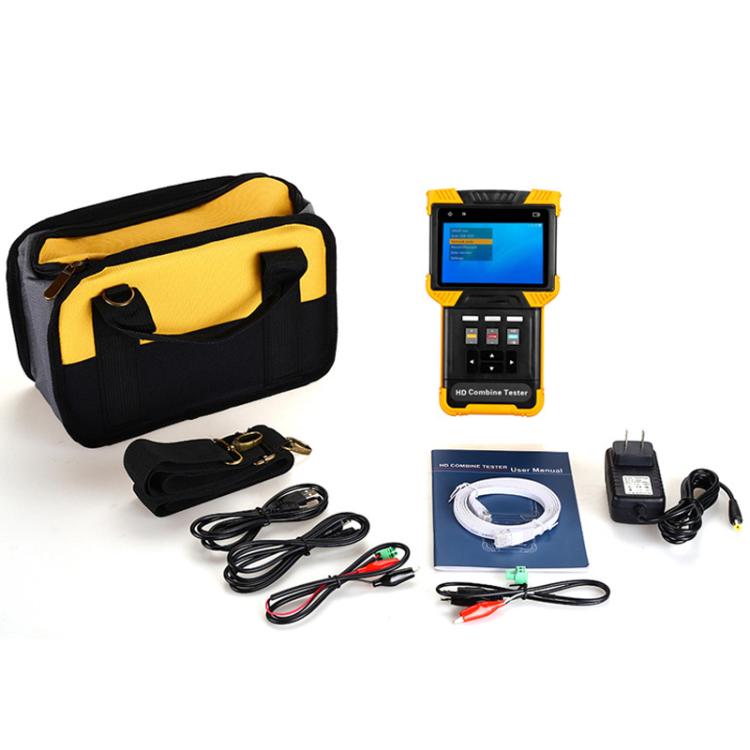

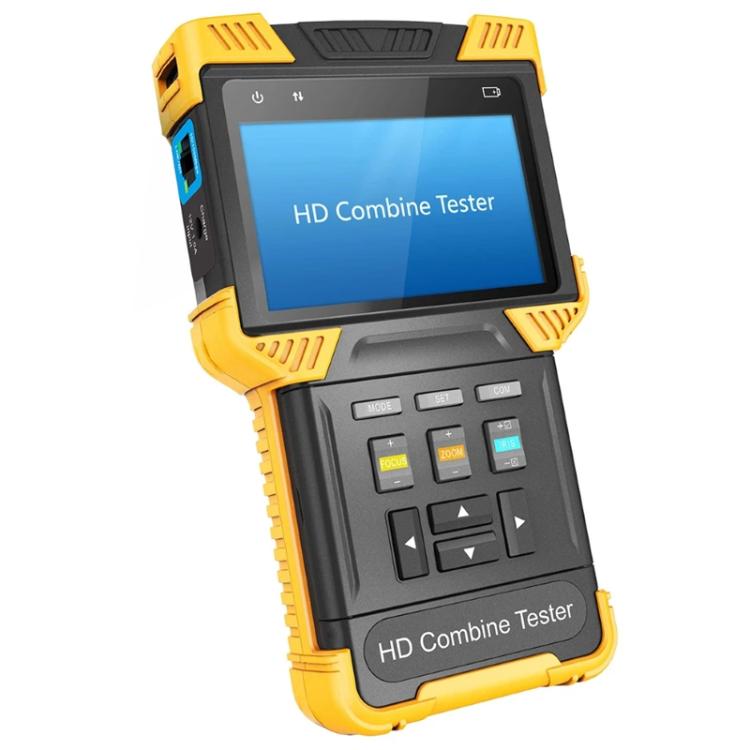

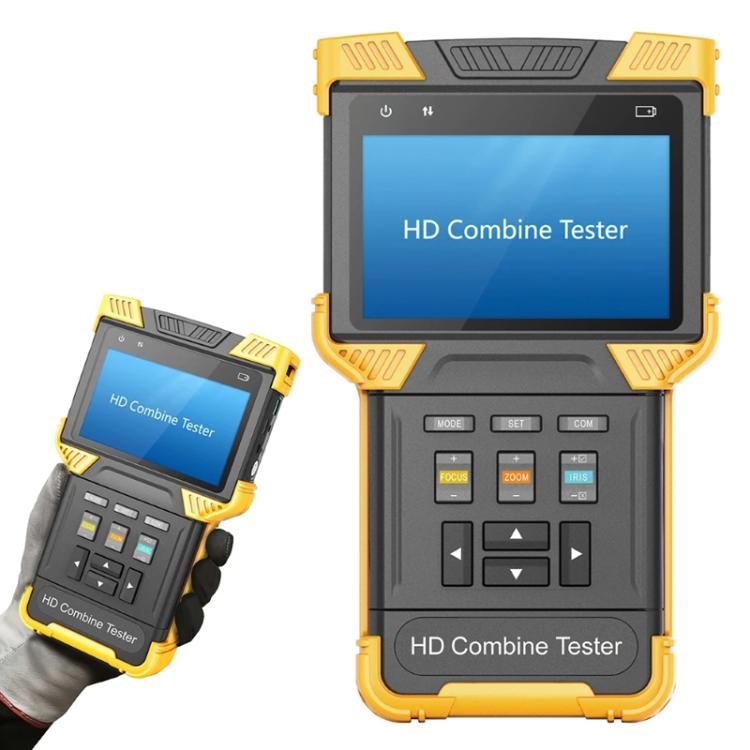

DT-T71 Network Engineering Tester Coaxial AHD/CVI/TVI Video Surveillance Tester US Plug

1. Single network port supports 10/100M: network status and traffic display, supports cascading
2. Network camera testing: supports H.264, H.265, 4K main stream testing

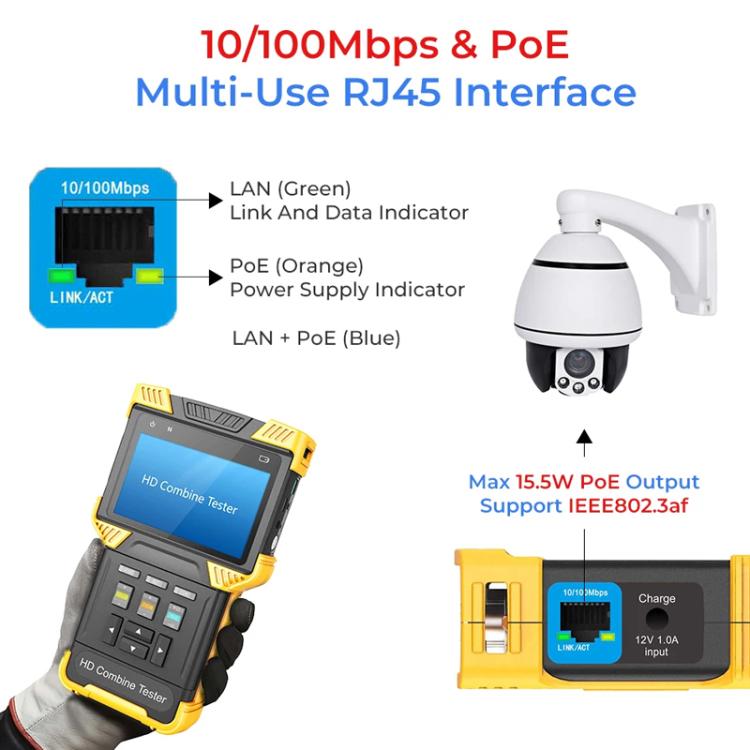

3. Camera power supply: POE power supply, 12V/1A power supply

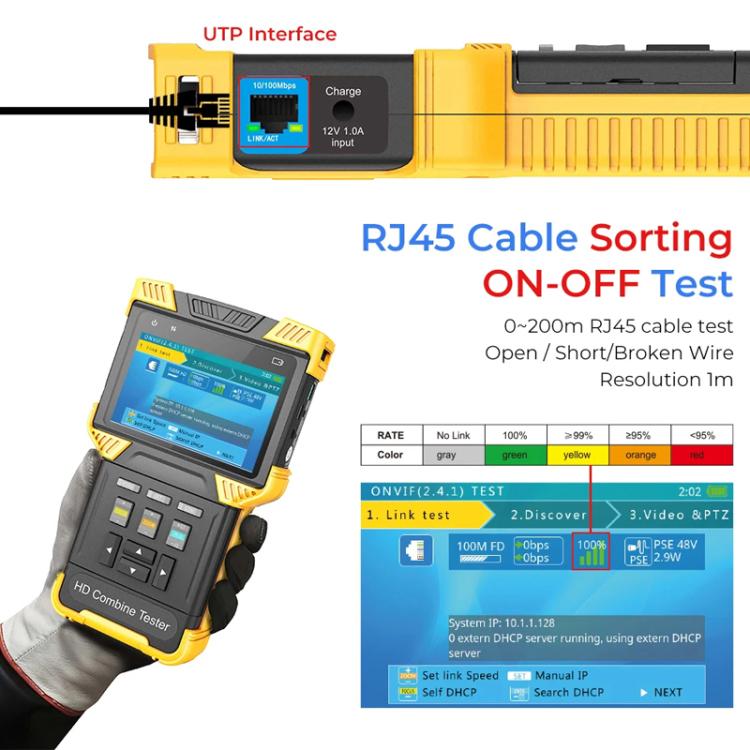

4. TDR network cable break point testing: network cable quality and length testing
5. New coaxial high-definition HD CVI/TVI/AHD testing, OSD menu
6. Activation of Hikvision/Dahua cameras
7. Enhanced compatibility with ONVIF cameras, cross-subnet discovery of IP
8. Test backbone traffic, grasp the entire data flow situation
9. IP address search and probing, Ping IP
10. Simulation camera testing; audio testing
11. Can call for image zoom preview (8-level zoom)
12. Pan-tilt test: 485 pan-tilt test, network dome camera test
13. Battery: Special replaceable 3000mAh polymer lithium battery
14. Display screen: 4.0-inch high-definition resolution, clearer and smoother picture

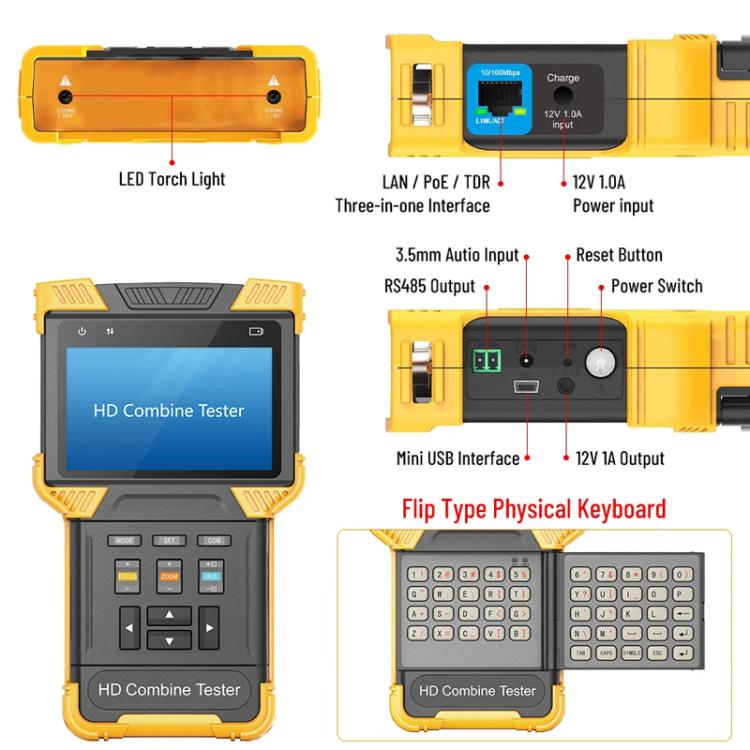

15. LED lighting: 2 pairs of 35lm LED, diffuse light
16. Storage function: built-in 8G memory card, screenshot, recording
17. Linux embedded system, smoother picture

Parameters
1. Charger: 12V 1A charging

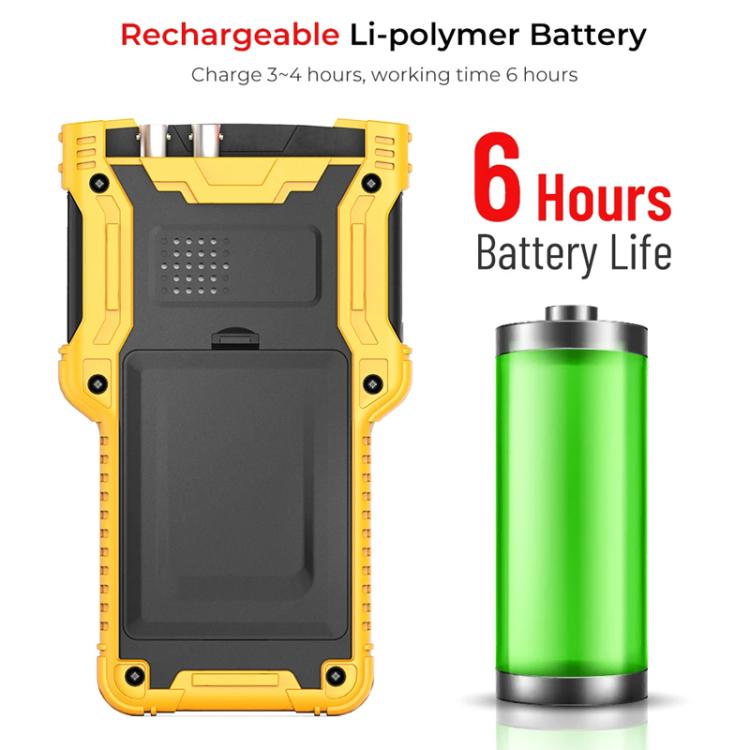

2. Battery: replaceable 7.4V polymer lithium battery, capacity 11Wh, working time about 6 hours
3. Charging: 12V charging, charging time 3-4 hours
4. Power saving: can be set to automatically switch based on timeout, battery level icon displayed in real time
5. Display screen: 4.0 inch TFT 800 x RGB x 480 (WVGA) resolution, 16.7M colors, adjustable backlight brightness

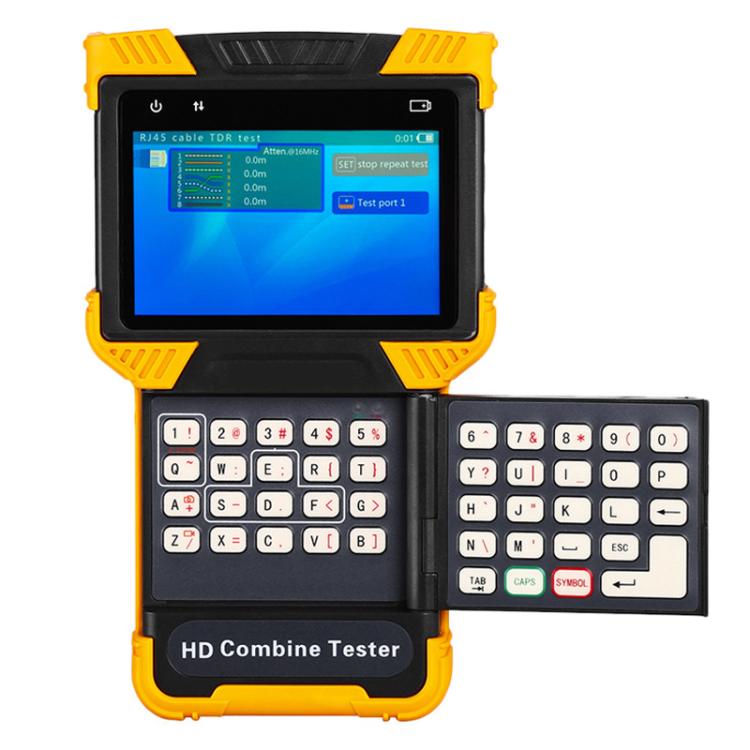

6. Operating mode: power button, main control keyboard with 12 keys, flip-over QWERTY keyboard with 45 keys
7. Operating settings: Chinese and English interfaces, user selectable
8. Automatic standby: off/5-60 minutes
9. Keyboard sound: on/off
10. Working temperature: -10 degrees celsius to +55 degrees celsius
11. Working humidity: percent 30 to percent 90

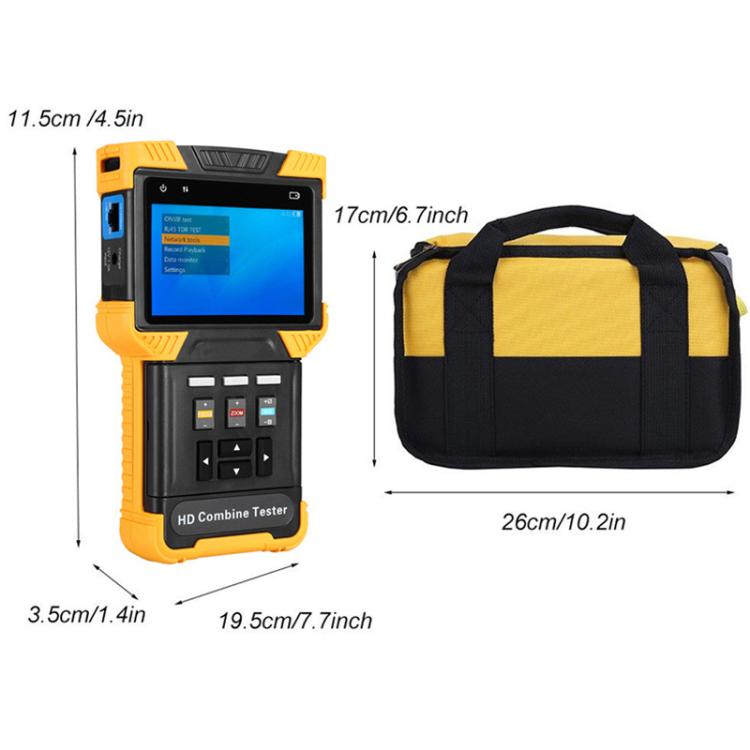

12. Size: about 19 x 11.3 x 3.7 cm
13. Packaging weight: about 1.5 kg
