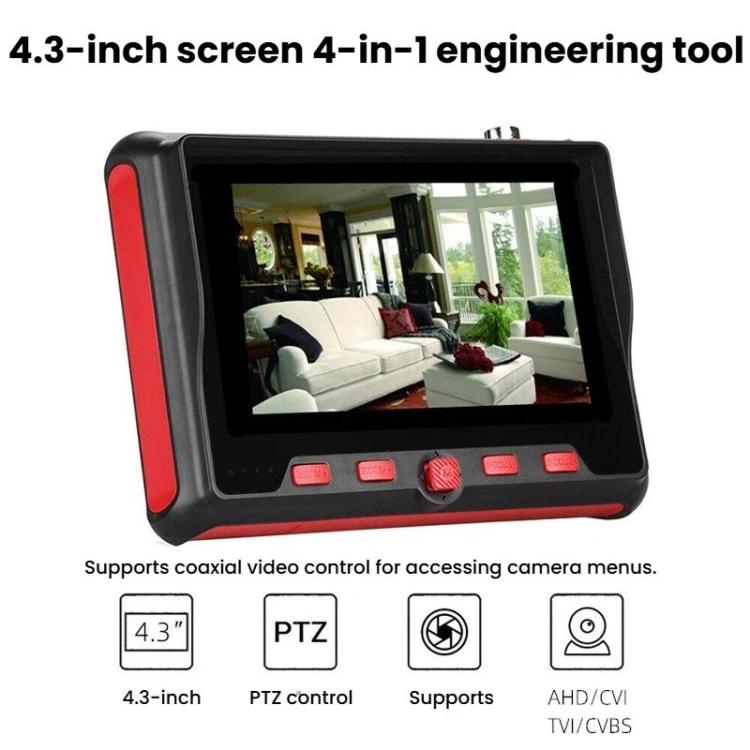

5200ACT-PTZ 4.3 Inch Engineering Tester Coaxial AHD/TVI/CVI Analog Video Surveillance Tester UK Plug

1. Support for coaxial video control, and support for UTC to call the camera menu

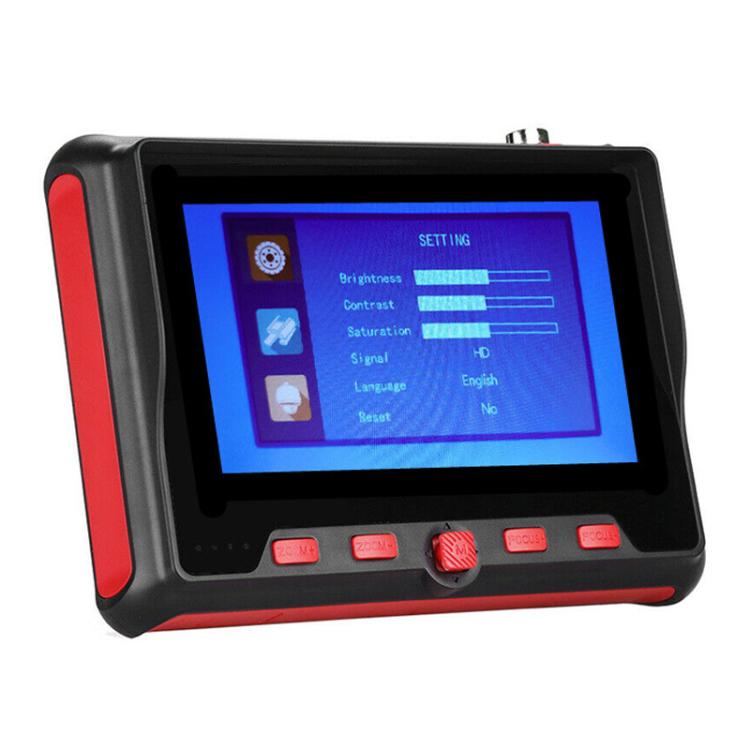

2. Video signal testing function, high-definition video monitoring tester, built-in high-definition 4.3-inch 800 (RGB) x 480 wide-angle display screen, supporting image signals in PAL/NTSC formats

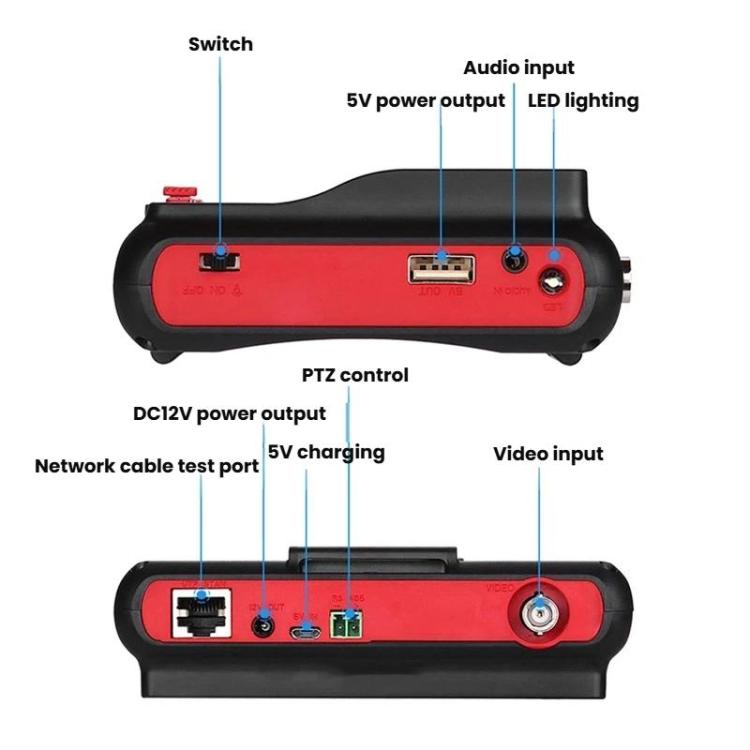

3. Pan-tilt control function, the video monitoring tester is built-in with Pelco-D/P etc. PTZ control protocols, through the RS485 interface, can control the up, down, left, right and zoom, focus, aperture, size of the pan-tilt
4. DC12V 1A power output function, the video monitoring tester is specially designed with a 12V 1A power output port for the camera power supply, providing temporary power supply for the camera
5. Audio testing function, the audio testing function of the video monitoring tester can test audio equipment such as microphones at the video monitoring front end
6. Enhanced network cable testing function, network cable testing function, through the UTP CABLE TEST test port on the instrument
7. TVI camera testing, TVI coaxial high-definition video monitoring test, supporting 720p 25/30/50/60fps/1080p 25/30fps, 5MP. 8MP resolution camera image testing
8. AHD camera testing, AHD coaxial high-definition video monitoring test, supporting 720p 25/30fps/ 1080p 25/30fps, 5MP, 8MP resolution camera image testing
9. CVI camera testing, CVI coaxial high-definition video monitoring test, supporting 720p 25/30fps/ 1080p 25/30fps, 4MP, 5MP, 8MP resolution camera image testing

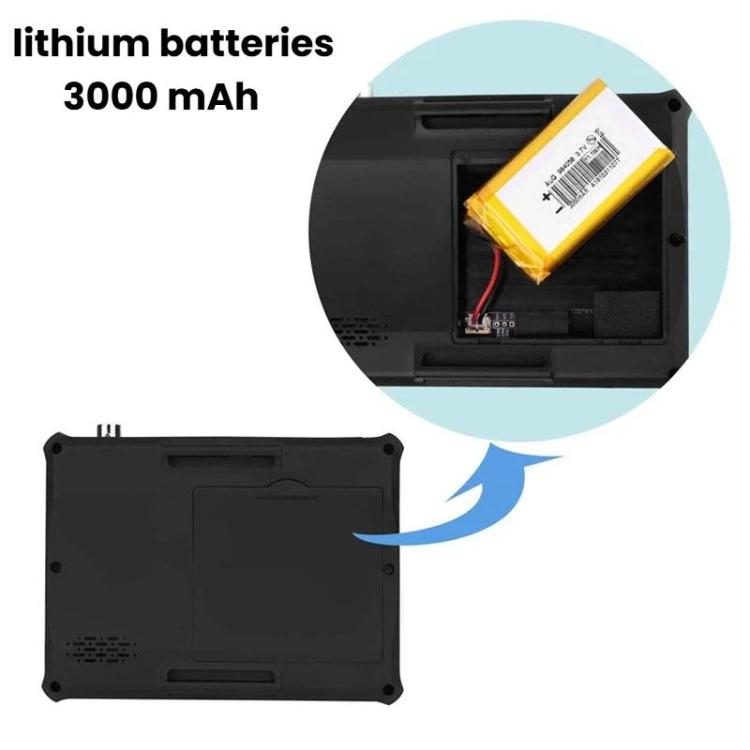

10. Battery, built-in 3.7V 3000 mAh polymer lithium battery, one charge lasts for 2-4 hours, can be used normally for about 6 hours (excluding CCD power output)

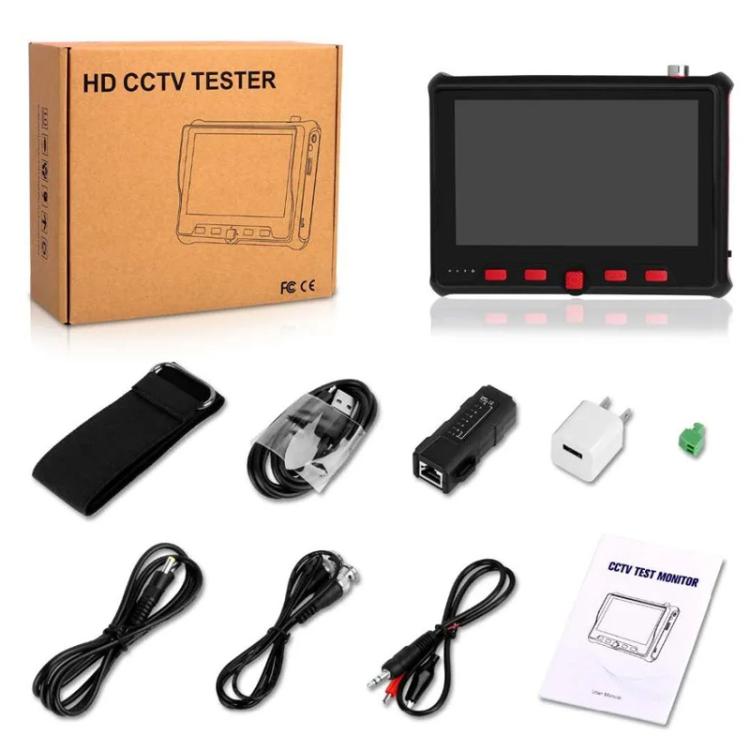

Packaging list:
- Main unit x 1
- Charging head x 1
- Charging cable x 1
- Serial port x 1
- Instruction manual x 1
- RS485 control cable x 1
- Audio test cable x 1
- Component x 1
- BNC video cable x 1
- Crocodile clip x 1
- Rope x 1
