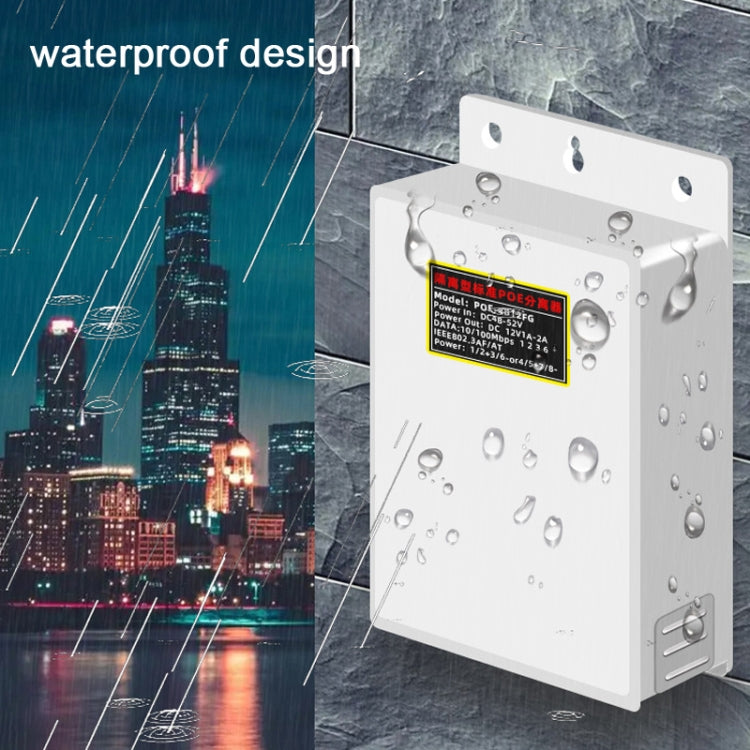

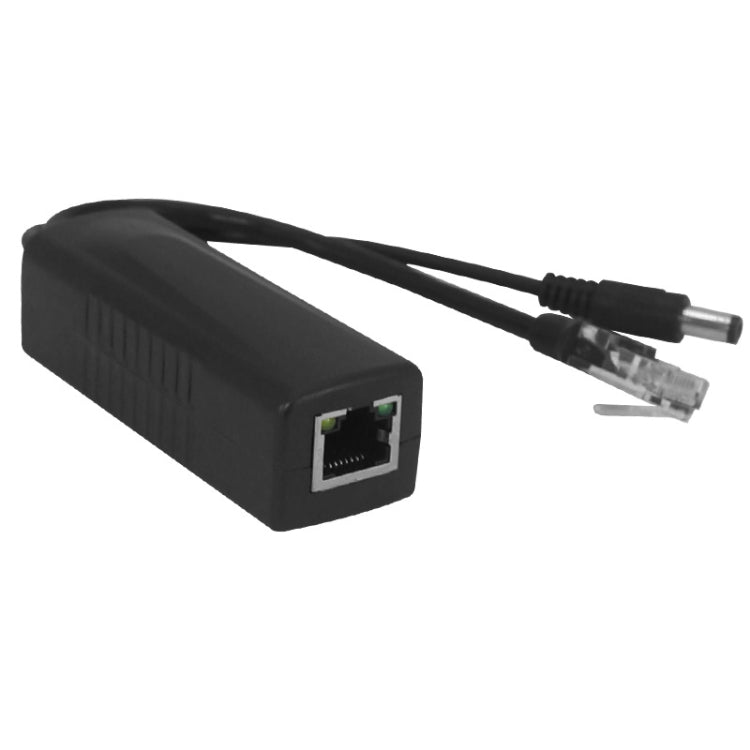

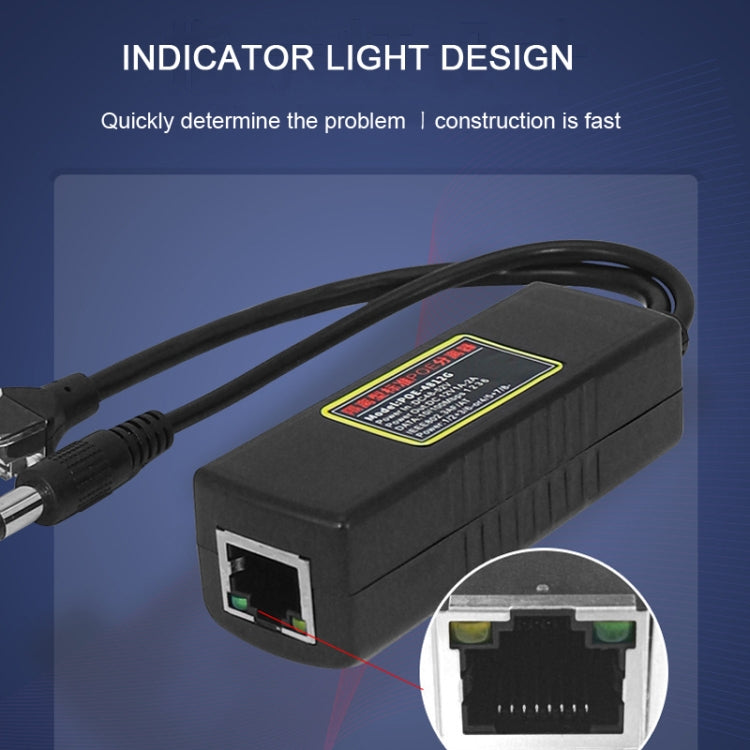

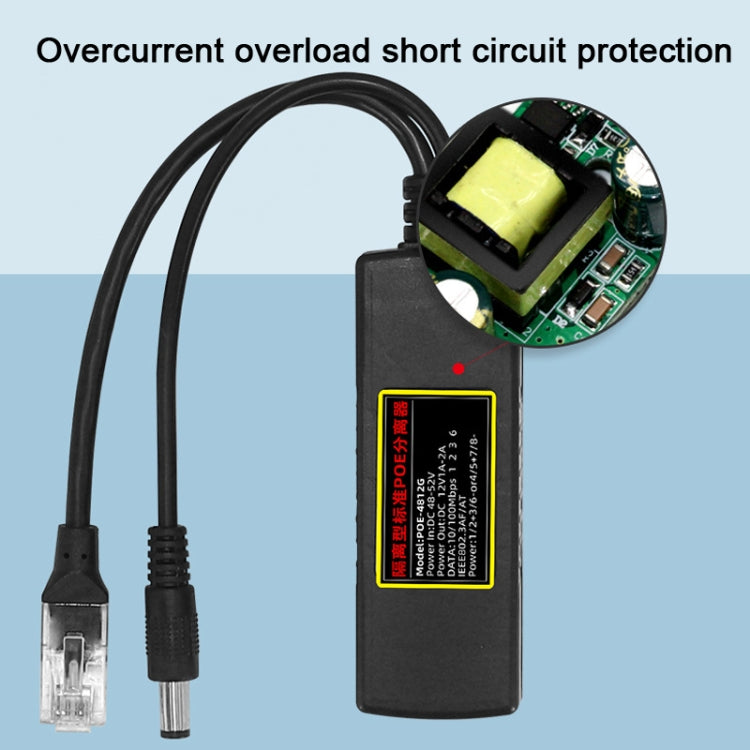

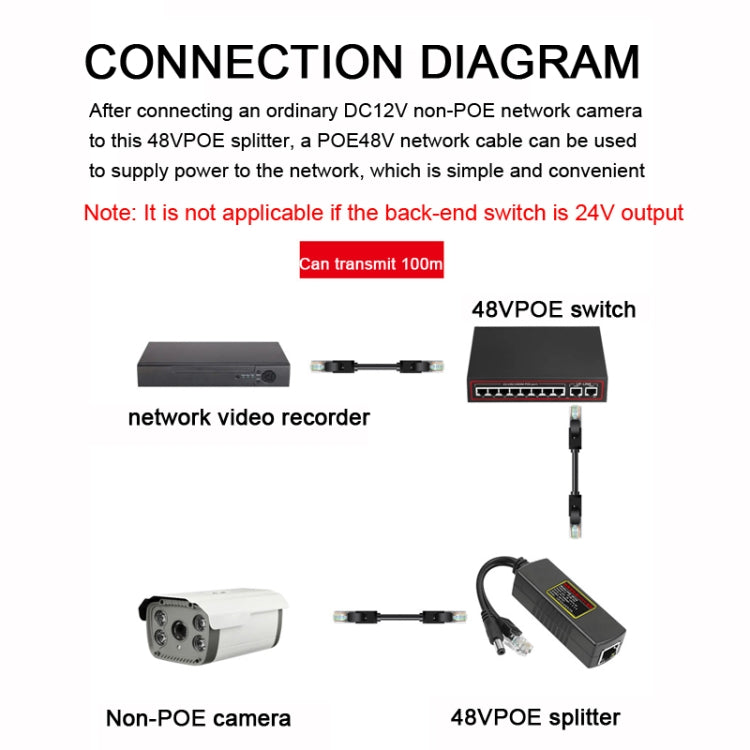

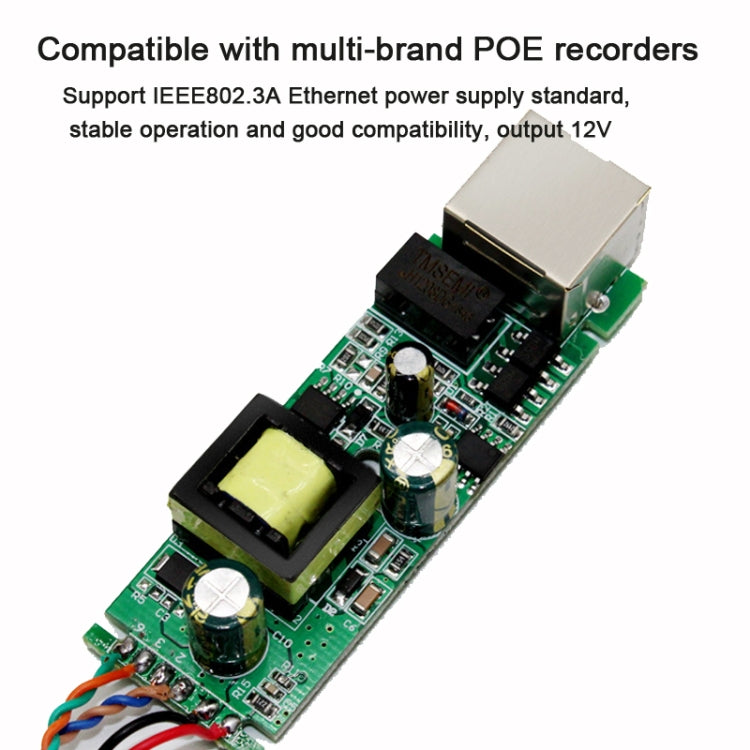

1. 48V to 12V isolated POE splitter, fast response, stable and not dropped, general camera/bridge/access control/wireless APP, etc. 2. Over-current and overload, short-circuit protection, prevent instantaneous high-voltage current impact from burning equipment, stable power supply to ensure transmission quality 3. Indicator light design, quickly identify problems 4. Waterproof design to prevent rain from damaging the internal components of the device 5. Compatible with multi-brand POE video recorders, supports IEEE802.3A Ethernet power supply standard, stable operation and good compatibility, output 12V 6. After connecting an ordinary DC12V non-POE network camera to this 48VPOE splitter, a single POE48V network cable can be used to supply power to the network, which is simple and convenient (note: the back-end switch is not applicable for 24V output)
Parameter: 1. POE power supply: 15.4W (IEEE802.3af) 2. Voltage input: 44-57V 3. Voltage output: DC12V 4. Output: one RJ45 output interface, one DC output interface 5. Data transfer rate: 10/100Mbps 6. Transmission distance: within 100 meters 7. Protocol standard: IEEE: 802.3110BASE-T, IEEE: 802.3U 100BASE-TX, IEEE: 802.3X Flow Control, IEEE: 802.3af Power over Ethernet 8. LED indicator: DC output power indicator 9. Working temperature: 20-60 degrees Celsius 10. Working temperature: 85%, non-condensing 11. Product size: 80 x 29 x 26mm 12. Product weight: 45g 13. Conversion efficiency: over 95% 14. Data transmission: 1236/4578 power supply
