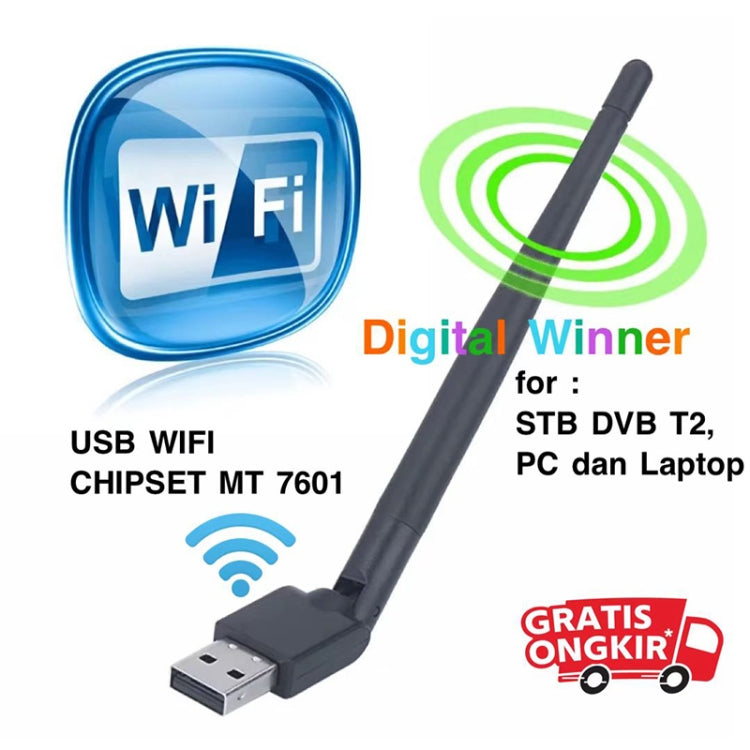

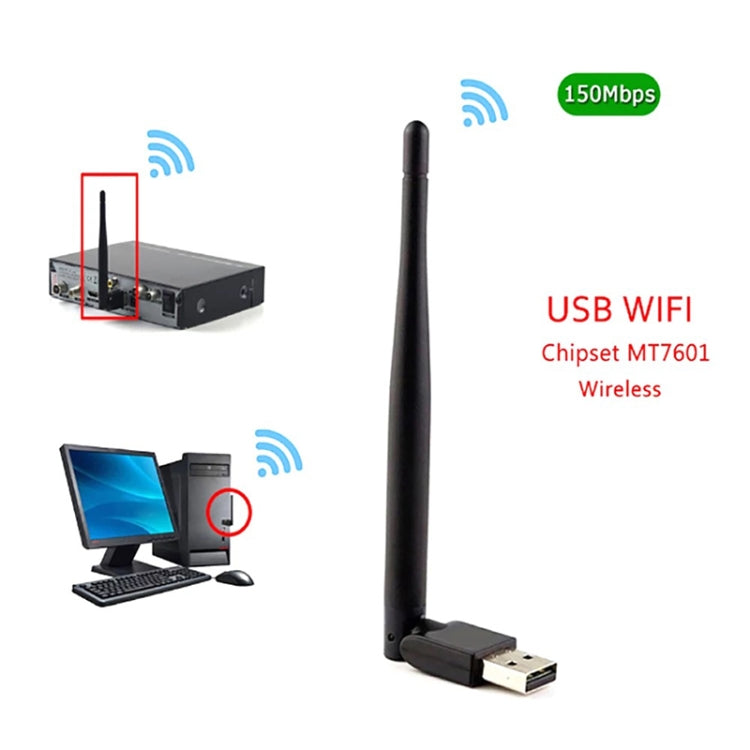

1. Main chip: MT7601
2. Interface type: USB2.0 compatible with USB1.1
3. Frequency range: 2.4-2.4835GHZ
4. Number of working channels: 13
5. RF power: 20dbm

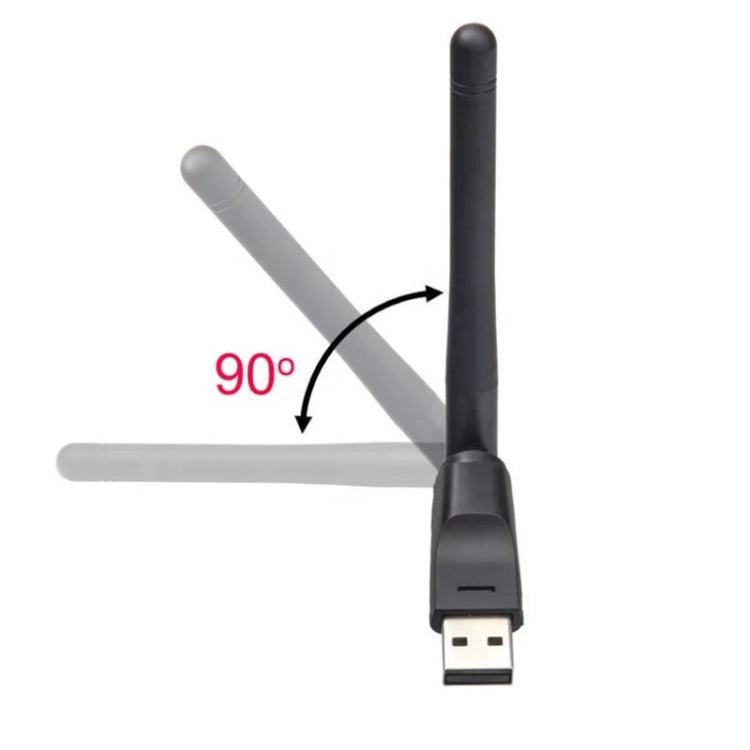

6. Antenna: 2DBI external omnidirectional antenna
7. Supported operating systems: Windows 200/XP/VISTA/Win 7/Win CE/MAC OS/LINUX
8. Working voltage: DC5V +-0.2V
9. Adopt 11N wireless transmission technology, up to 150Mbps
10. Comply with IEEE 802.11n standard and compatible with IEEE 802.11g and IEEE 802.11b standards
11. Adopt MIMO technology and external 2dBi separated omnidirectional antenna design to provide better wireless transmission performance, stability and wireless coverage.
12. Adopt CCA technology to automatically detect the network and automatically change the transmission rate to avoid channel interference
13. 20/40MHz channels coexist, and performance is doubled
14. Support 64/128-bit WEP data encryption, support WPA/WPA2 and other encryption methods
15. Supports connection settings, so you no longer need to record cumbersome passwords, and you can automatically connect to the Internet when you turn on the computer.
16. It has a priority service function to ensure priority processing of bandwidth-sensitive data such as video and voice.
Specification:
|
Package Weight
|
| One Package Weight |
0.03kgs / 0.07lb
|
| One Package Size |
16cm * 14cm * 2cm / 6.3inch * 5.51inch * 0.79inch
|
| Carton Weight |
6.40kgs / 14.11lb
|
| Carton Size |
50cm * 44cm * 42cm / 19.69inch * 17.32inch * 16.54inch
|
| Loading Container |
20GP: 288 cartons * 180 pcs = 51840 pcs
40HQ: 669 cartons * 180 pcs = 120420 pcs
|
|
