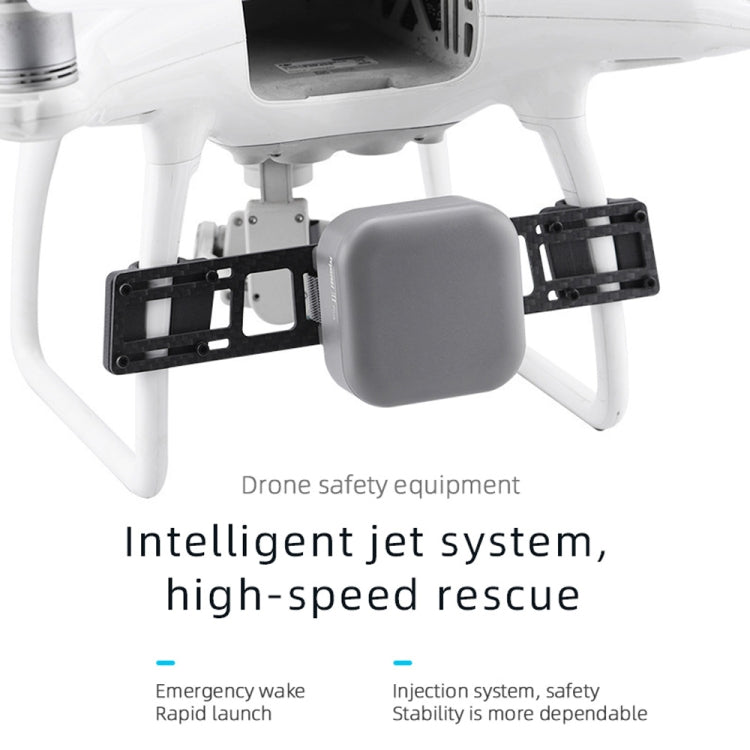

1. Intelligent safety parachute, high-speed rescue, buzzer warning and positioning
2. Manti 3 Plus has a built-in electronic flight recorder, which can record UAV flight and performance parameters. The information recorded by the recorder can be used for UAV flight accident analysis, reproduce the accident process, and analyze the cause of the accident concretely (built-in 150mm An battery, working time 4 hours, 1GB data storage)
3. Dual sensor data fusion: horizontal and vertical activation, effectively avoiding propeller entanglement, and reducing the additional risk of bombing caused by rescue triggers
4. The flight attitude can accurately identify the danger and omnidirectional perception, and can respond to the dangerous situation in the fastest 0.5 seconds, so as to judge the opening of the parachute, it needs to cooperate with the inner eight to stop the propeller, so that the machine can make a safe landing
5. To upgrade the DFU firmware, you need to download the desktop version of the Firefly software, and you can manually select the model to match the firmware
6. There is a silicone pad design at the bottom of the parachute main unit, which can effectively prevent the drone from being scratched
7. The capsule of Manti 3 Plus is for one-time use. After the parachute is opened, the capsule needs to be replaced before it can be used.

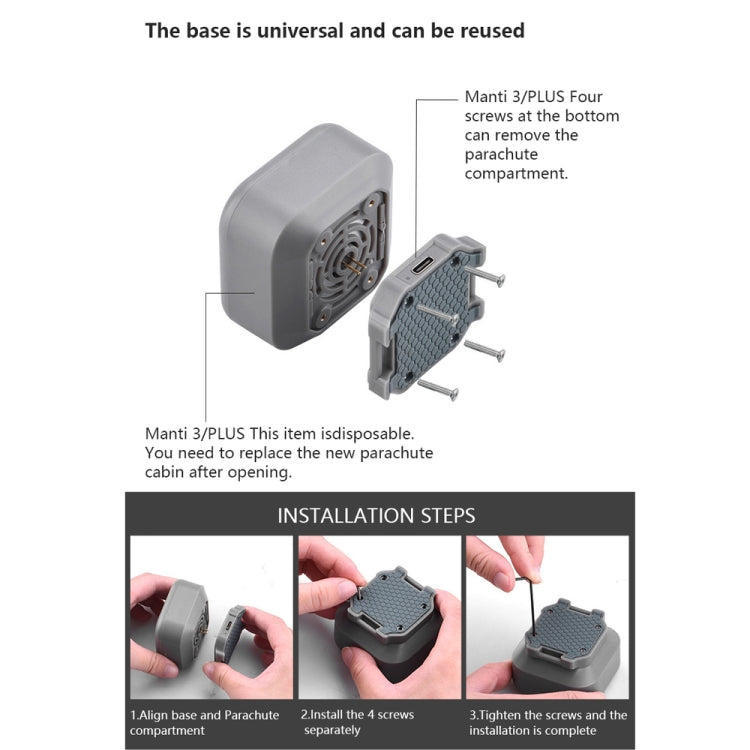

8. When installing, please be careful not to cover the battery switch and the sensor below
Parameter:
1. Speed reduction: 5.5m/s
2. Normal working hours: 4 hours
3. Working temperature: -10-60 degrees Celsius
4. Response time: 100 milliseconds
5. Response distance: 8 meters
6. Working altitude: less than or equal to 4000 meters
7. Charging voltage: 5V 1A
8. Equivalent drop distance: 1.6 meters and below
9. Consumable parts: Manti 3 Plus canopy
10. Buzzer: Yes
11. Firmware upgrade: support (DFU)
12. On-board detection: support (6 meters above the ground to enter the alert mode, only after entering the alert mode can the flight accident be detected and the parachute opened)
13. Note: When adapting the parachute to the Phantom series UAV, the software version must be replaced with the Phantom professional version.
Product information:
- Main material: PC
- Net weight: 115.8g
- Dimensions: 6 x 6 x 4.2cm (parachute host)/18.1 x 3.2cm (hanger)
- Applicable models: suitable for DJI Phantom 2/3/4
Packing list:
Parachute host x 1
straps × 3
Charging cable × 1
screw × 8
screwdriver × 1
Nut × 8
Hanging rack × 1
Hanger Buckle × 2
instruction manual × 1
Specification:
|
Package Weight
|
| One Package Weight |
0.32kgs / 0.71lb
|
| One Package Size |
23cm * 17cm * 11cm / 9.06inch * 6.69inch * 4.33inch
|
| Carton Weight |
4.94kgs / 10.89lb
|
| Carton Size |
48cm * 36cm * 35cm / 18.9inch * 14.17inch * 13.78inch
|
| Loading Container |
20GP: 440 cartons * 12 pcs = 5280 pcs
40HQ: 1023 cartons * 12 pcs = 12276 pcs
|
|
