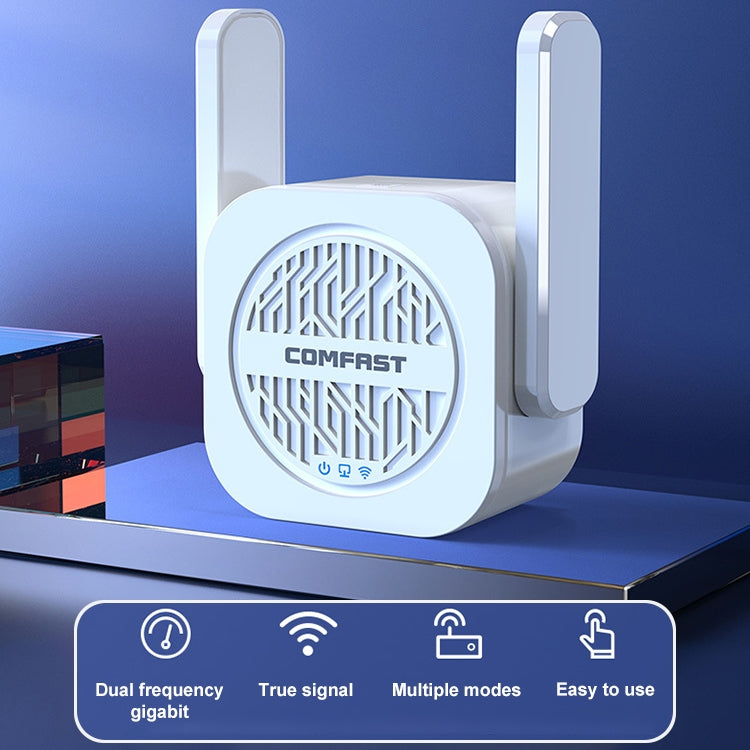

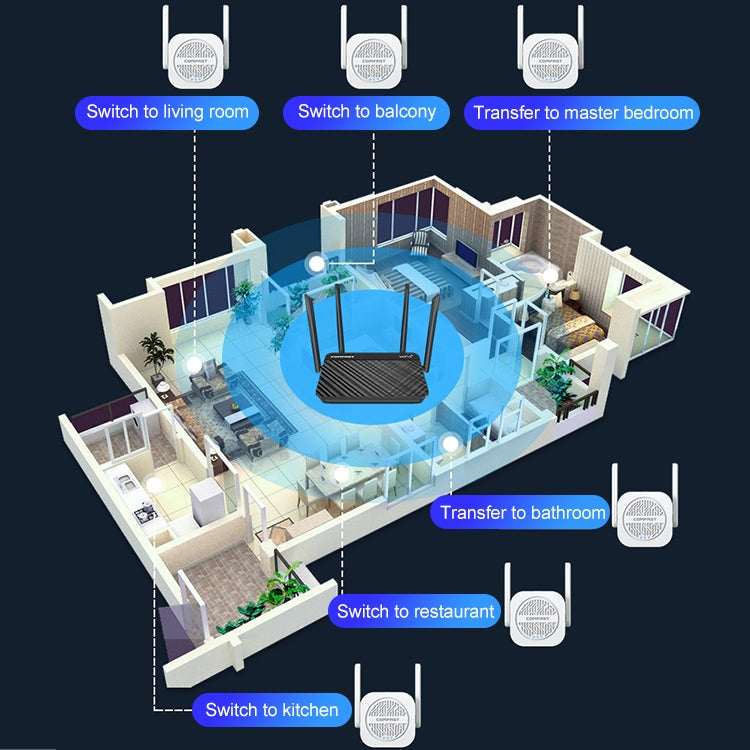

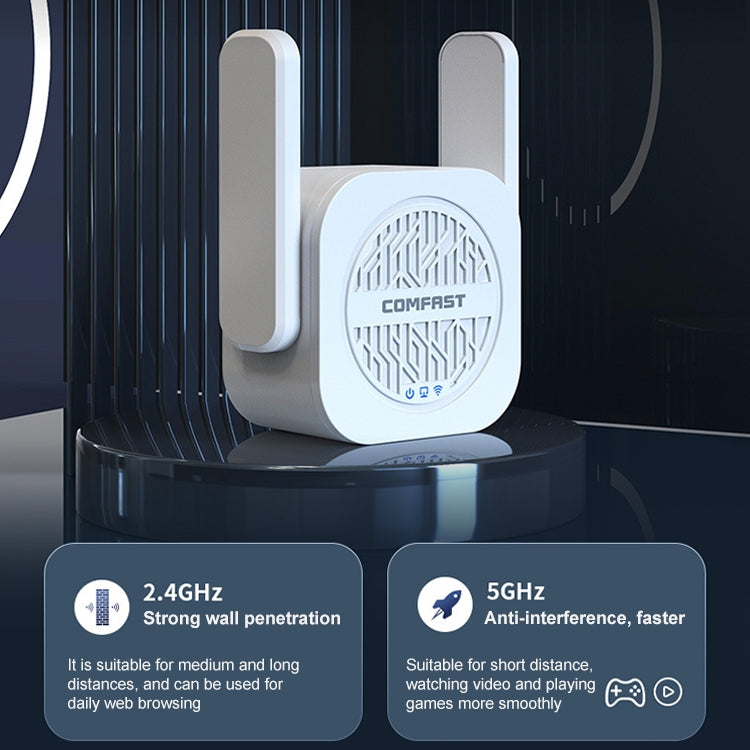

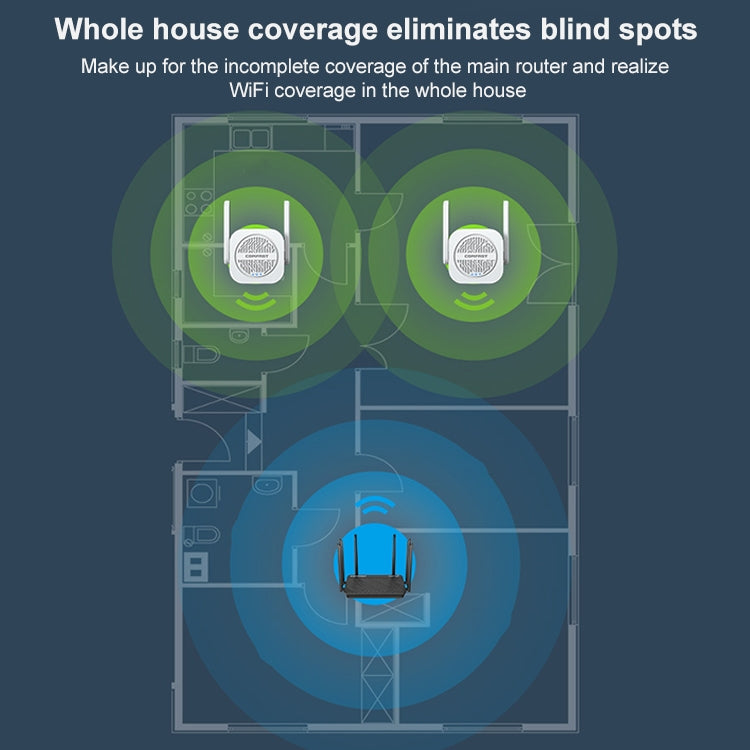

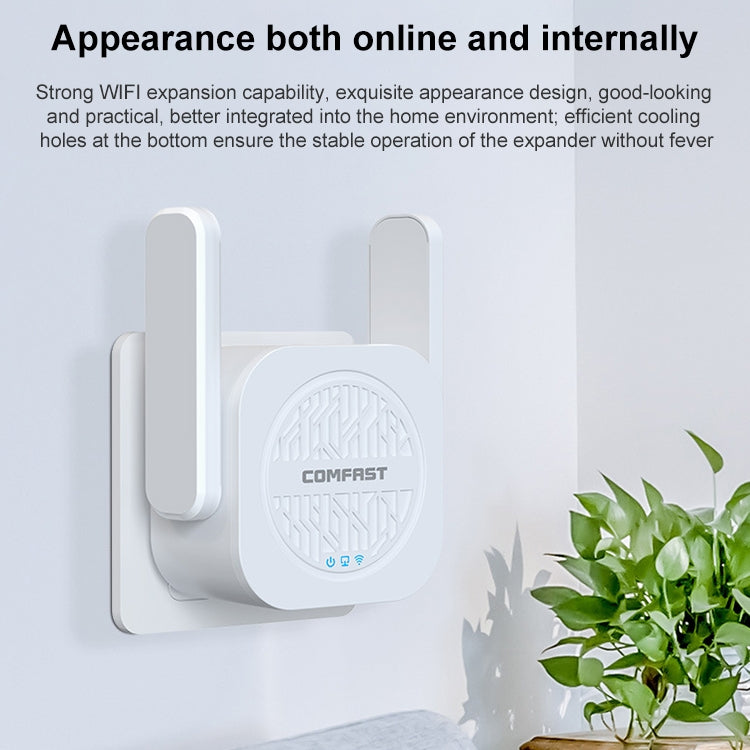

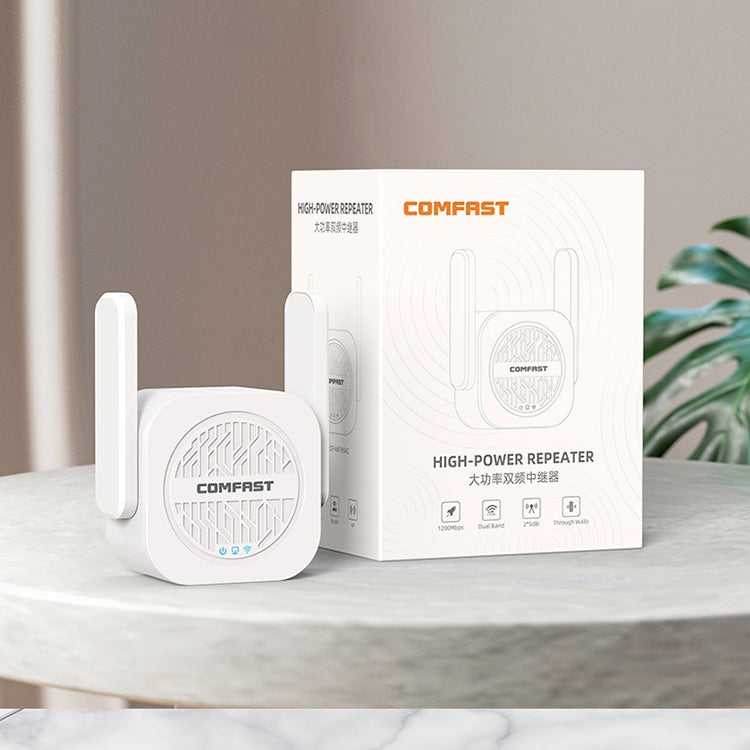

Feature 1. It is a 1200Mbps dual-band WiFi signal amplifier with two high-gain antennas for signal enhancement. 2. Built-in 4xpower amplifier chips, with the use of routers to eliminate home WiFi signal blind spots, to solve the problem of large multi-bedroom area, the house is too large routing coverage, effectively expand the WiFi coverage, achieve real WiFi coverage of the whole house. 3. No need to connect a power adapter, it can be used with a socket, and has a powerful memory function. After the setting is completed, the shell can be plugged and used. 4. Adopt 802.11AC dual-frequency in time, and send out two independent frequency bands at the same time, and the signals do not interfere with each other. 5. Multiple modes, flexible settings: - Repeater mode (wireless to wireless): expand the WiFi signal of the main router, and clear the dead spots of WiFi. - AP/routing mode (wired to wireless): Connect the network cable to the amplifier to transmit WiFi signals. - Do not worry about not having a network cable (wireless to wired): It has a built-in network port, which can receive wireless to wired, for desktop computers/laptops to connect to the Internet.

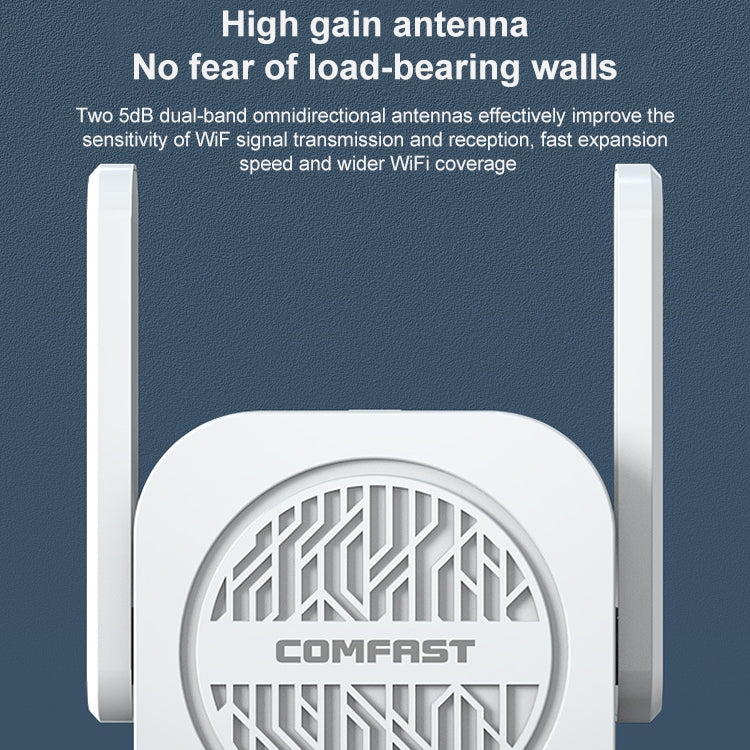

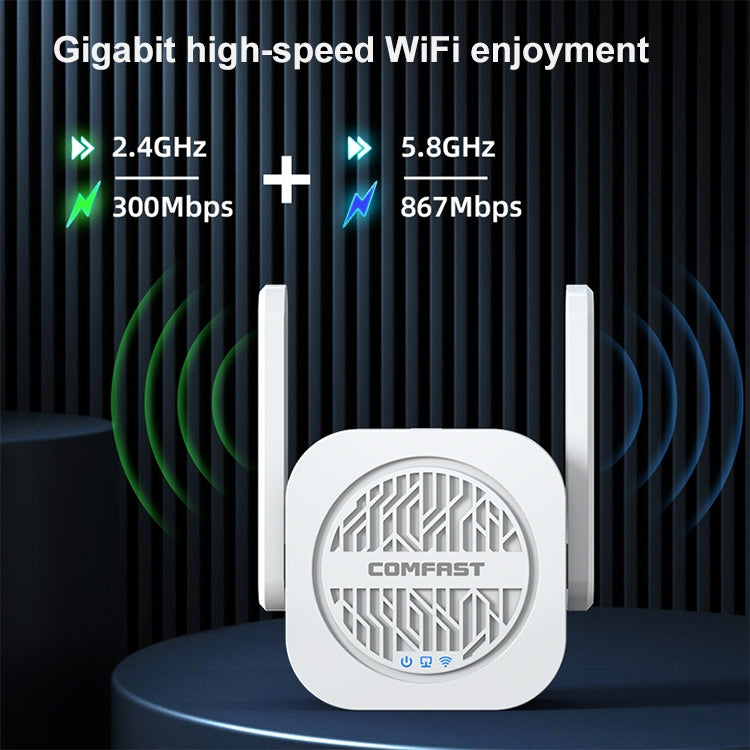

Specifications 1. RF parameters: - Transmitting power: 400mW max - Receive sensitivity: -98dBm max 2. Wireless standard: IEEE802.11a/b/g/n/ac 3. Transmission rate: 2.4GHz: 300Mbps, 5.8GHz: 867Mbps 4. Chip: MT7628DA+MT7613B 5. Memory: 64M, flash memory: 8M 6. Button: 1 RESET button 7. Indicator light: power light, network port light, signal light 8. Antenna gain: 2x5dBi dual-band antenna 9. Power parameters: 100-240V AC 10. Power consumption: 16W max 11. Physical interface: 1x10/100Mbps, RJ45 WAN/LAN Ethernet port 12. Working mode: AP/relay/routing mode 13. Use environment: - Working temperature: -10~55 degrees Celsius - Storage temperature: -40~70 degrees Celsius - Working humidity: 10~90%RH non-condensing - Storage humidity: 5~90%RH non-condensing 14. Size: 129x85x50mm
