1. Intel Be200NGW chip, stable performance
2. Transmission rate 8774Mbps, three frequency bands: 2.4GHz: 574Mbps; 5.8GHz: 2400Mbps; third frequency band: 5800Mbps
3. Bluetooth 5.4, maximum speed up to 5.2Gbps
4. New generation WiFi7 protocol, M.2 interface;
5. Support Windows 10/11, Linux system

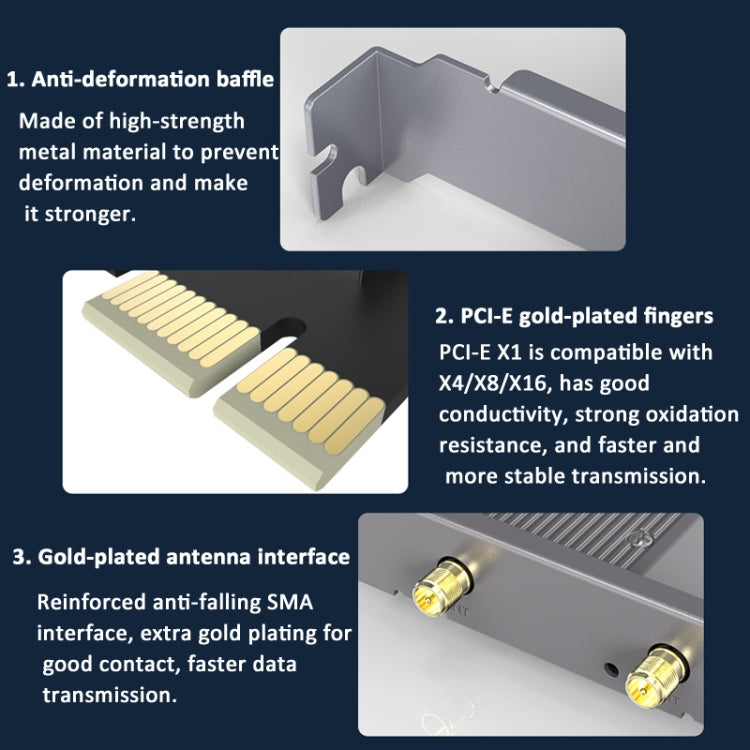

6. Interface support: PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X, graphics card slot
7. WPA3 encryption technology ensures Internet security
8. Support MU-MIMO technology, low latency and high throughput, improved network speed, and rejection of lags and delays.

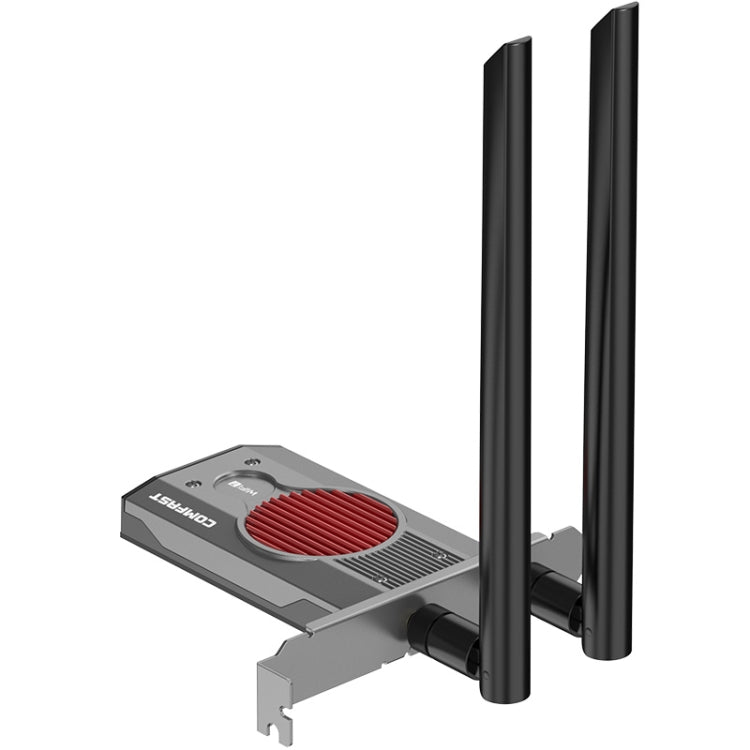

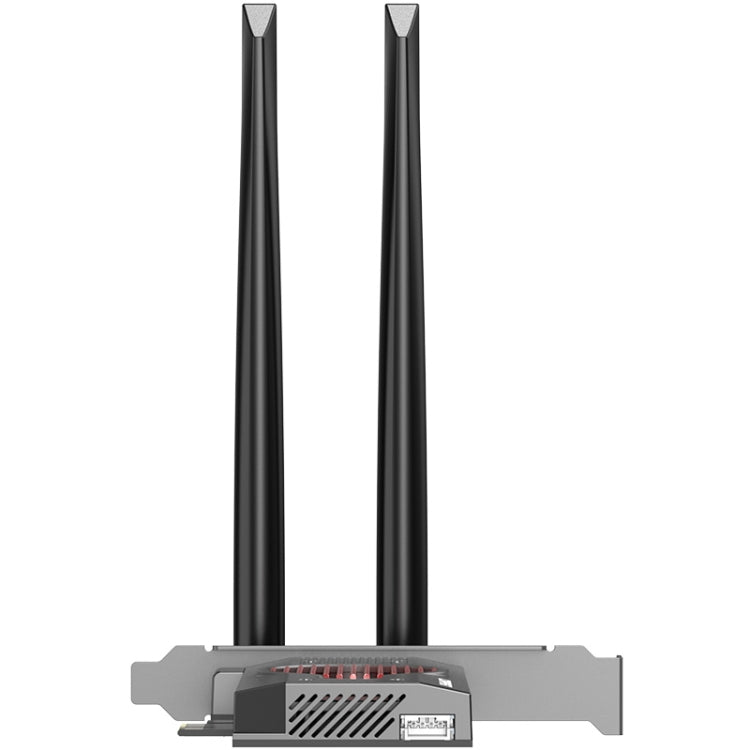

9. Two external high-gain omnidirectional antennas for faster and stronger transmission speed

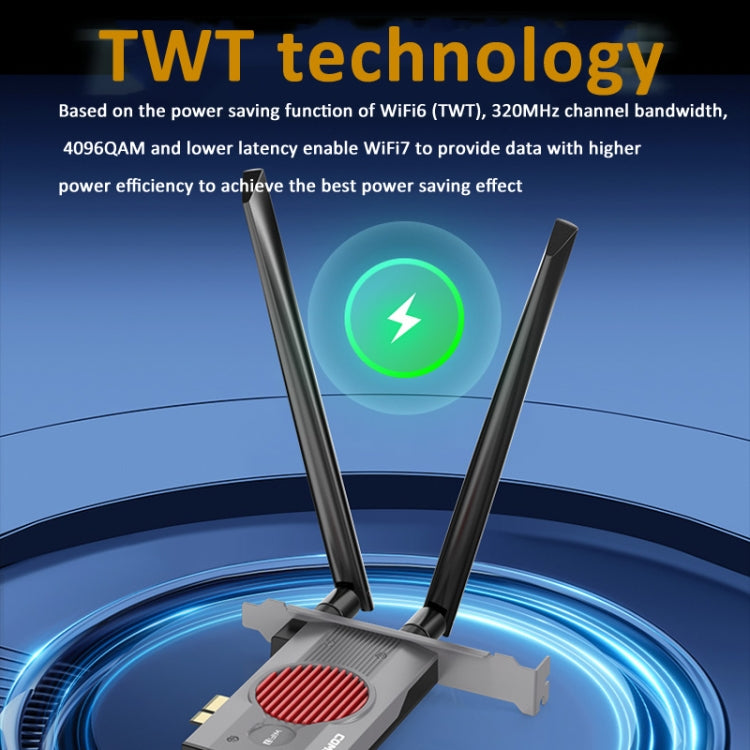

10. Low power consumption: Based on the power saving function of WiFi6 (TWT), 320MHz channel bandwidth, 4096QAM and lower latency enable WiFi7 to provide data with higher power efficiency, saving energy and being more environmentally friendly
Parameter:
1. Hardware specifications: Intel Wi-Fi 7 BE200NGW
2. Wireless standards: support IEEE802.11a/b/g/n/ac/ax/be standards
3. Bluetooth version: Bluetooth 5.4
4. Scope of application: desktop computers
5. Interface support: PCIE-X1
6. Wireless speed: 2.4GHz: 574Mbps; 5.8GHz: 2400Mbps; third frequency band: 5800Mbps
7. System support: Windows10 (32-bit, 64-bit) / 11 (64-bit), Linux
8. Encryption method: WPA-PSK/WPA2-PSK, WPA/WPA2/WPA3

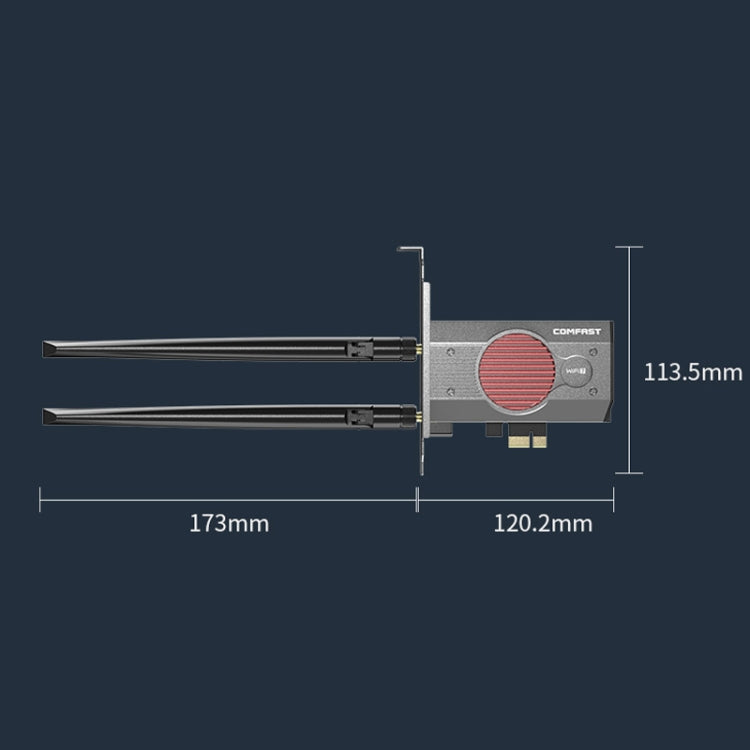

9. Product size: 120.2 (length) x 113.5 (width) x 22 (thickness) mm; antenna length 173mm

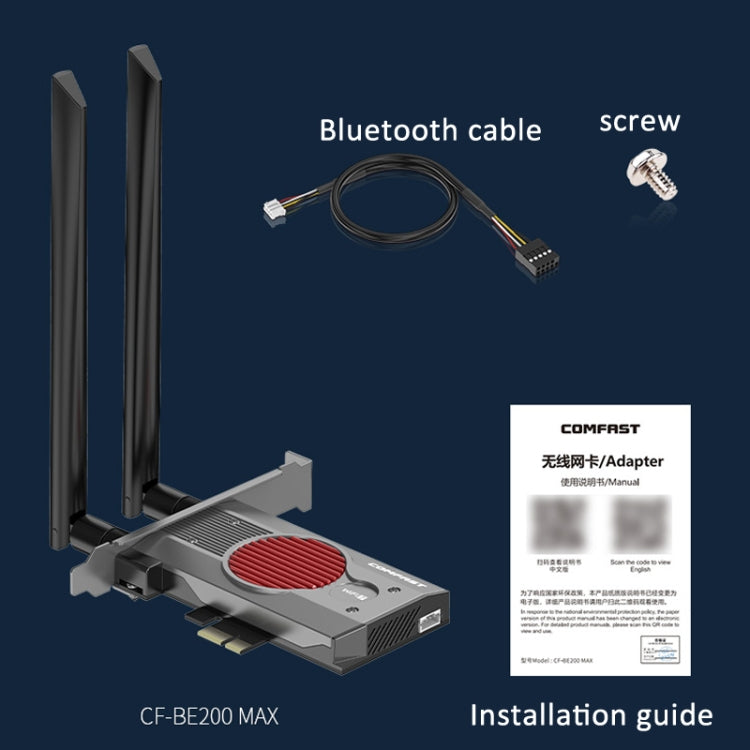

Packing list: wireless network card, screws, Bluetooth cable, manual
Specification:
|
Package Weight
|
| One Package Weight |
0.29kgs / 0.63lb
|
| One Package Size |
20cm * 13cm * 4cm / 7.87inch * 5.12inch * 1.57inch
|
| Carton Weight |
20.97kgs / 46.23lb
|
| Carton Size |
55cm * 35cm * 43cm / 21.65inch * 13.78inch * 16.93inch
|
| Loading Container |
20GP: 322 cartons * 80 pcs = 25760 pcs
40HQ: 747 cartons * 80 pcs = 59760 pcs
|
|
