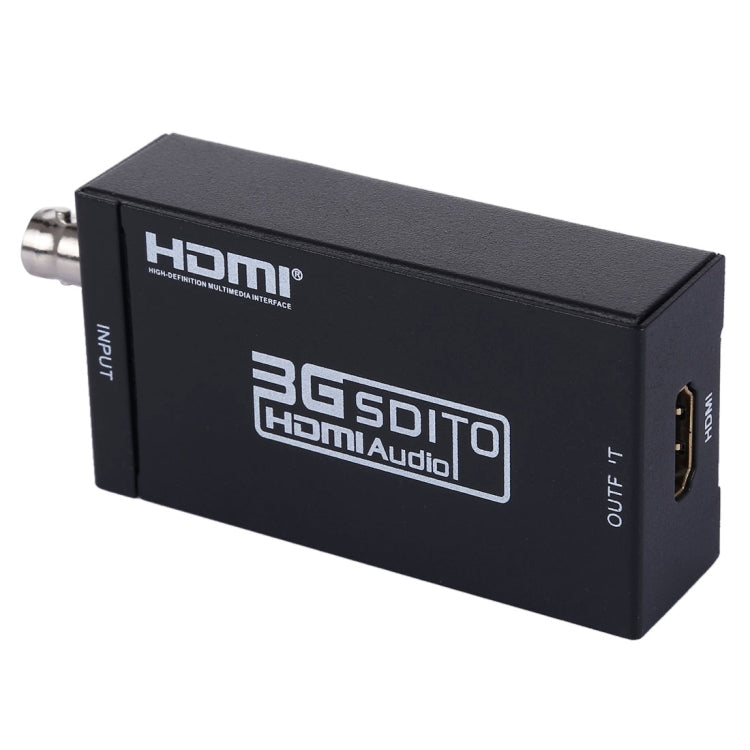

About that product: MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be displayed on HDMI displays while ensuring a high bit rate of 2.970 Gbit / s, thus providing you with fast signal transmission without any loss . For professionals, this means that with the built-in HDMI converter, it is now easier to distribute and extend 3G SDI signals, while enabling you to display your work on HDMI displays.
Feature: 1. Run at speeds of 2.970Gbit / s, 1.485Gbit / s and 270Mbit / s 2. Support SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C 3. Loop output integrated audio de-embedder with equalization and retime, up to 8 channels, 48 a??a??KHz audio 4. From SMPTE 425M Class B to Class A 1080p 50 / 59.94 / 60 4: 2: 2 10-bit conversion 5. Connect with other devices to extend the signal distance
Parameter: 1. Input port: 1 x BNC (SDI / HD-SDI / 3G-SDI) 2. Output port: 1 x HDMI 3. SDI transmission rate: 2.970 Gbit / s and 2.970 / 1.001 Gbit / s 4. Input / output resolution: 480i, 576i, 720p @ 50 / 59.94, 60, 1080i @ 50 / 59.94 / 60 1080p@23.97/24/25/29.97/30/50/59.94/60 5. Power supply: DC 5V -12V 6. ESD protection human body model: ?± 8kV (air gap discharge), ?± 4kV (contact discharge) 7. Dimensions: 80mm x 41mm x 22.5 mm 8. Weight: 102g 9. Operating temperature: 0 ?° C-40 ?° C / 32 ?° F-104 ?° F 10. Storage temperature: -20 degrees Celsius -60 degrees Celsius / -4 degrees Fahrenheit -140 degrees Fahrenheit 11. Power consumption: up to 5W
Packing list: 3G SDI to HDMI converter x 1 5V DC power adapter x 1 Operation Manual x 1
