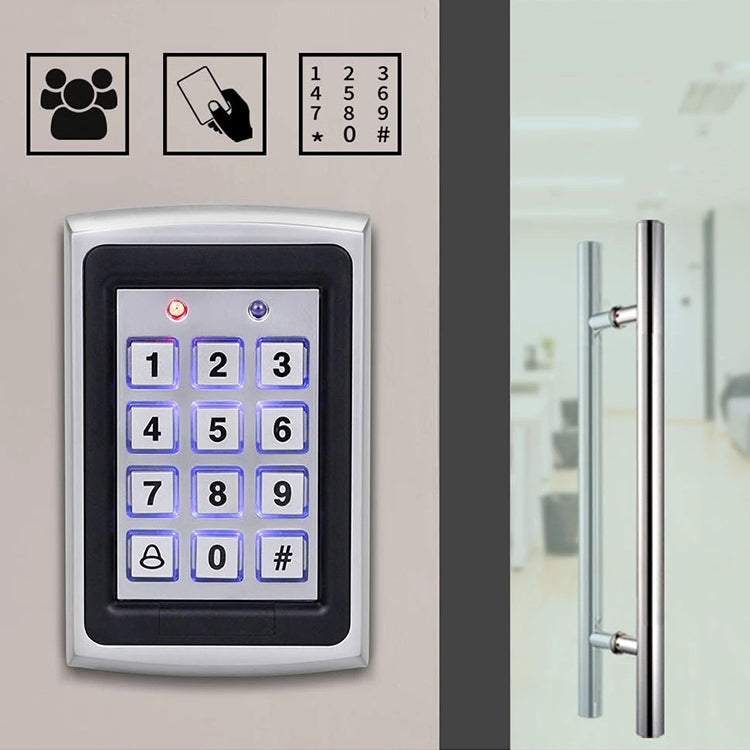

This is a vandal resistant proximity card and keypad access control unit suitable for external applications. The unit accepts up to 500 users and provides entry via the use of proximity cards and/or pin codes.
Technical Specification: 1. Operating Voltage: 12VDC From a Regulated Power Supply Input current: Standby: 40mA Not including attached devices Max: 130mA Not including attached devices 2. Outputs: Lock Strike Relay From C, 5A Auxiliary Relay From C, 5A LockStrike Control Output Collector Open Output (25mA) Auxiliary Control Output Collector Open Output (25mA) 3. Inputs: REX: N.O.,Dry Contact Auxiliary Input (In/Monitor): N.C.,Dry Contact in Monitor Mode: N.O.Dry Contact Input Mode 4. Built-in Proximity reader Read Range: 65mm Modulation: ASK at 125 kHz Compatible Cards: ALL 26-Bit EM Cards 5. Mechanical Characteristics Dimentions: 120L*76W*27Hmm Weight: 450g
Range also depends on electrical environment and proximity to metal.
Features: 1. Built-in Proximity Card Reader (125KHZ ASK Modulation) 2. Built-in Keypad for PIN Code entry 3. Auxiliary Input & Auxiliary Output 4. Eight Auxiliary Modes including: Door Ajar; Forced Door; Shunt; Door Monitor; Normal / Secure 5. Internal Buzzer 6. Two Status/Programming Interface LEDS 7. Two Modes of Operation: Normal Mode; Secure Mode 8. Three User Levers: Normal User; Secure User; Master User 9. Four Open door mode: 4 digit Pin Code; 4 digit Pin Code & EM Card; 4 digit Pin Code & 1.4 digit Pin Code; EM Card & EM Card 10. Code search Feature that helps make maintaining user codes easier. 11. Built-in Case and Back Tamper Bell, Chime, Siren, Battery Backup, Tamper Output features available with IBA Power Supplies. 12. Programmable Siren Time. 13. Programmable Lock Strike Release Time.
