1. Scope of modification: The spacing of the corresponding sockets on the motherboard is 2.54mm, and the plugs of the original front switch are scattered terminals, not all of them are integrated into a whole
2. This extension switch has complete power-on and reboot functions, and the POWER LED and HDD LED are embodied in the external switch

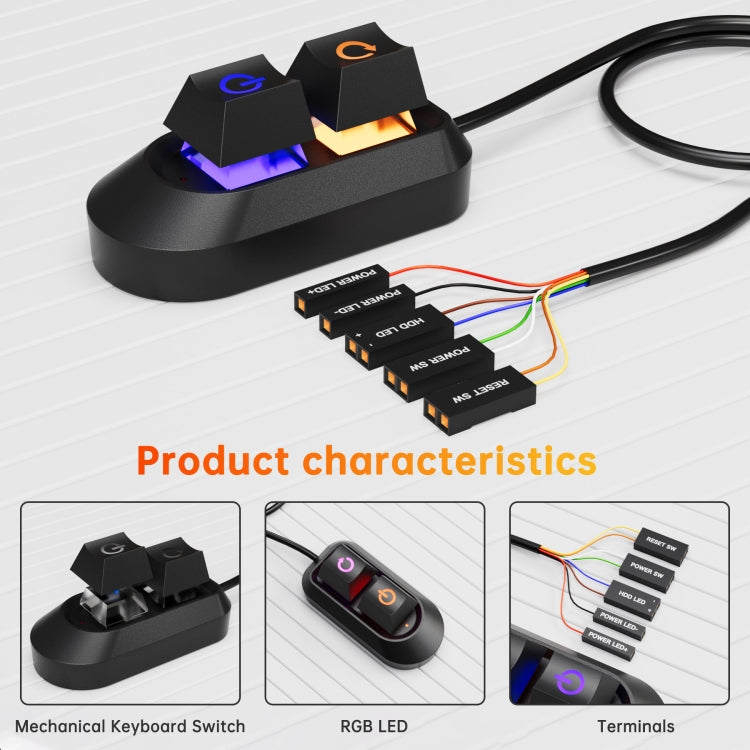

3. The more frequent use of the on button is placed at the end of the product, the less frequent use of the reboot button is placed in the upper position, the power indicator is reflected in the keycap below the seven-color self-cycling light effect, the hard disk indicator through the end of the product through the small hole view
4. Cable length: about 2m
5. Weight: about 56g
6. Size: about 65 x 32 x 27.5mm
Installation instructions:
1. The first arrangement is to connect the terminal wires of this switch directly to the corresponding positions of the F_PANEL socket on the motherboard, only using the new switch
2. If you want to keep the switch restart function on the original front panel, you can use the equipped adapter to shunt the switch, that is, each function is divided into two wiring with the same function, to ensure that the original function and the function on the new external switch can be used
3. The switch can be placed in the appropriate position according to the needs, or can be used with the double-sided adhesive pads to stick to the desired position
Package list:
- External extension switch x 1
- Adapter x 1
- Double-sided adhesive pad x 2
- Ties x 2
- Instruction manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.10kgs / 0.23lb
|
| One Package Size |
13cm * 10cm * 5cm / 5.12inch * 3.94inch * 1.97inch
|
| Carton Weight |
14.00kgs / 30.86lb
|
| Carton Size |
50cm * 38cm * 35cm / 19.69inch * 14.96inch * 13.78inch
|
| Loading Container |
20GP: 401 cartons * 130 pcs = 52130 pcs
40HQ: 930 cartons * 130 pcs = 120900 pcs
|
|
