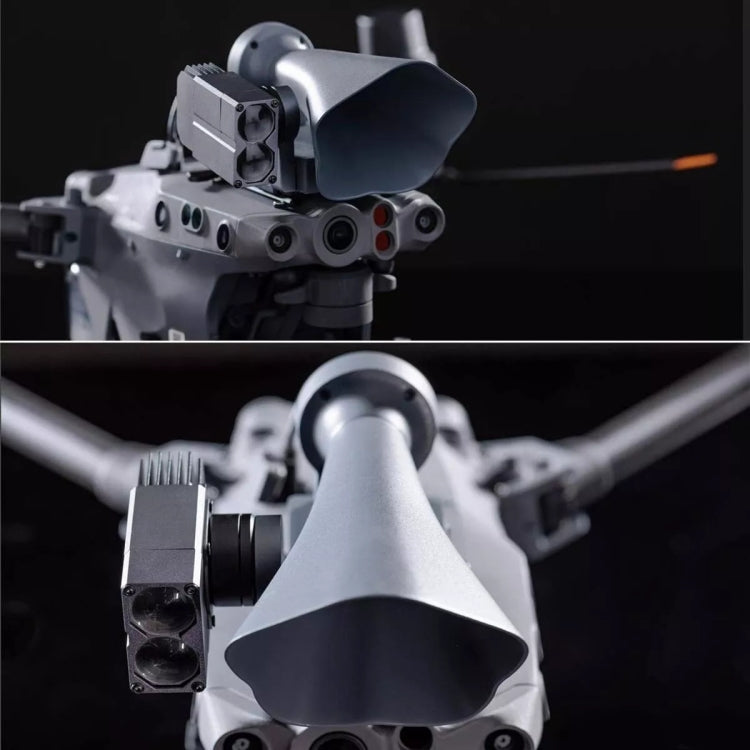

1. The LP12 searchlight broadcast system is a two-in-one searchlight and speaker payload designed for the DJI M30 drone.
2. With the design concept of fluid aesthetics, it challenges the performance limit while taking into account artistic taste, and can effectively reduce wind resistance and improve the endurance of drone flight operations.
3. The LP12 integrates the imaging optical technology of the GL series gimbal searchlight and the LRAD long-distance speaker technology of the MP series digital voice broadcast system, and its size and weight are extremely light. It weighs only 270 grams, with an effective searchlight distance of 100 meters and an effective speaker distance of 200 meters, which can meet the needs of mission scenarios such as security patrols and mountain forest search and rescue.
4. Through deep integration with the DJI Pilot APP, all functions of the speaker and light can be quickly called, making the operation function more convenient.
Parameters:
1. Electrical interface: DJI PSDK
2. Weight: 288g
3. Dimensions: 156 x 109 x 84mm
4. Searchlight power: 30w in normal mode, 40w in strobe mode
5. Speaker power: 15W
6. Supply voltage: 24V
7. Luminous flux: 2122+/-3%lm
8. Searchlight FOV: 13 degrees
9. Spot diameter:
--11.4m (distance: 50m)
--22.8m (distance: 100m)
--29.6m (distance: 130m)
--34m (distance: 150m)
10. Search area:
--102 square meters (distance: 50m)
--407 square meters (distance: 100m)
--688 square meters (distance: 130m)
--917 square meters (distance: 150m)
11. Center illumination
--25Lux (distance: 50m)
--6.3Lux (distance: 100m)
--2.5Lux (distance: 130m)
--1.7Lux (distance: 150m)
12. Controllable pan/tilt rotation range: (synchronized with camera) pitch -120 degrees ~ +45 degrees
13. Peak sound pressure: 122dB
14. Effective broadcast distance:
--200m at 76db
--350m at 69db
15. Shouting method: real-time shouting/recording upload/audio file playback/TTS (regional dialect, multilingual)/background sound
16. Audio format: mp3/wav/m4a/flac/aac
17. App support: DJI Pilot/DJI Pilot2
Specification:
|
Package Weight
|
| One Package Weight |
1.10kgs / 2.43lb
|
| One Package Size |
28cm * 17cm * 35cm / 11.02inch * 6.69inch * 13.78inch
|
| Carton Weight |
1.10kgs / 2.43lb
|
| Carton Size |
28cm * 17cm * 35cm / 11.02inch * 6.69inch * 13.78inch
|
| Loading Container |
20GP: 1600 cartons * 1 pcs = 1600 pcs
40HQ: 3715 cartons * 1 pcs = 3715 pcs
|
|
