Features1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

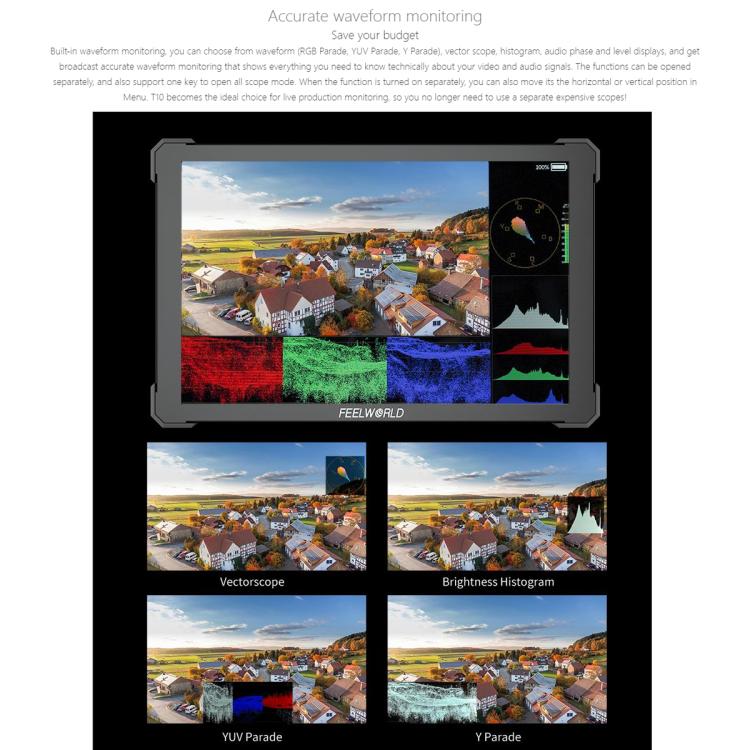

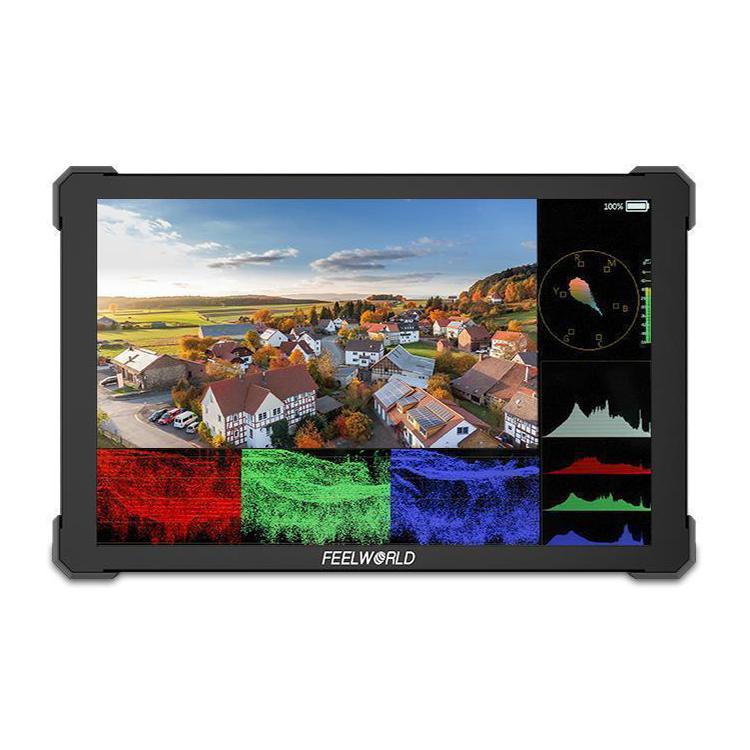

2. Waveform (RGB, YUV, Y)
3. HDR
4. Vector
5. Histogram (RGB1, RGB2, Y)
6. Embedded Audio

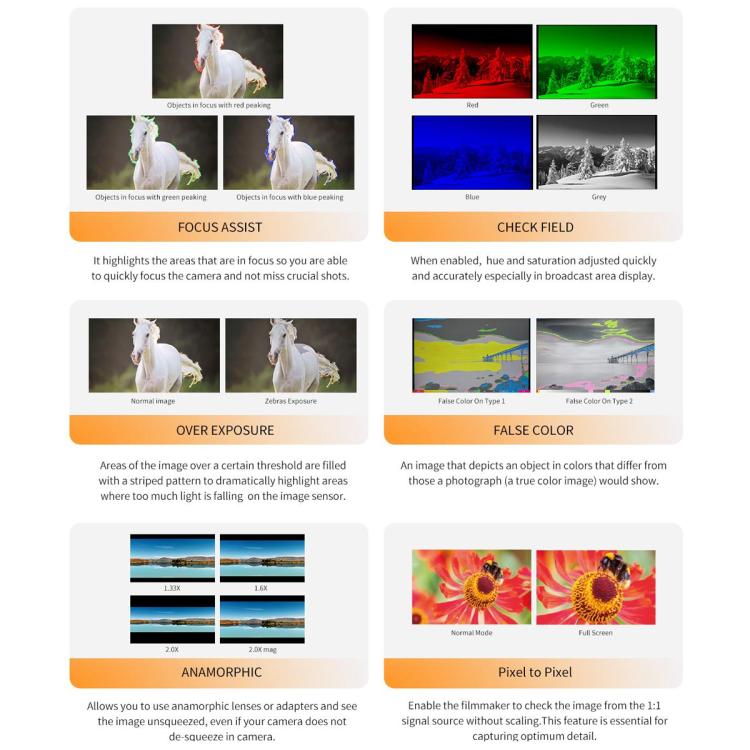

7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10RE~100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Grid (2x2, 3x3, 4x4, 5x5, 6x6,7x7, 8x8,9x9, Custom)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
14. Image Flip ( H Flip, V Flip, H_V Flip )
15. Image Freeze
16. Center Marker
17. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
19. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
20. Marker Color (Red, Green, Blue, Black, White, Gray)

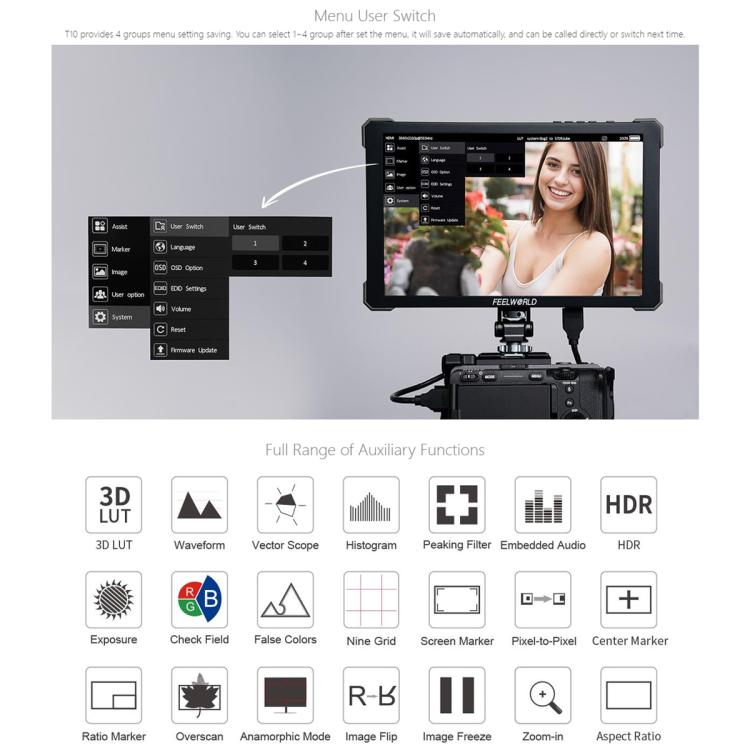

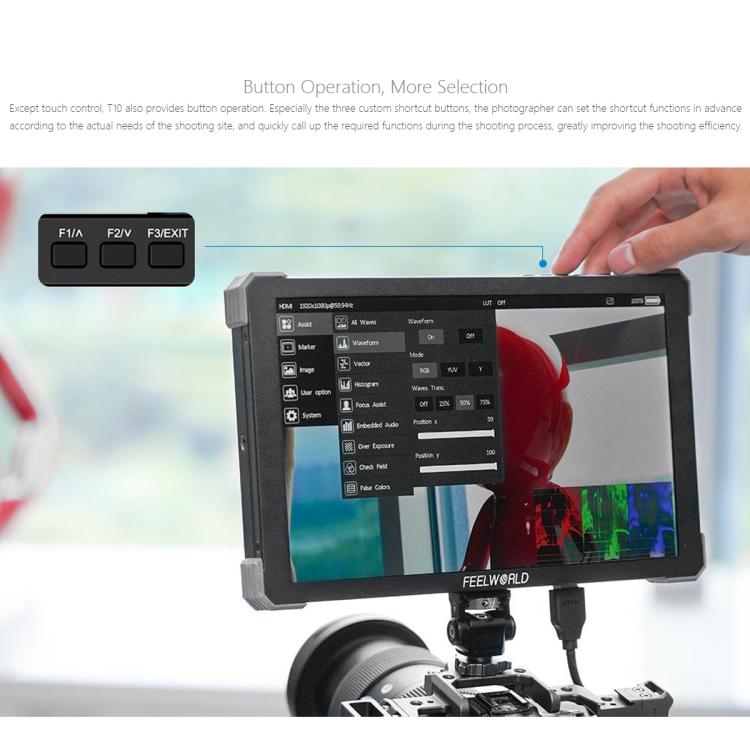

21. User Switch (1-4)
22. Zoom Mode (2X, 4X, 9X, 16X, User)
23. Pixel to Pixel

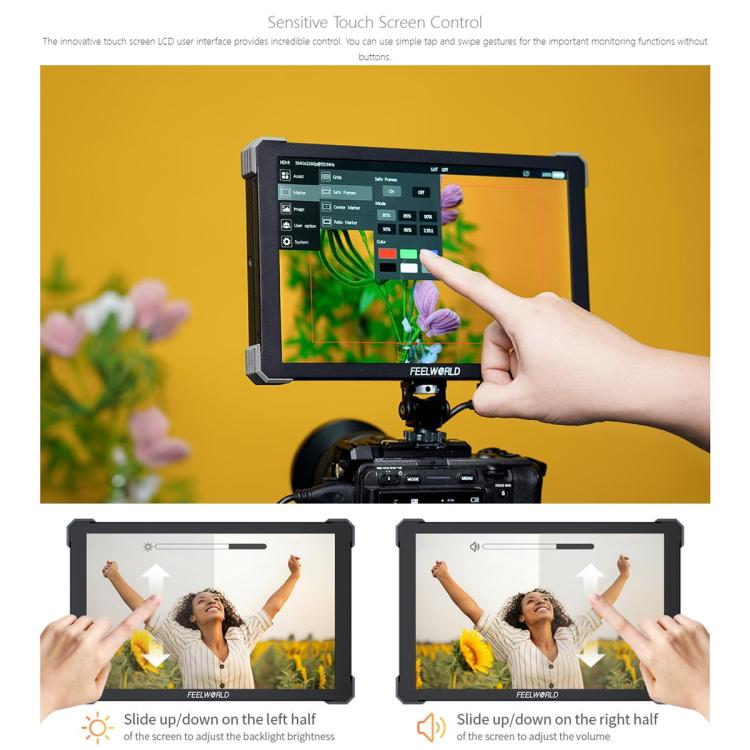

24. Display Adjustment (can be adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100)
25. Display Range(Auto, Limit, Full)
26. Built-in fan(can be adjustable 1~5)
27. Color Temp. ( 5600K, 6500K, 9300K, User. Under the "user", the red, green, and blue values of the image can be adjusted 0~255)
SpecificationsDisplay Spec.

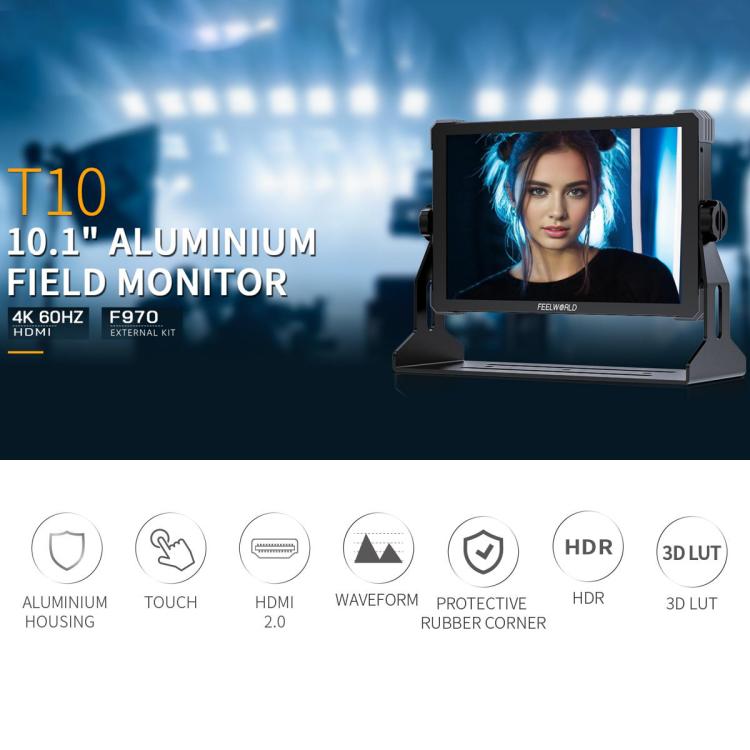

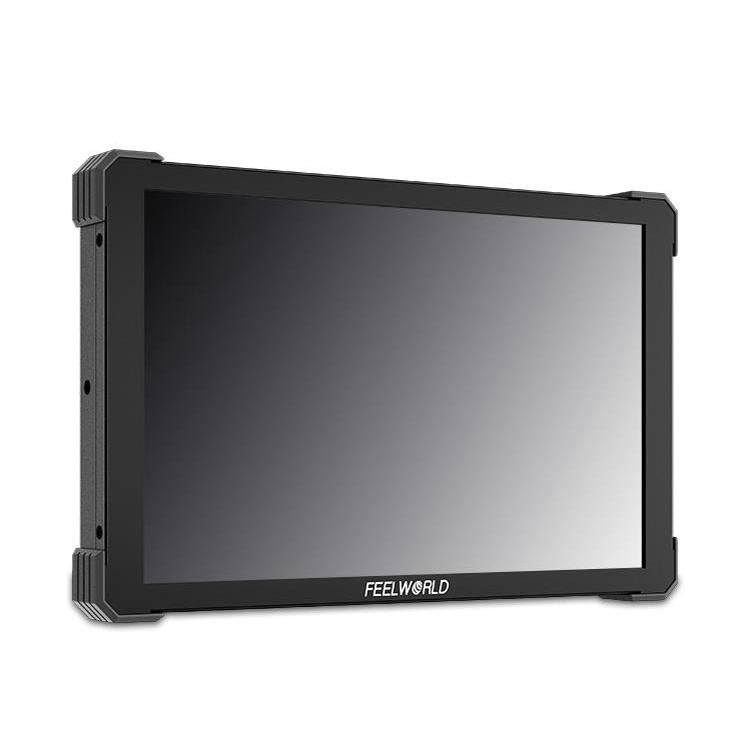

1. Model: T10

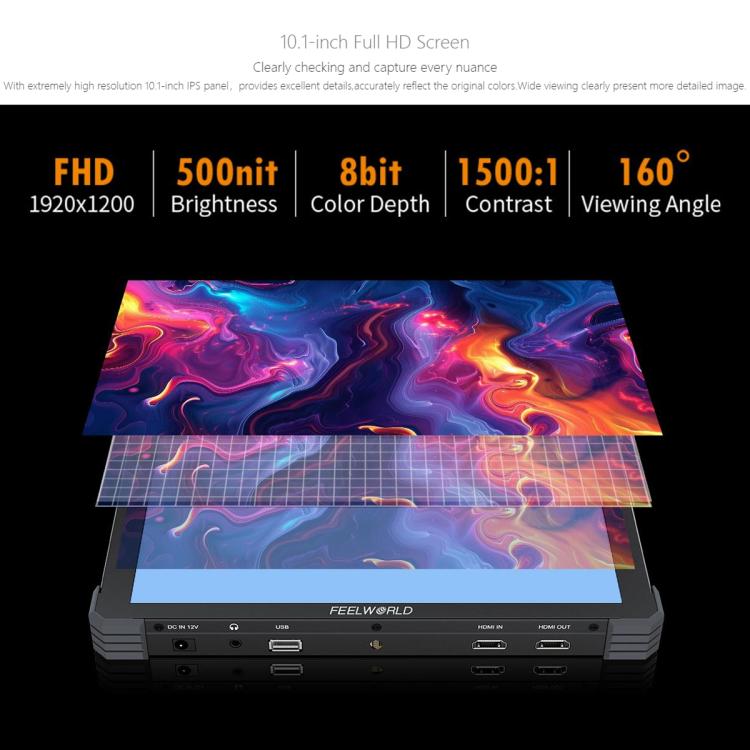

2. Screen Size: 10.1 inch IPS
3. Resolution: 1920 x 1200 pixels
4. Pixel Pitch: 0.1128 (H) x 0.1128 (W) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 500cd/m2
7. Contrast Ratio: 1500:1
8. Backlight: LED
9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D)
Input
1. 1 x HDMI: HDMI 2.0
2. 1 x DC: DC IN 12V (suitbale for Barrel DC 5.5 x 21mm power plug)
3. 1 x USB: USB-A (Firmware update/LUT file upload)
Output
1 x HDMI: HDMI 2.0
Audio
Audio: 3.5mm Stereo Headphone
HDMI Input/ Output Support Format
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29.97/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 3840 x 2160p (60/50/30/29.97/25/24/23.98)
6. 4096 x 2160p (60/50/30/29.97/25/24/23.98)
General:

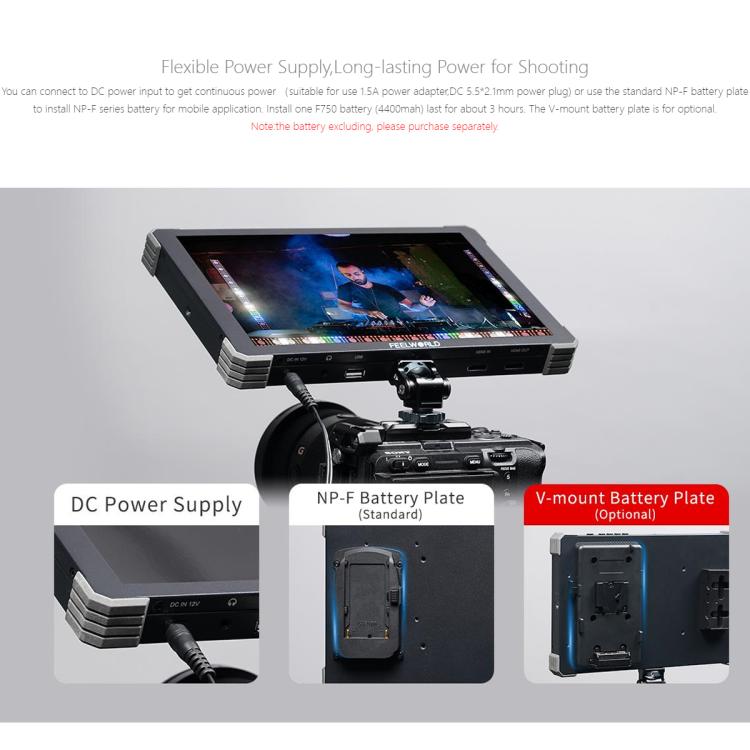

1. Input Voltage: DC 7-24V
2. Power Consumption: Less than or equal to 10W
3. Working Temperature: -10 degree C~60 degree C
4. Storage Temperature: -30 degree C~70 degree C
5. Install Way: 1/4 inch -20 Thread Socket (right, top, bottom)
6. Unit Size: 251.91 x 161.91 x 23.91(mm)
7. Unit Weight: 639g
Package List1. Main unit monitor x 1
2. Micro HDMI cable x 1
3. HDMI cable x 1
4. U-shaped bracket x 1
5. Sunshade x 1
6. Instruction manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
1.56kgs / 3.43lb
|
| One Package Size |
24cm * 16cm * 8cm / 9.45inch * 6.3inch * 3.15inch
|
| Carton Weight |
16.50kgs / 36.38lb
|
| Carton Size |
60cm * 30cm * 48cm / 23.62inch * 11.81inch * 18.9inch
|
| Loading Container |
20GP: 308 cartons * 10 pcs = 3080 pcs
40HQ: 716 cartons * 10 pcs = 7160 pcs
|
|
