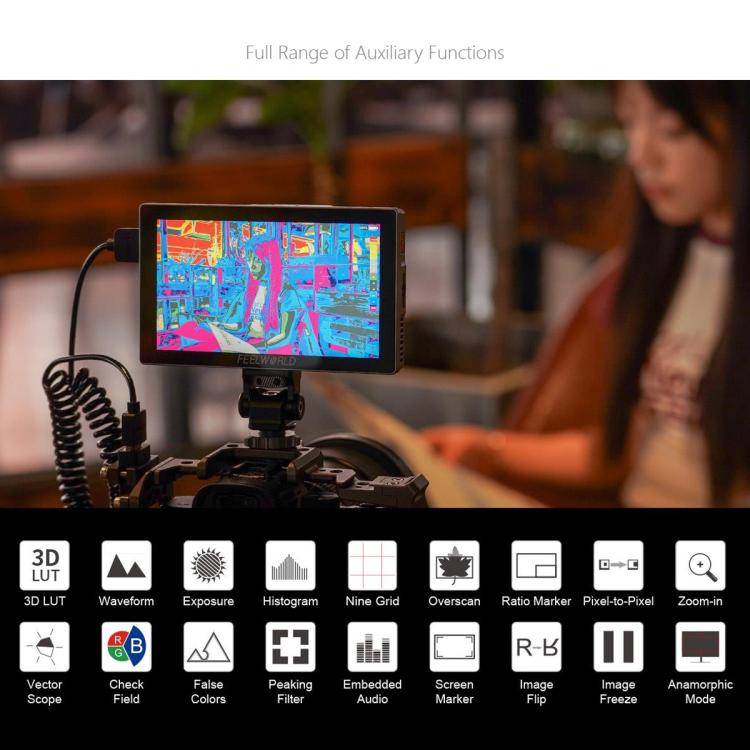

Features1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)
2. Waveform (RGB, YUV, Y)
3. HDR
4. Vector
5. Histogram (RGB1,RGB2,Y)
6. Embedded Audio

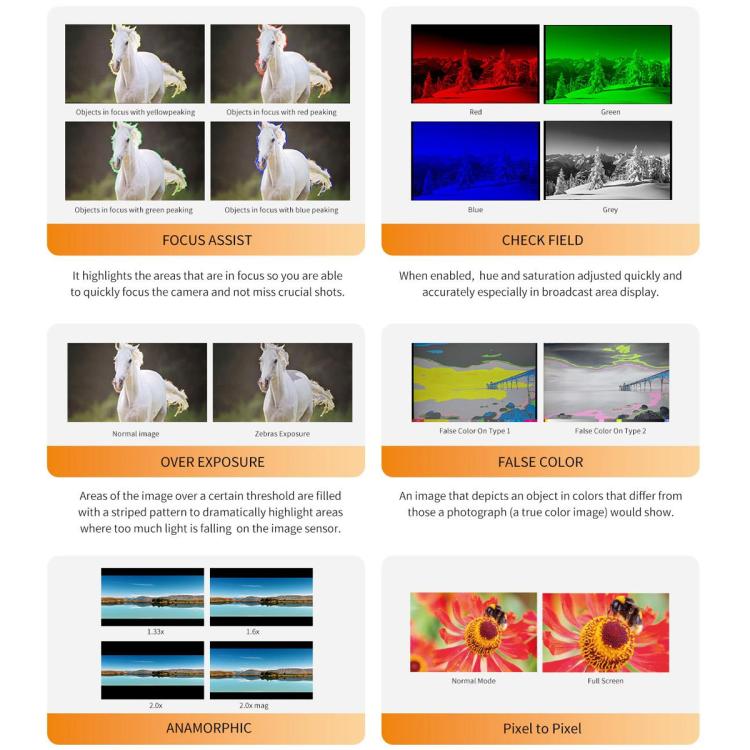

7. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
8. False Colors (Normal, ARRI)
9. Over Exposure (10RE~100IRE adjustable)
10. Check Field (Red, Green, Blue, Mono)
11. Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, Custom)
12. Scan Mode (Under Scan, Over Scan)
13. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
14. Image Flip ( H Flip, V Flip, H_V Flip )
15. Image Freeze
16. Center Marker
17. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
18. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)

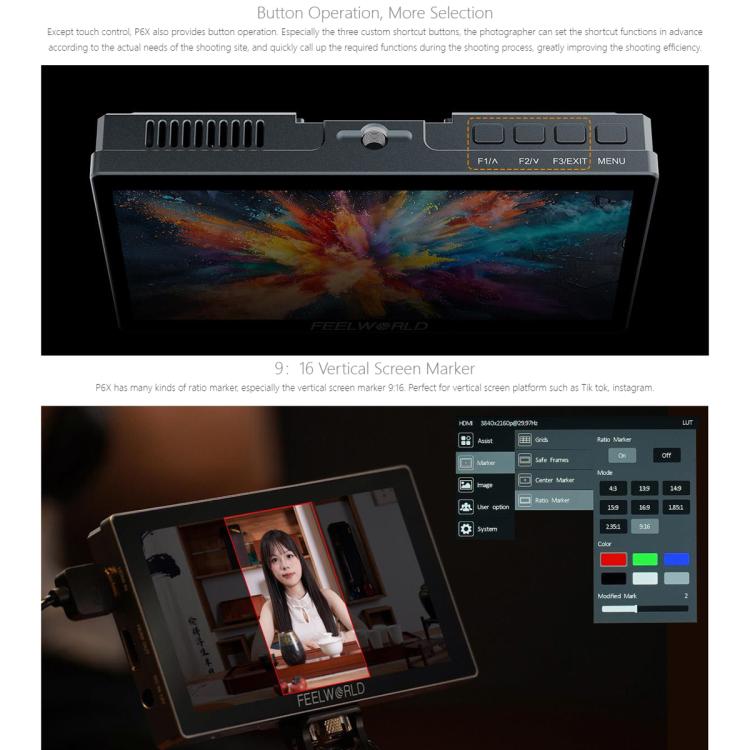

19. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1, 9:16)
20. Marker Color (Red, Green, Blue, Black, White, Gray)
21. User Switch (1~4)
22. Zoom Mode (2X, 4X, 9X, 16X, User)
23. Pixel to Pixel

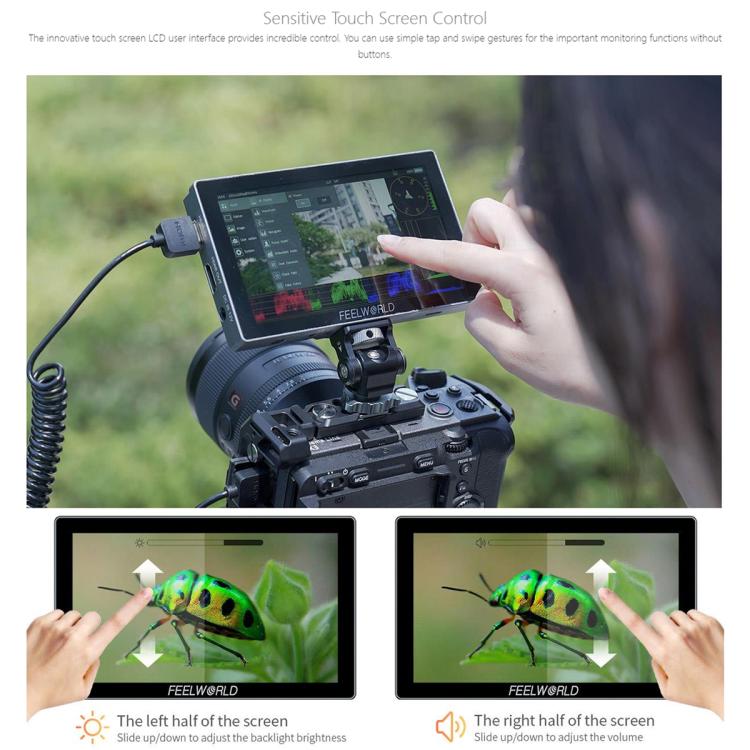

24. Display Adjustment (Can be adjust the image Backlight, Brightness, Contrast, Saturation, Tint 0~100)
25. Display Range(Auto, Limit, Full)
26. Built-in fan(can be adjustable 1~5)
27. Color Temp. (5600K, 6500K, 9300K, User.Under the "user", the red, green, and blue values of the image can be adjusted 0~255)
SpecificationsDisplay Spec.:

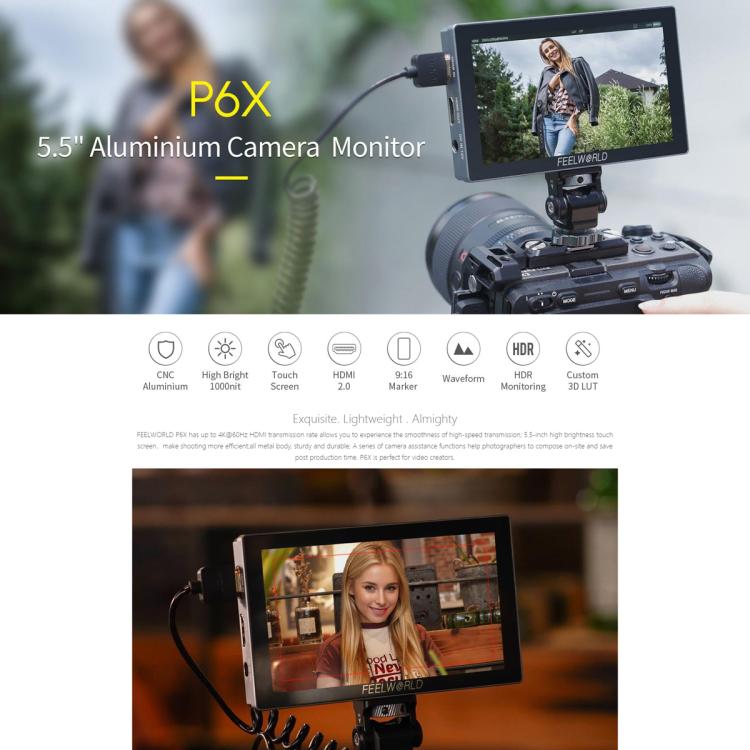

1. Model: P6X

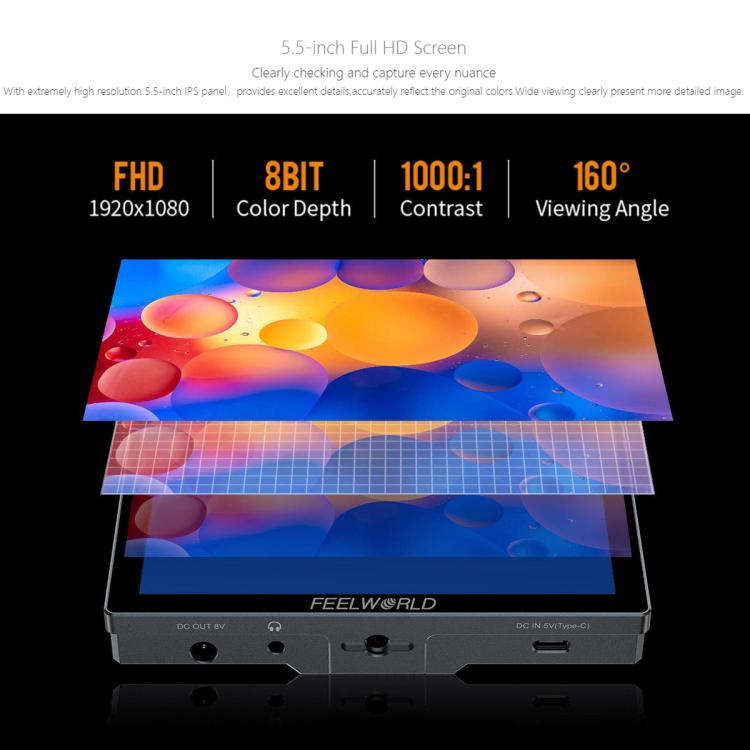

2. Screen Sizel: 5.5 inch IPS
3. Resolutionl: 1920x1080 pixels
4. Pixel Pitchl: 0.069 (H) x 0.069 (V) (mm)
5. Aspect Ratiol: 16:9

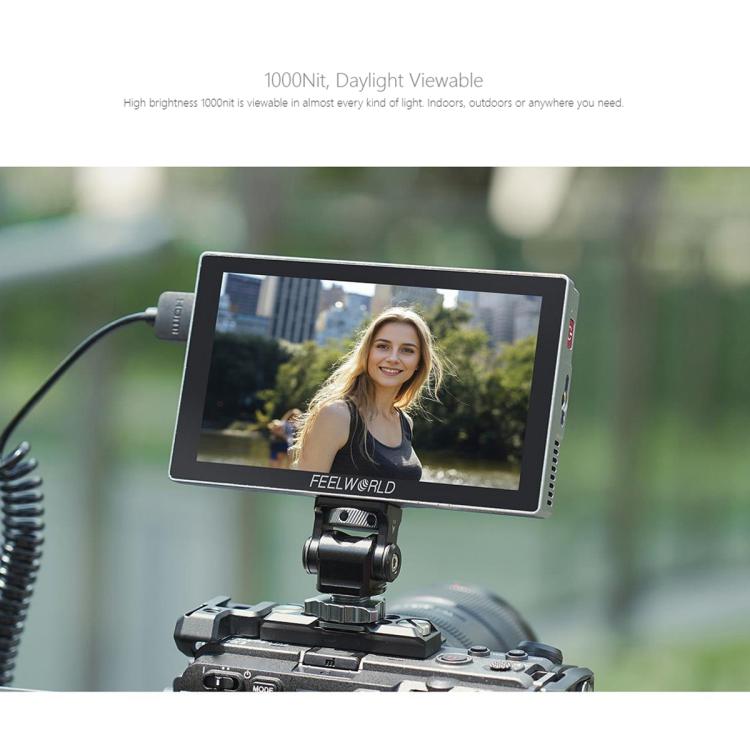

6. Brightnessl: 1000cd/m2
7. Contrast Ratiol: 1000:1
8. Backlight: LED
9. Viewing Anglel: 80 degree /80 degree (L/R) 80 degree / 80 degree (U/D)
Input:

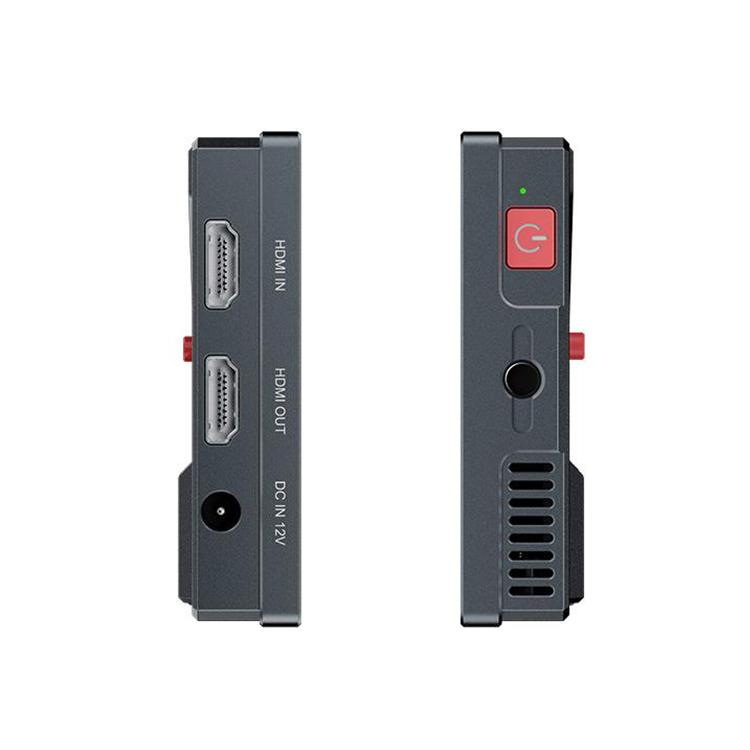

1. 1 x HDMI: HDMI 2.0
2. 1 x DC: DC IN 12V (suitbale for Barrel DC5.5 x 2.1mm power plug)
3. 1 x USB: 5V Type-C (please use 5V/2A or more than 2A Type-C power supply)
Output:
1. 1 x HDMI: HDMI 2.0

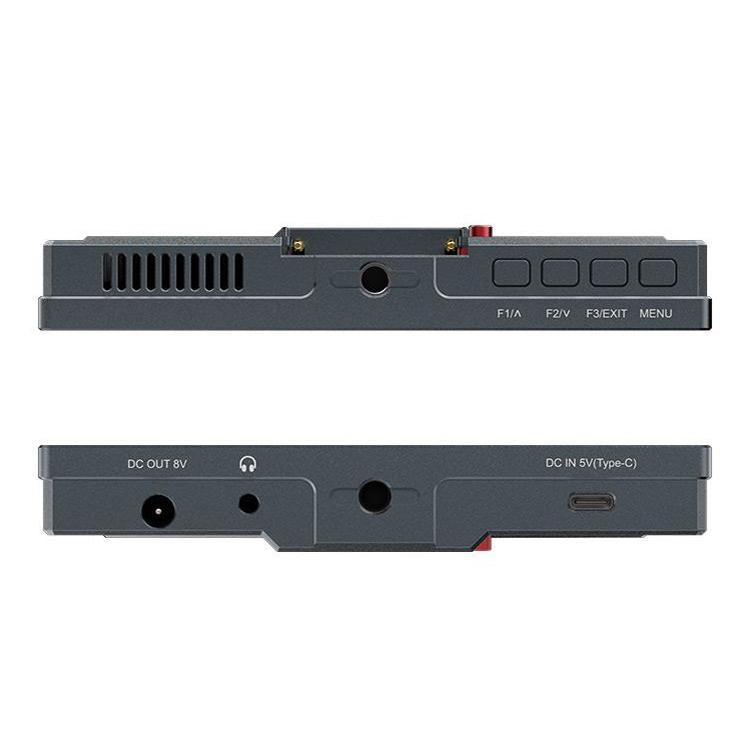

2. 1 x DC: DC OUT 8V (suitbale for Barrel DC5.5 x 21mm power plug)
Audio:
Audio: 3.5mm Stereo Headphone
HDMI Input/ Output Support Format:
1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29.97/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 3840 x 2160p (60/50/30/29.97/25/24/23.98)
6. 4096 x 2160p (60/50/30/29.97/25/24/23.98)
General:
1. Input Voltage: DC7-24V
2. Power Consumption: Less than or equal to 11W
3. Working Temperature: -20 degree C~50 degree C
4. Storage Temperature: -30 degree C~60 degree C

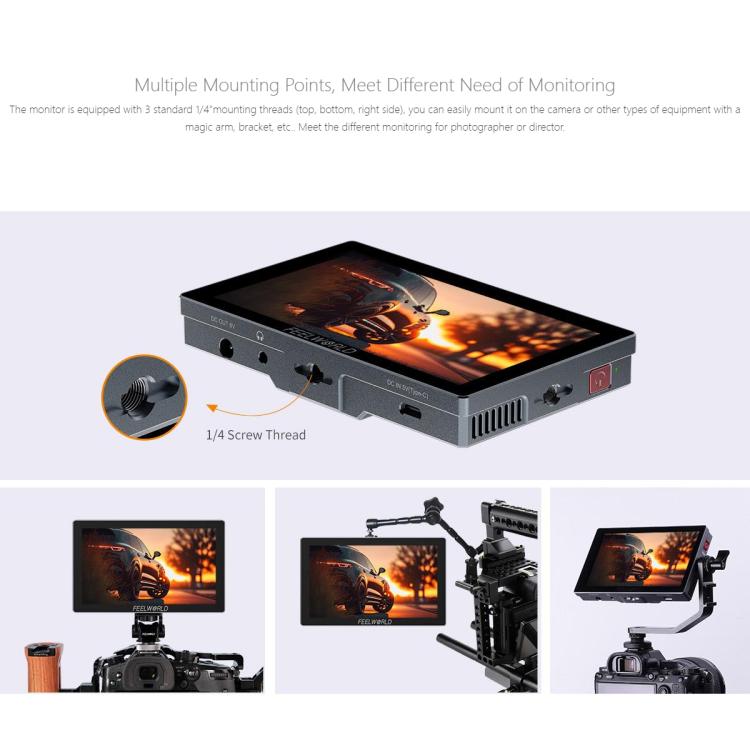

5. Install Way: 1/4 inch -20 Thread Socket (right, top, bottom)
6. Unit Size: 138.5x84.5x22(mm)
7. Unit Weight: 249g
Package List1. HDMI cable x 1
2. Micro HDMI cable x 1
3. Snail gimbal + wrench x 1
4. Type-C to USB x 1
5. Instruction manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.64kgs / 1.40lb
|
| One Package Size |
22cm * 15cm * 9cm / 8.66inch * 5.91inch * 3.54inch
|
| Carton Weight |
6.27kgs / 13.82lb
|
| Carton Size |
58cm * 22cm * 34cm / 22.83inch * 8.66inch * 13.39inch
|
| Loading Container |
20GP: 614 cartons * 10 pcs = 6140 pcs
40HQ: 1426 cartons * 10 pcs = 14260 pcs
|
|
