1.USB3.1 Gen1 Type-C interface, standard Type-A connector, compatible with Type-C and Type-A laptops
2.2 DP 1.2 interfaces and 2 HD 2.0 interfaces, supporting dual 4K displays
3.Single DP interface can achieve single 5K@60Hz high-definition display
4.Support extended and mirrored video modes: 5.1 surround channel, DP interface
5.Equipped with a Gigabit network port, supporting Gigabit data transmission
6.Two-in-one audio interface that can be connected to headphones, microphones and other devices
7.3 Type-A interfaces + 2 Type-C ports, compatible with various USB 3.0 and 2.0 devices
Specifications:
1.Model: UG69DK5

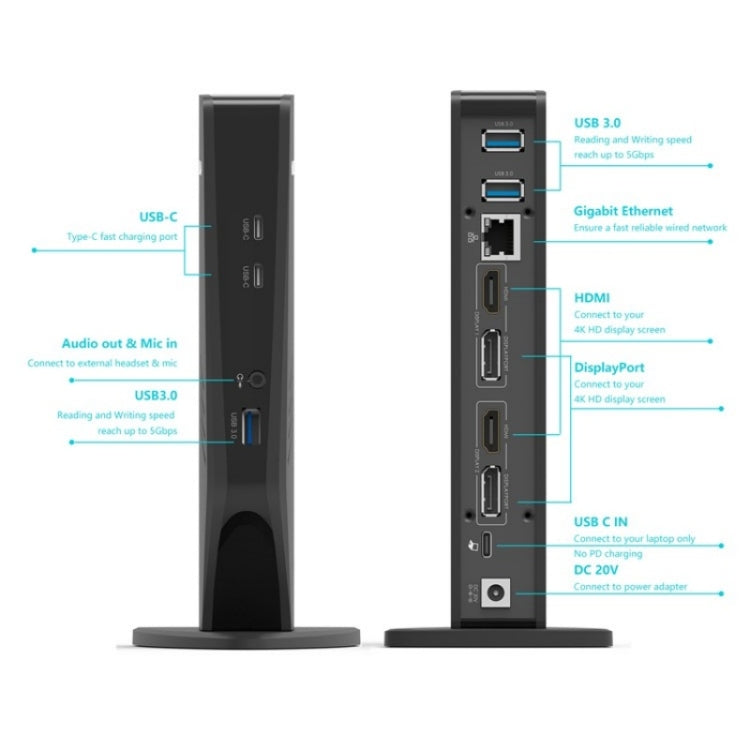

2.Interface: 1 x Type-C port, 2 x HD port, 2 x USB-C port, 2 x DisplayPort port, 3 x USB-A 3.0 port, 1 x 2-in-1 audio interface, 1 x RJ45 Gigabit Ethernet port, 1 x power input socket
3.LED light: blue
4.Power output: DC20V/5A
5.Dimensions: 192mm x 148mm x 26.20mm (L x W x H)
6.Material: ABS
7.Working standards: USB 3.0 transmission rate DP and HDMI interface support dual 4K high-definition display Gigabit network port 2.0 audio channel
8.Compatible systems: Windows, for Mac OS X
Specification:
|
Package Weight
|
| One Package Weight |
1.04kgs / 2.30lb
|
| One Package Size |
28.5cm * 16.5cm * 9.1cm / 11.22inch * 6.5inch * 3.58inch
|
| Carton Weight |
11.40kgs / 25.13lb
|
| Carton Size |
47cm * 30cm * 34cm / 18.5inch * 11.81inch * 13.39inch
|
| Loading Container |
20GP: 556 cartons * 10 pcs = 5560 pcs
40HQ: 1291 cartons * 10 pcs = 12910 pcs
|
|
