FEELWORLD F6 Plus V2 6 inch 3D LUT Touch Screen DSLR Camera Field Monitor, IPS FHD1920x1080 4K HDMI Input & Output, with Tilt Arm

Features
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload
2. Support Touch Menu
3. High Resolution: Full HD 1920x1080, High Contrast: 1000:1
4. 160 degree wide viewing angles IPS Panel

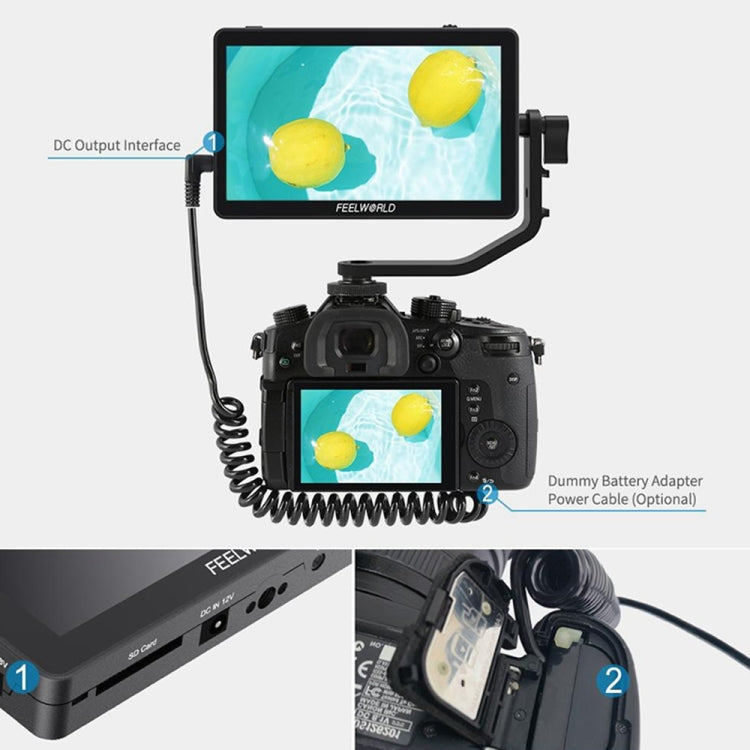

5. Provides auxiliary power out; allowing shooters to power their cameras
6. Support HDR monitoring
7. Parade (RGB, YUV, Y)
8. VectorScope
9. Histogram
10 Support screenshot, image overlay
11. Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
12. False Colors
13. Zebra Exposure (1%~100% adjustable)
14. Scan Mode (Under Scan, Over Scan)
15. Zoom (100%~300%)
16. Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
17. Pixel to Pixel
18. Nine Grid
19. Center Marker
20. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
21. Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
22. Marker Color (red, green, blue, white, black, yellow)
23. Check Field (red, green, blue, gray)
24. Image Flip (H, V, H/V)
25. Image Freeze
26. Color Temperature Adjustment

Specifications
Display screen
1. Model: F6 Plus V2
2. Screen Size: 6.0 inch IPS Touch Screen
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.069 (H) x 0.069 (W) mm
5. Aspect Ratio: 16:9
6. Brightness: 500cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degrees /80 degrees (L/R) 80 degrees /80 degrees(U/D)

Input

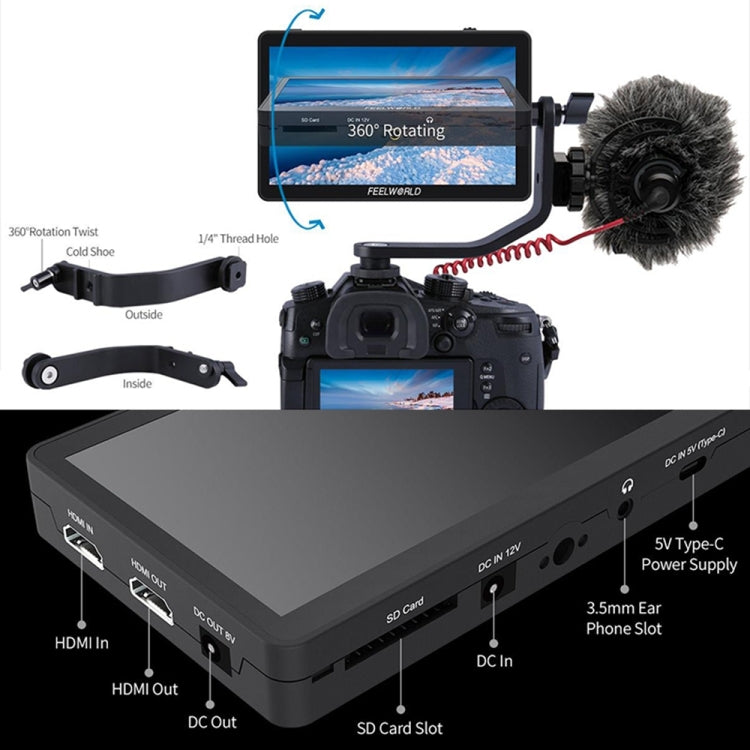

1. 1 x HDMI: HDMI
2. 1 x Type-C: Type-C

Output
1. 1 X HDMI: HDMI
2. 1 X DC Output: DC Output

Audio
- Audio: 3.5mm Stereo Headphone

HDMI Input/ Output Support Format:
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
- 4K UHD 3840 x 2160p (30/29.97/25/24/23.98Hz), 4096 x 2160p (24Hz)

General
1. Input Voltage: DC 7-24V
2. Power Consumption: Less than or equal to 8W
3. Power Connector: DC
4. Working Temperature: -20 degree C~50 degree C
5. Storage Temperature: -30 degree C~60 degree C
6. Install Way: 1/4-20 thread points

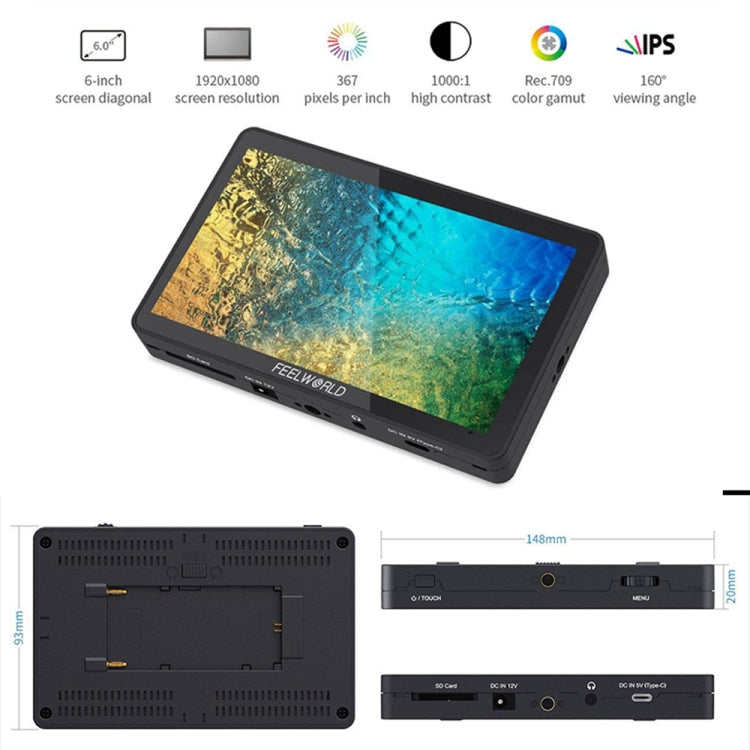

7. Unit Size: 148Lx93Hx20D (mm)
8. Unit Weight: 235g

Package List
1. Monitor x 1
2. Micro HDMI Cable x 1
3. Tilt Arm x 1

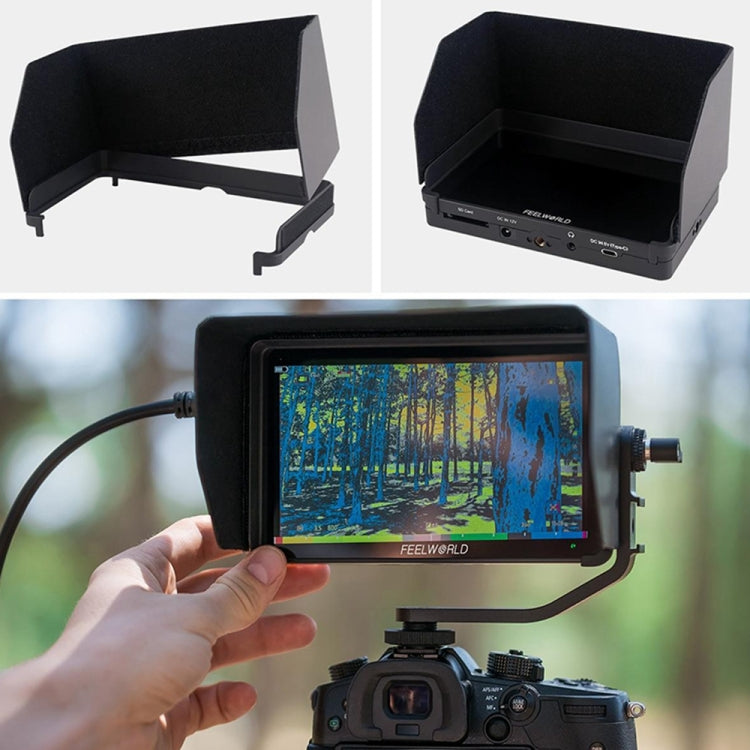

4. Sunshade x 1
5. Manual x 1
