1. European version:
- 4G: B1,B3,B7,B8,B20,B20,B28,B38,B40,B41
- WCDMA : B1/B8
2. US version:
- 4G: B2,B4,B5,B7,B28,B66,B38,B40,B41
- WCDMA: B2/B5
2. FDD: up to 150Mbps DL, up to 50Mbps UL
3. WiFi: IEEE 802.11b/g/n
4. WiFi transfer rate: up to 300Mbps
5. WiFi Type: 2.4G
6. Antenna: 2.4G external antenna x 4
7. Number of users: up to 32
8. Input: 12V 1A

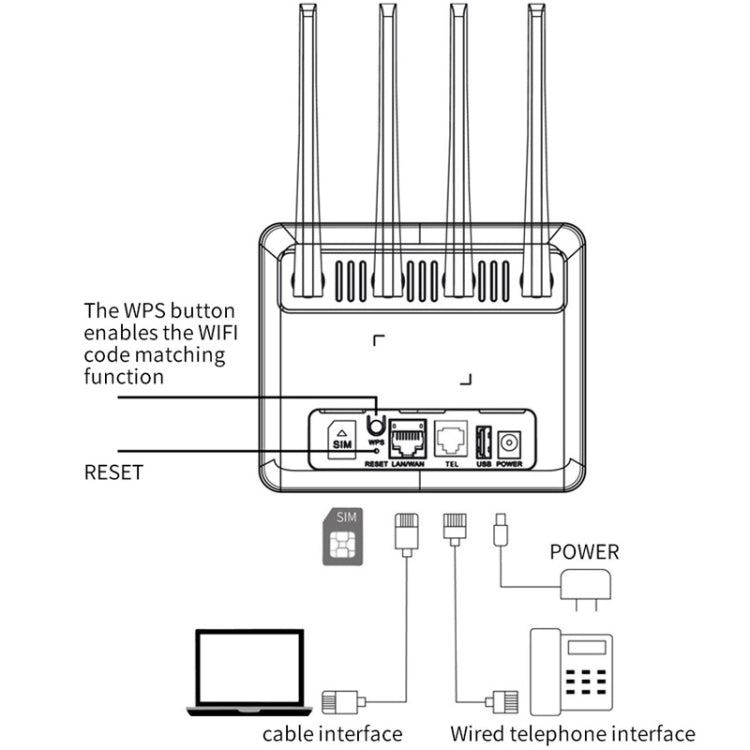

9. Ethernet Port: RJ11 x 1, RJ45 x 1, 10/100 M adaptive, LAN/WAN adaptive
10. USB port: USB 2.0 port x 1
11. Debugging keys: reset key, WPS key
12. Operating temperature: -10 - 45 degrees Celsius
13. Storage temperature: -25 - 70 degrees Celsius
14. Operating humidity: 5% - 95%
15. Size: about 21.6 x 14 x 3.8cm
Features:
1. 4 enhanced high gain antennas, enhance the signal gain effect is greater, so that the WiFi coverage is more uniform, to deal with multi-wall environment is also unimpeded

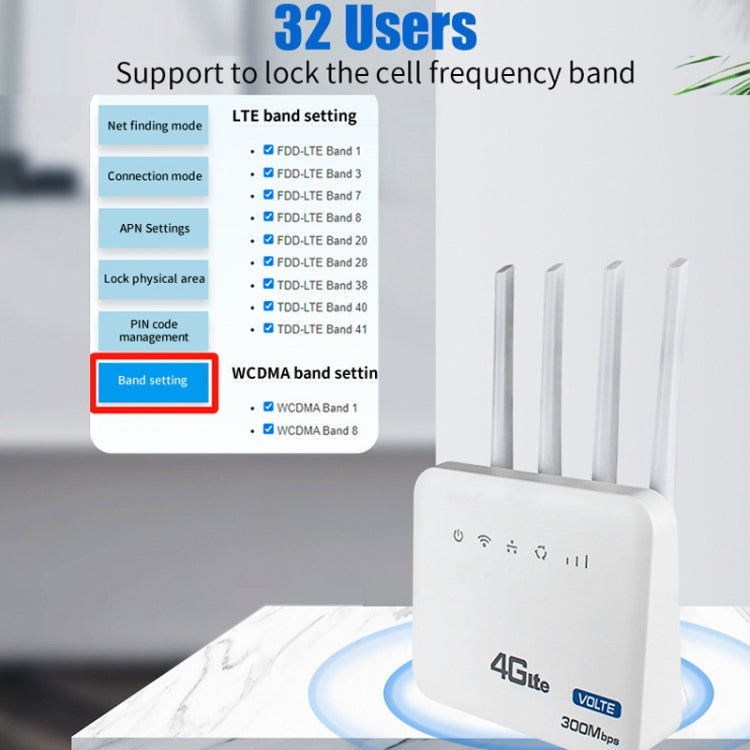

2. Support 32 users, support locking cell band
3. Plug and play, support MIC SIM/ESIM
4. Enjoy wired and wireless Internet access, equipped with LAN interface, when the 4G router transmits WiFi, you can connect other devices at the same time
5. Adopt WPA/ WPA2 encryption technology, you can set password or other information to protect data security
Specification:
|
Package Weight
|
| One Package Weight |
0.75kgs / 1.66lb
|
| One Package Size |
32cm * 28cm * 7cm / 12.6inch * 11.02inch * 2.76inch
|
| Carton Weight |
16.00kgs / 35.27lb
|
| Carton Size |
52cm * 32cm * 31cm / 20.47inch * 12.6inch * 12.2inch
|
| Loading Container |
20GP: 516 cartons * 20 pcs = 10320 pcs
40HQ: 1200 cartons * 20 pcs = 24000 pcs
|
|
