Radiator:
1. Material: aluminum alloy, copper, ABS
2. Cooling row size: about 39.4 x 12 x 5.2cm
Fan:
1. Speed: about 800-1800RPM
2. Airflow: about 71CFM
3. Connector: 3pin ARGB +4pin PWM
4. Noise Level: Less than 29.5dBA
5. Bearing: hydraulic bearing
6. Voltage: DC 12V (fan) + 5V (LED)
7. Size: about 12 x 12 x 2.5cm
Pump:

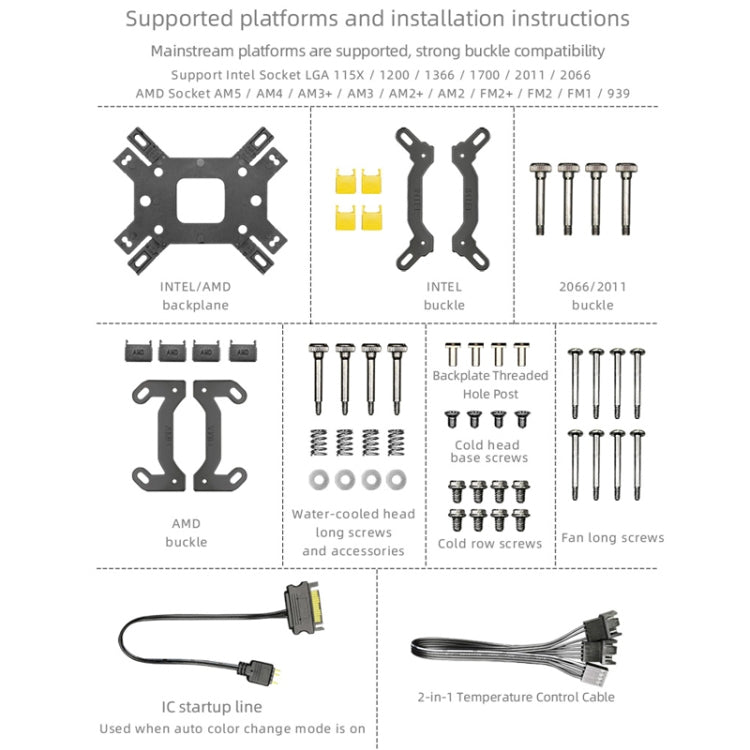

1. Platform:
- Support for Intel: LGA115X/1200/1366/17XX/20XX
- Support AMD: AM5/AM4/AM3(+)/AM2(+)/FM2(+)
2. Speed: 2600RPM
3. Voltage: DC 12V (PUMP) + DC 5V (LED)
4. Noise level: less than 25dBA
5. Liquid flow rate:more than 1100ml/min
6. Size: about 7.5 x 5.6cm
Features:

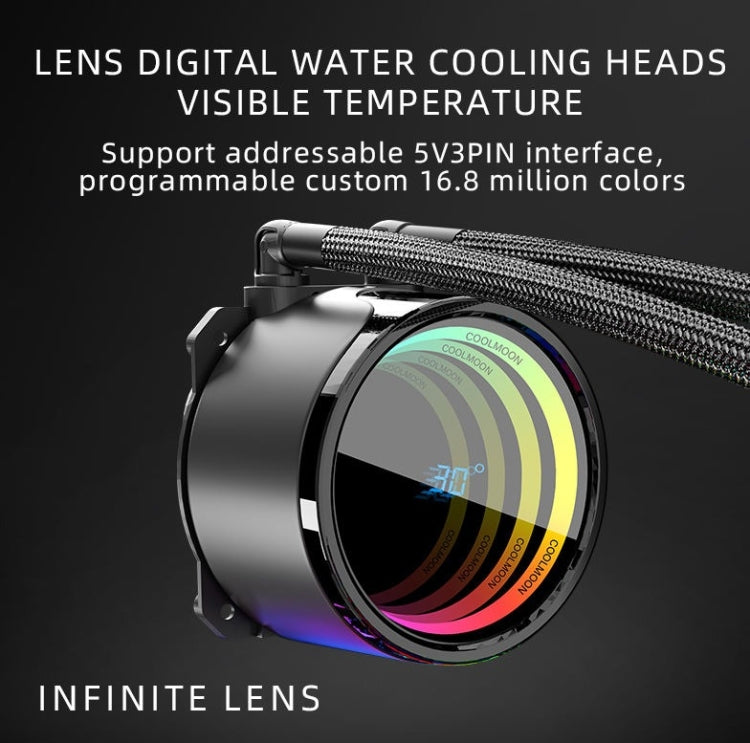

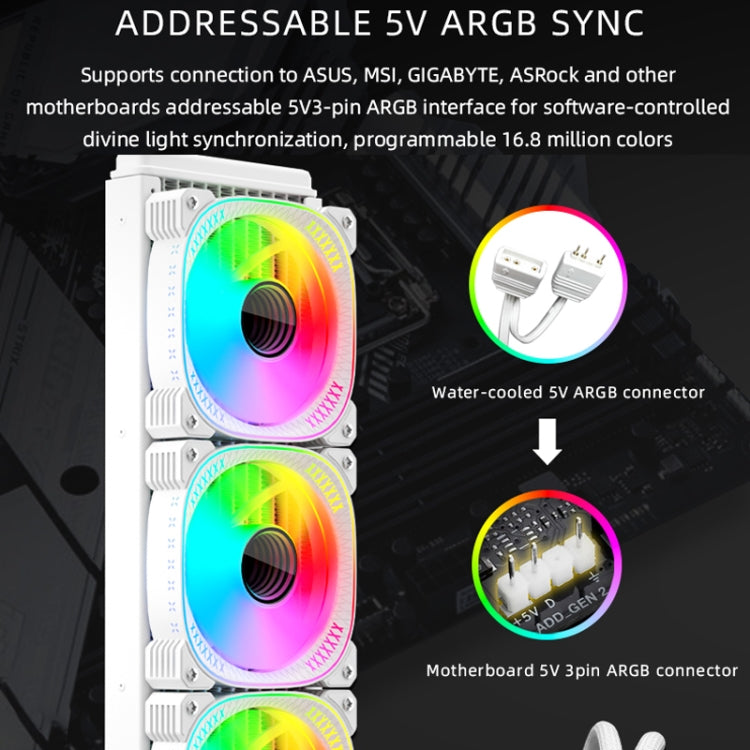

1. Support addressable 5V 3Pin interface, programmable custom 16.8 million colors
2. Temperature display, data at a glance, the lens to make the light effect more clear and full
3. Strong coolant power system, to ensure efficient circulation of coolant, quiet and efficient
4. 7 aerodynamic bionic blades, full-speed operation can generate strong wind pressure, large air volume, efficient heat dissipation
5. Supports PWM temperature control interface to intelligently adjust fan speed according to CPU temperature

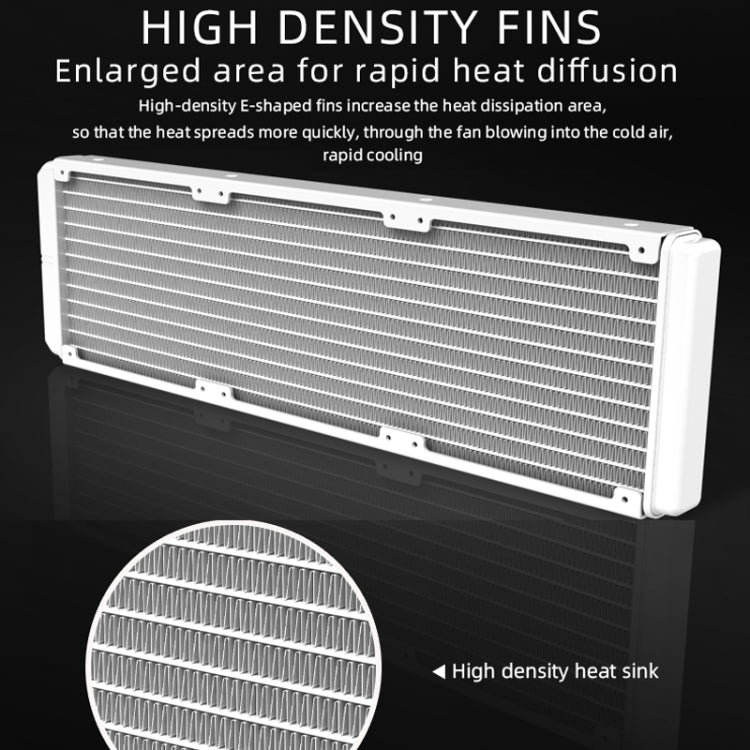

6. High-density E-shaped fins increase the heat dissipation area, so that the heat spreads more quickly, through the fan blowing into the cold air, rapid cooling
7. Polymer FEP water-cooling tubes, stretch-resistant, bend-resistant, well sealed and durable
8. Water-cooled pipe interface with industrial-grade sealing process, anti-stretching, bending, sealing to prevent leakage of liquid, woven mesh to the water-cooled pipe to provide careful care
9. Polished copper base ensures a close fit to the CPU, quickly transferring heat away and improving cooling efficiency
Specification:
|
Package Weight
|
| One Package Weight |
2.60kgs / 5.74lb
|
| One Package Size |
48cm * 25cm * 16cm / 18.9inch * 9.84inch * 6.3inch
|
| Carton Weight |
17.00kgs / 37.48lb
|
| Carton Size |
52cm * 51cm * 48cm / 20.47inch * 20.08inch * 18.9inch
|
| Loading Container |
20GP: 209 cartons * 6 pcs = 1254 pcs
40HQ: 486 cartons * 6 pcs = 2916 pcs
|
|
