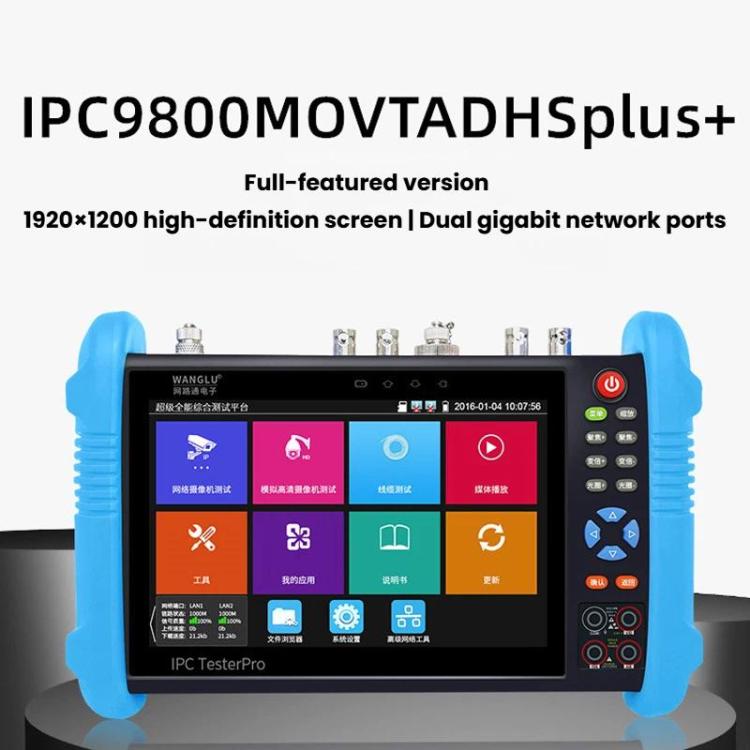

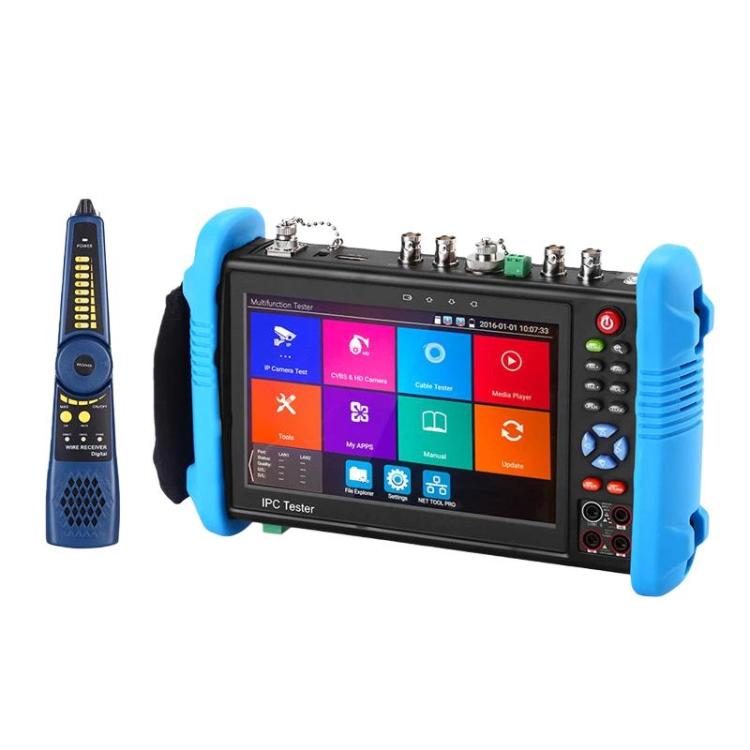

IPC9800MOVTADHSPlus+ Multi-Functional Engineering Tester Coaxial Network Video Surveillance Tester EU Plug

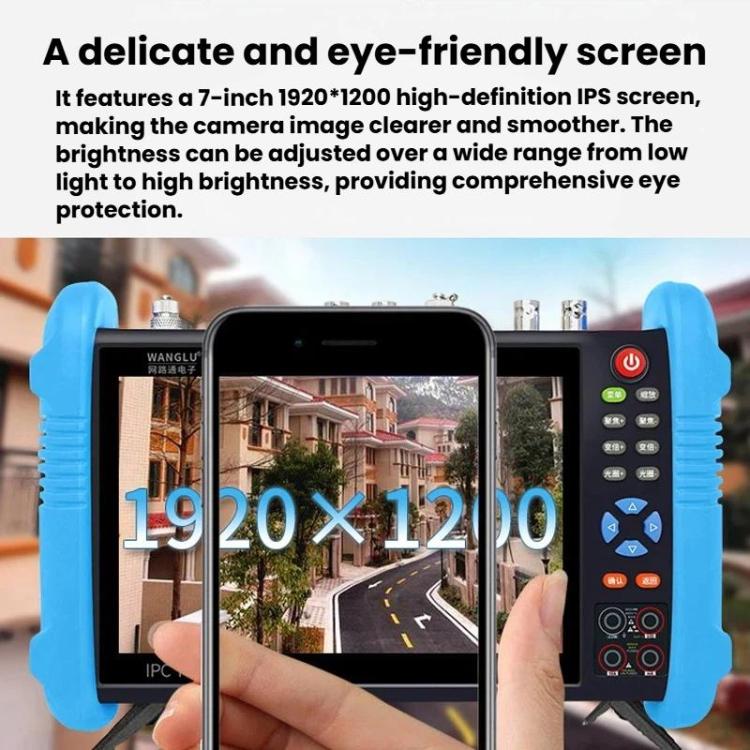

1. Equipped with a 7-inch 1920 x 1200 high-definition IPS screen, the camera image display is clearer and smoother. It has a wide range of adjustable brightness from low light to high brightness, providing comprehensive protection for the eyes
2. Equipped with a 5000mAh integrated large-capacity battery, supported by intelligent power-saving technology, it has strong battery life and works more comfortably
3. High-precision multimeter, intelligent overload protection, safe and reliable. It integrates tests for voltage, current, resistance, capacitance, diode, etc., suitable for you to inspect various electrical circuits. The new interface, high-definition display, are convenient for use in dim lighting conditions, and supports one-click generation of test reports

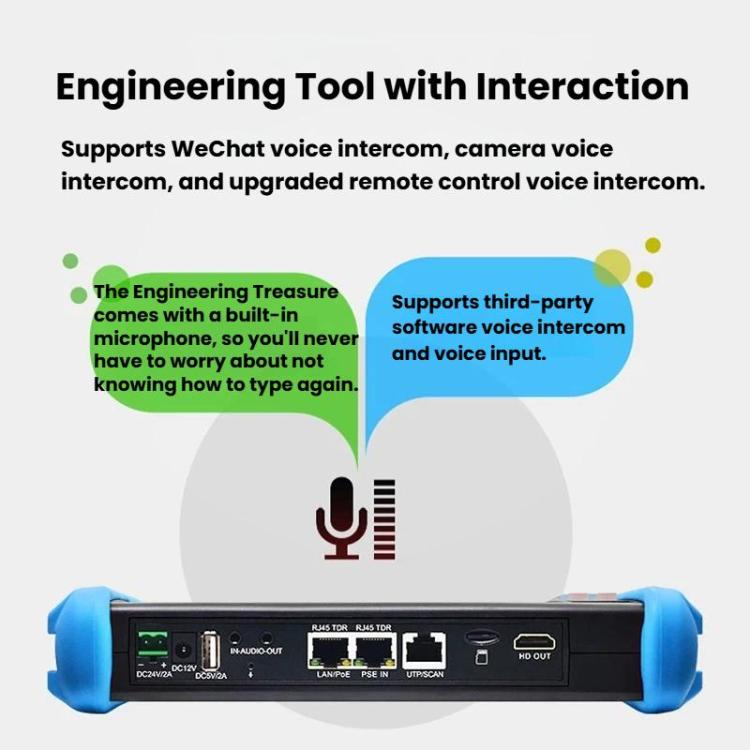

4. Conversational Engineering Assistant, supports voice communication, camera voice communication, and remote control voice communication

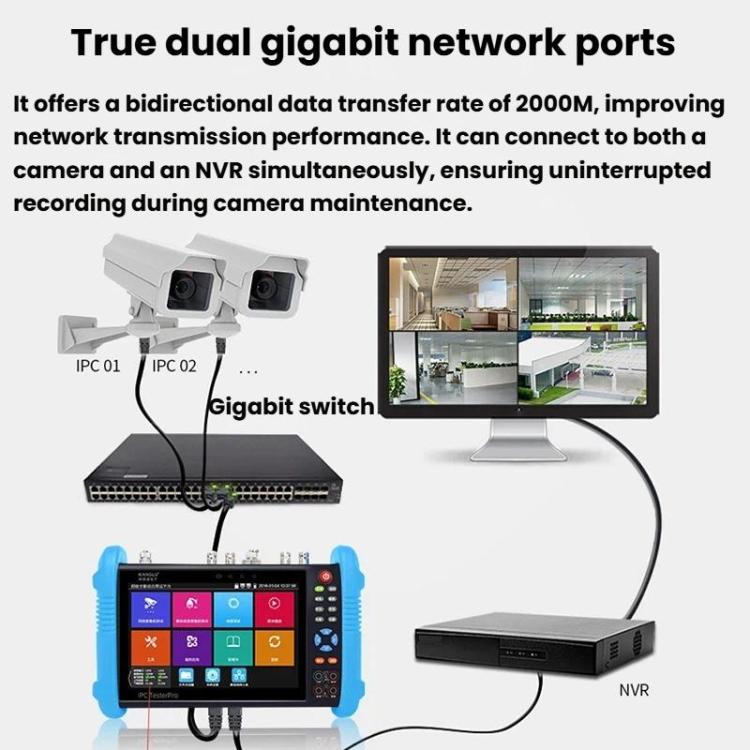

5. 2000M bidirectional data transmission rate, improving network transmission performance
6. Can connect the camera and NVR at the same time to ensure that the video recording is not interrupted when inspecting the camera

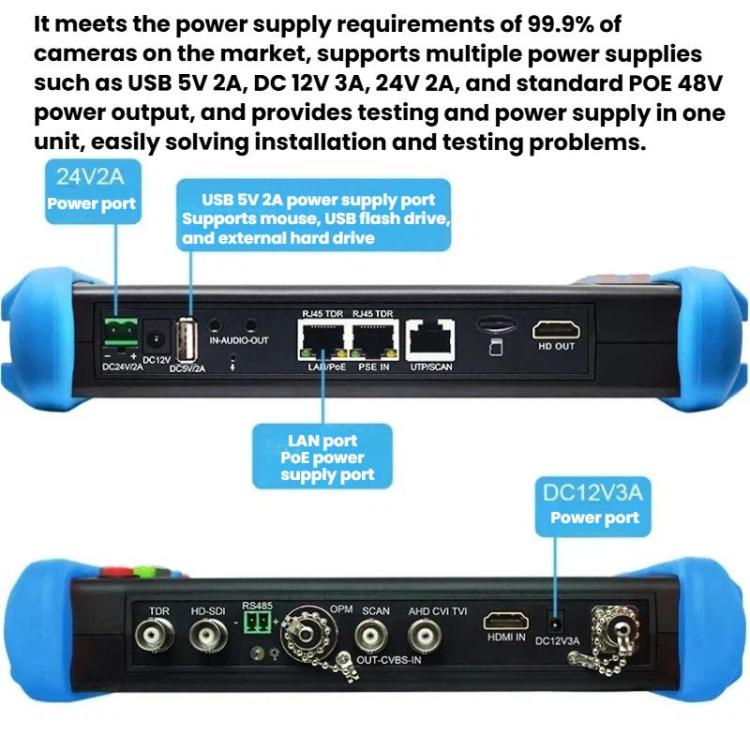

7. Satisfies 99.9% of the market cameras' power supply requirements. Supports multiple power sources: USB 5V 2A, DC 12V 3A, 24V 2A, standard POE 48V power output. One machine for testing and power supply, easily solving installation and testing

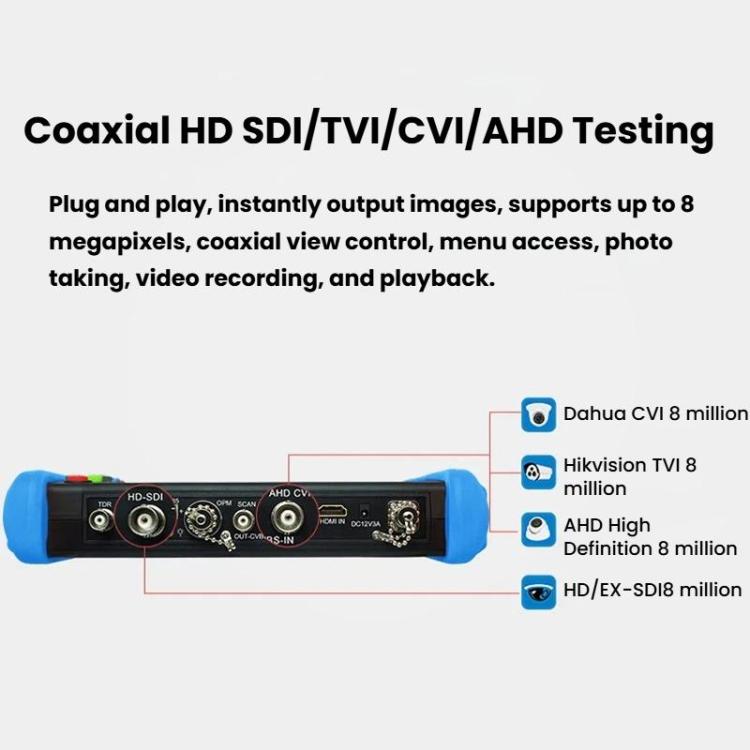

8. Coaxial high-definition SDI/TVI/CVI/AHD testing, plug-and-play, immediate image output. Maximum support 8000,000 pixels. Coaxial view control, menu calling, taking photos, recording, playback

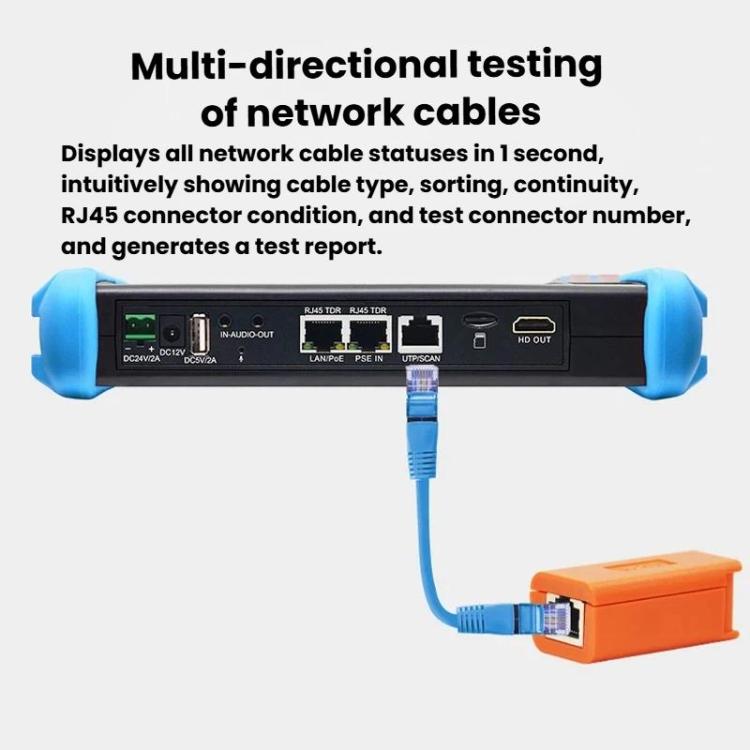

9. Network cable multi-directional detection, quickly display the entire status of the network cable, intuitively display the type of the network cable, sorting, connection/disconnection, quality of the jack and test head number, and generate a test report

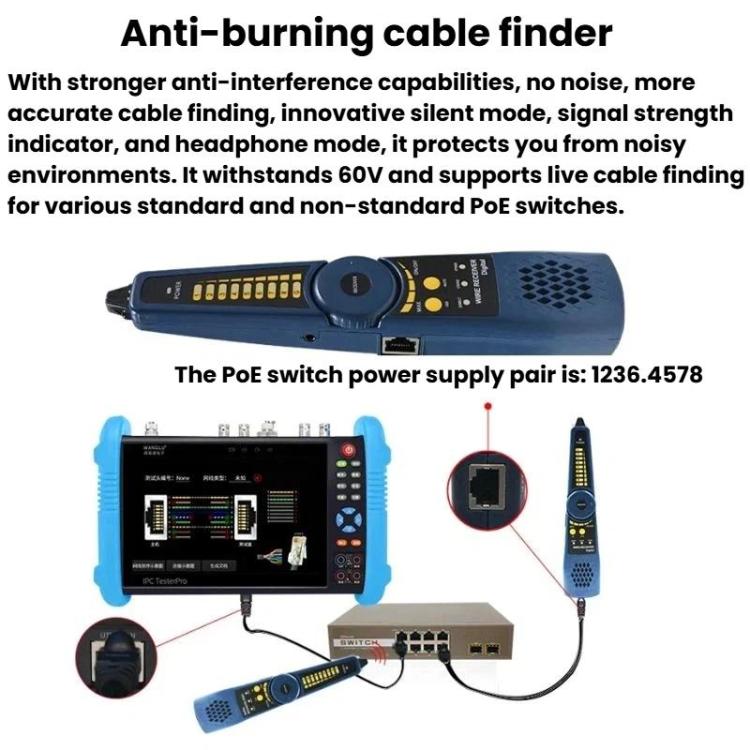

10. Anti-burn wire locator, stronger anti-interference ability, no noise, more accurate wire finding

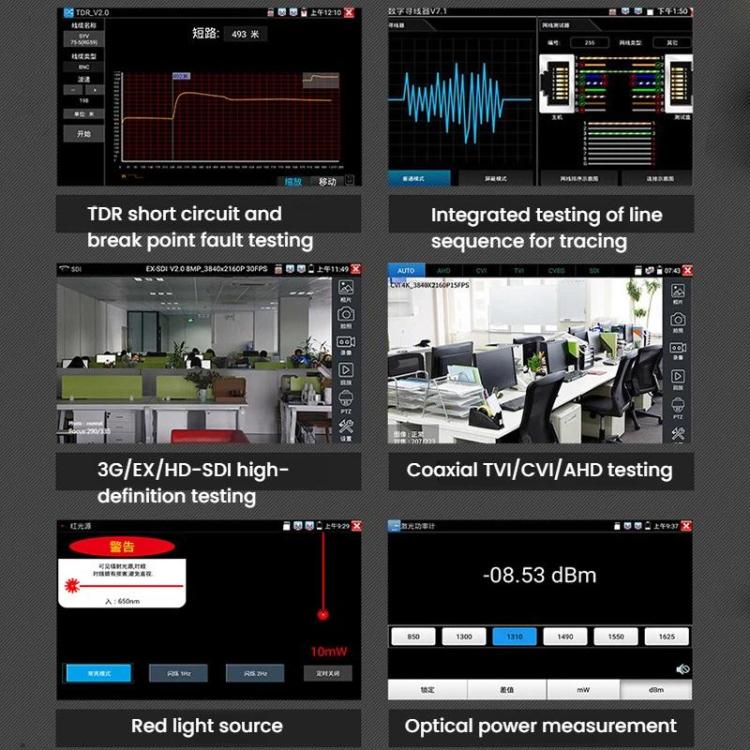

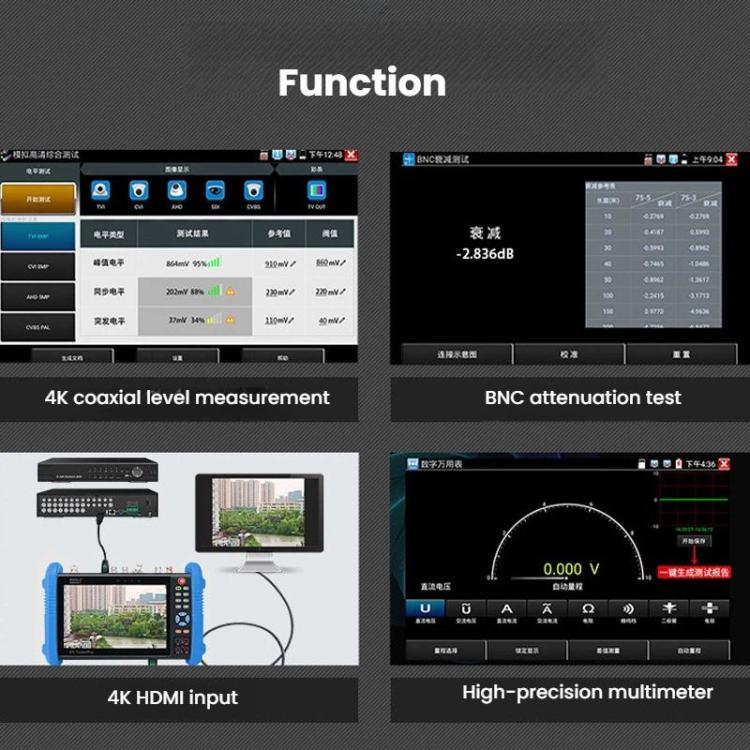

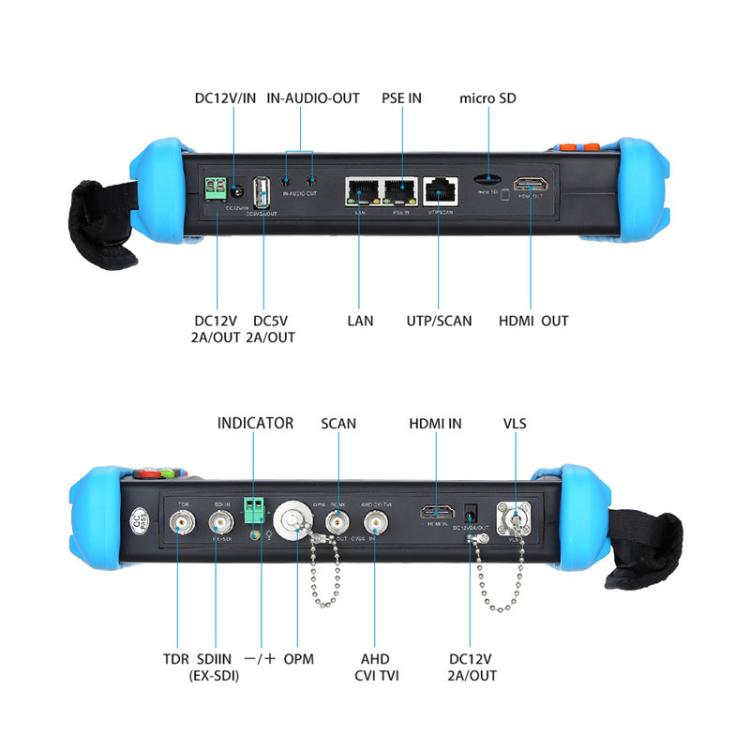

11. Functions: TDR short circuit and break fault testing, integrated wire sequence finding test, 3G/EX/HD-SDI high-definition testing, coaxial TVI/CVI/AHD testing, red light source, optical power measurement, 4K HDMI input, high-precision multimeter, 4K coaxial level measurement, BNC attenuation test

Parameters
1. Operating temperature: -10℃ - +50℃
2. Operating humidity: 30%-90%
3. Battery capacity: 5200mAh
4. Operating settings: capacitive touchscreen, Chinese and English OSD menu, optional
5. Automatic standby: off / 5 - 30 minutes
6. Charging: Intelligent fast charging, approximately 2.5 hours to fully charge, can be used normally for 10 hours
7. External power supply: DC 12V (2A)
8. Display screen: 7 inches, IPS high-definition full-view IPS capacitive touch screen, resolution 1920x1200
9. Network ports: dual gigabit Ethernet ports, 10/100/1000M adaptive
10. WIFI: built-in wireless WIFI, rate 150M, can receive images from wireless network cameras, etc.
11. H.265 main stream test: Hardware decoding, supports H.265 main stream test of camera images, highest resolution 4K, can test 1200W camera
12. Ethernet test: 10/100/1000M Ethernet link status test, Ethernet traffic detection
