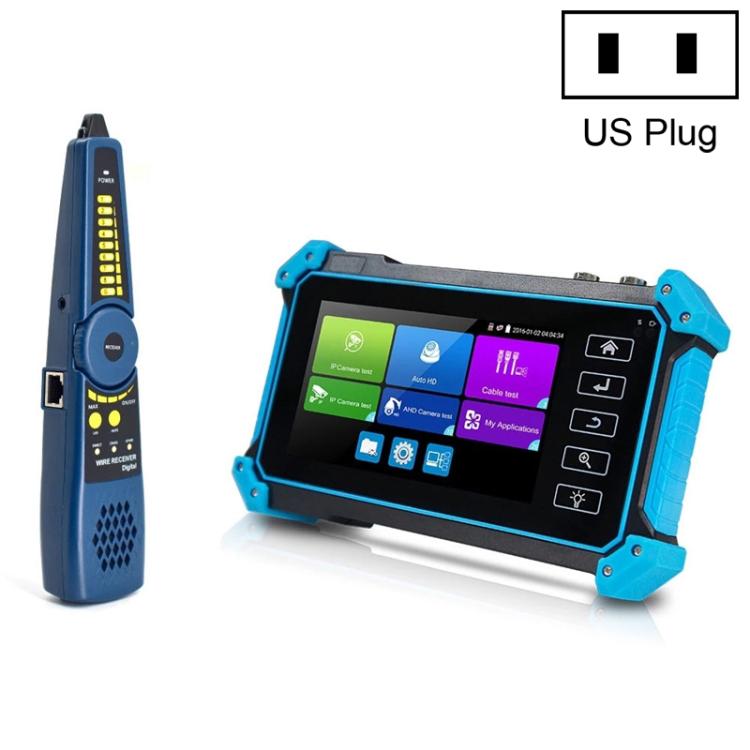

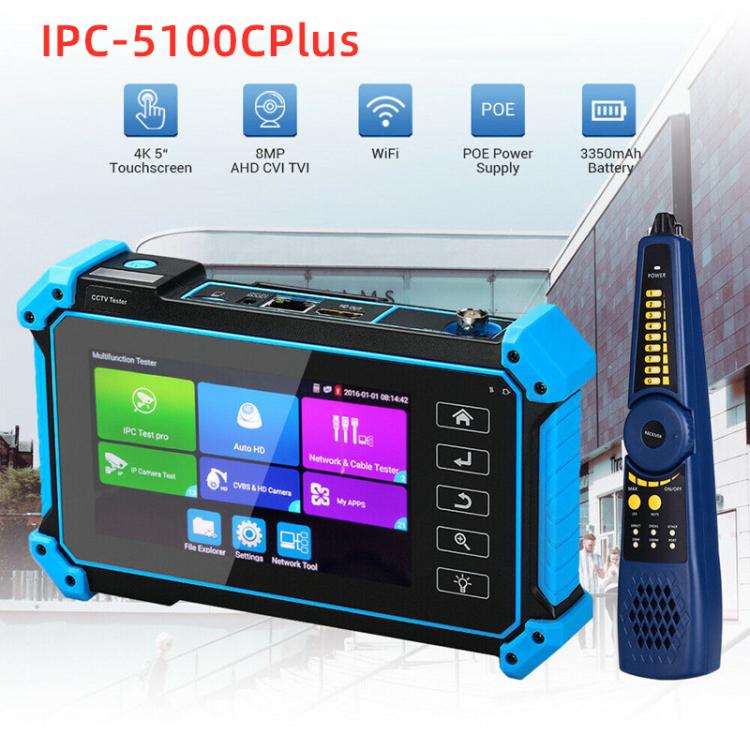

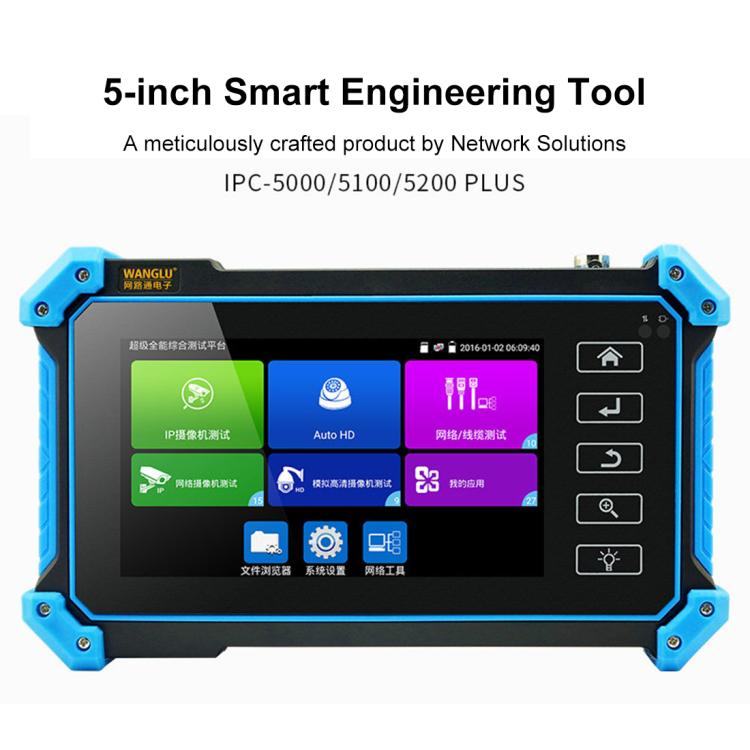

IPC-5100CPlus Network Engineering Treasure Simulated Coaxial Integrated Video Surveillance Tester, Plug:US Plug

Specifications:

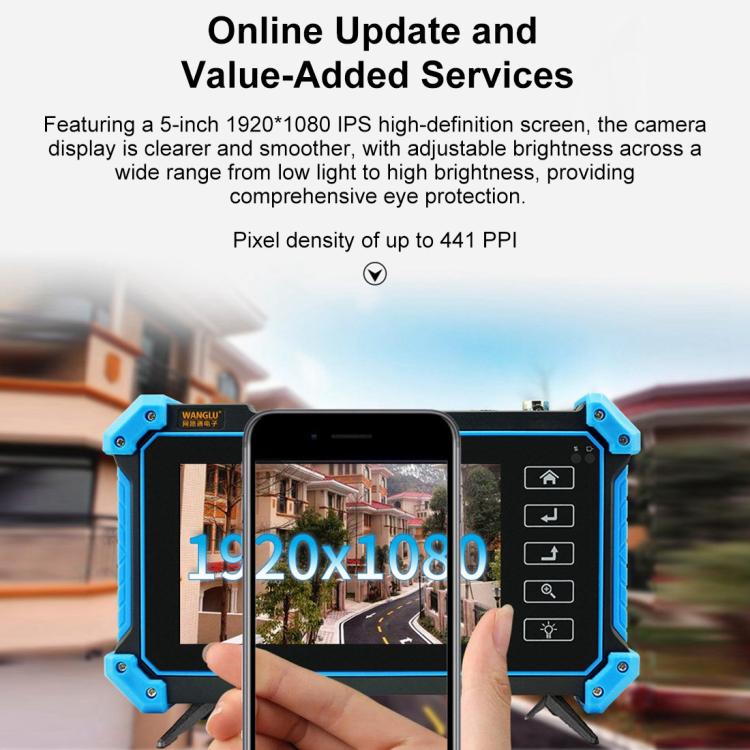

1. Display: 5-inch IPS HD capacitive touchscreen
2. Resolution: 1920 x 1080P
3. Network Port: 10/100/1000M adaptive

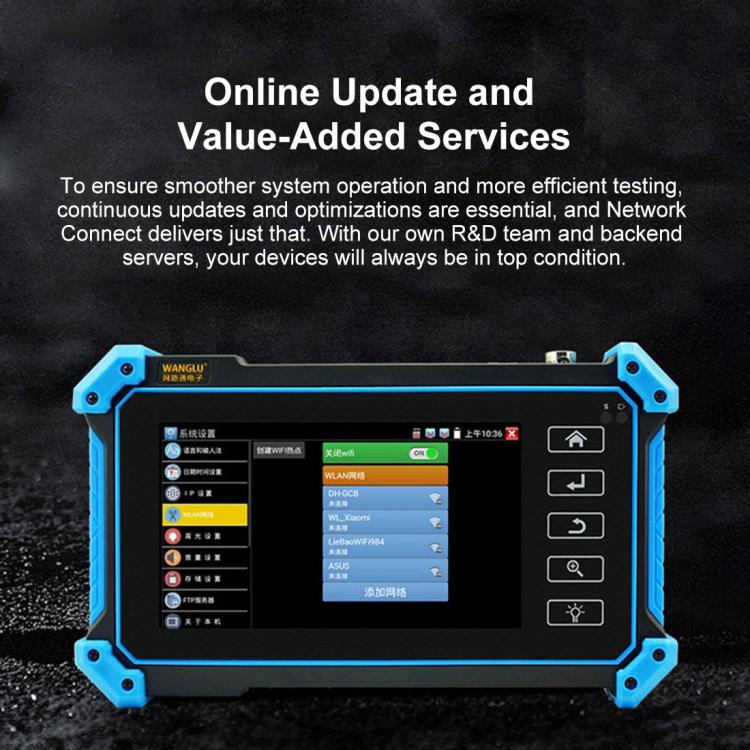

4. WiFi: Built-in wireless WiFi, 150M speed

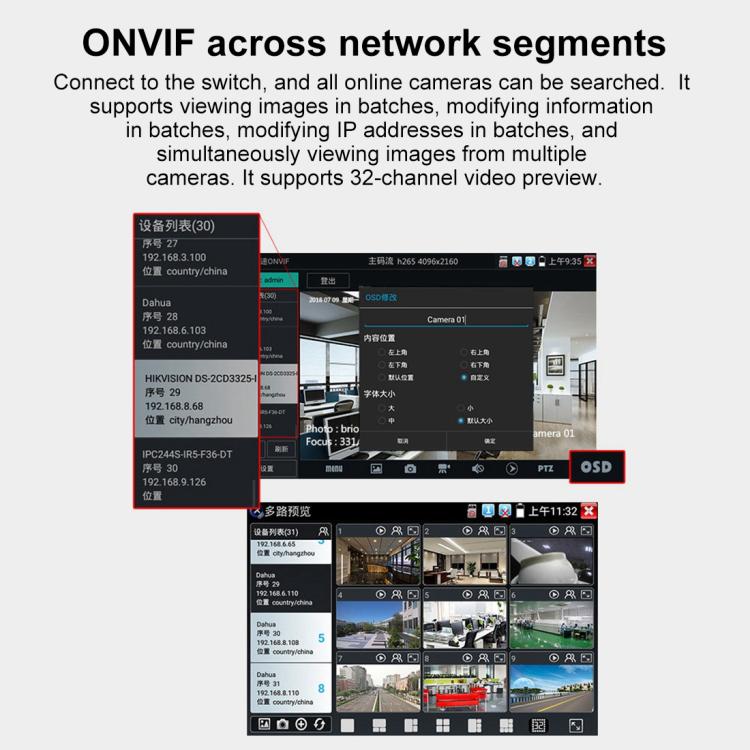

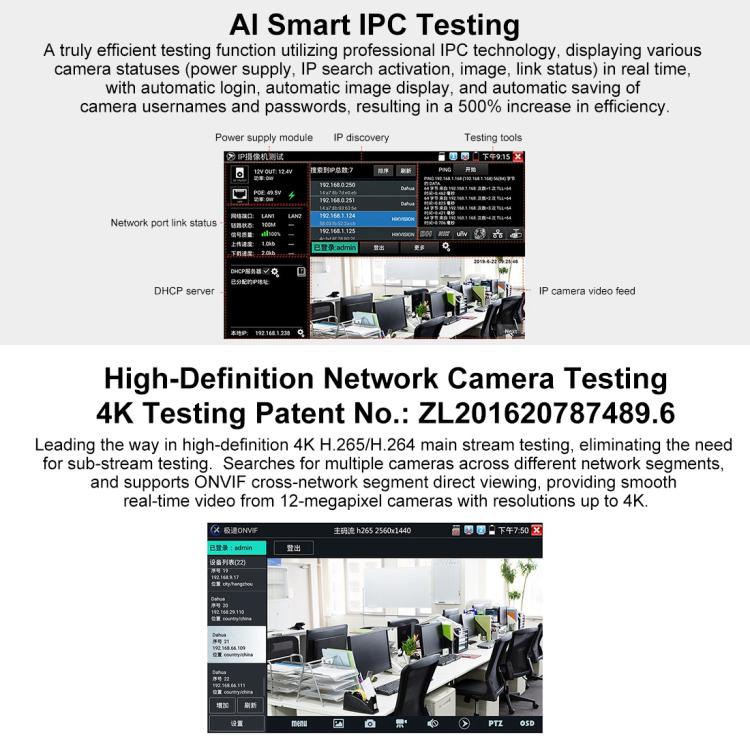

5. IP Discovery: Finds camera IP addresses across all network segments
6. High-speed ONVIF: Automatically logs in and plays images, supports modifying IP address, channel name, generating test reports, etc.

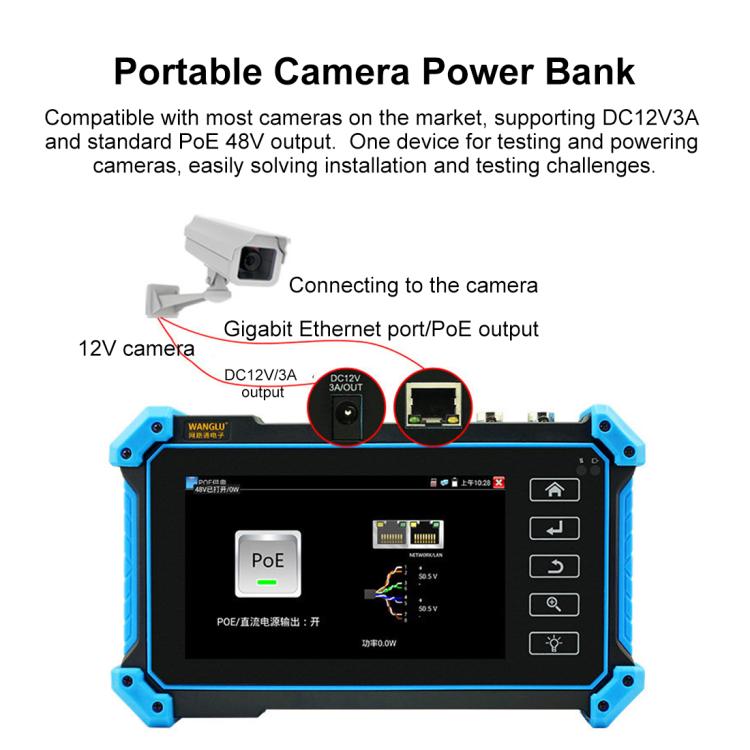

7. External Power Supply: DC 12V 3A, POE 48V output
8. Battery Capacity: 3350mAh
9. Charging Time: 3-4 hours
10. Usage Time: Approximately 5 hours
11. External Storage: Supports SD card up to 32GB (excluding storage)

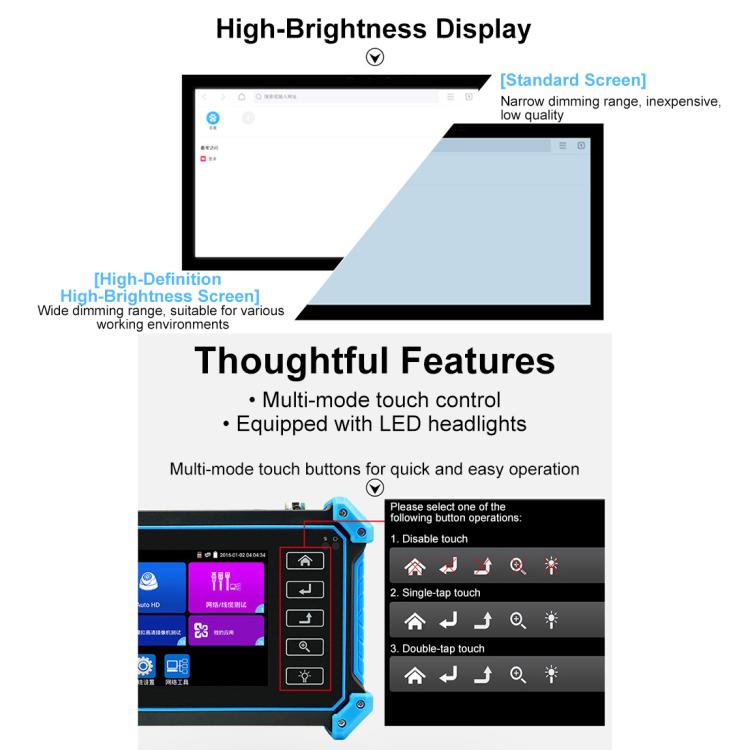

12. Operation Settings: Capacitive touchscreen, Chinese and English OSD menus, optional
13. Product Dimensions: 183 x 110 x 36.5mm
14. Main Unit Weight: Approximately 320g
15. Operating Temperature: -10 degrees Celsius to 50 degrees Celsius
16. Operating Humidity: 30%-90%

Features:
1. High-definition 4K H.265/H.265+ main stream testing, 1200W network camera testing, smooth and clear picture
2. High-speed ONVIF, generating test reports, customizable channel names

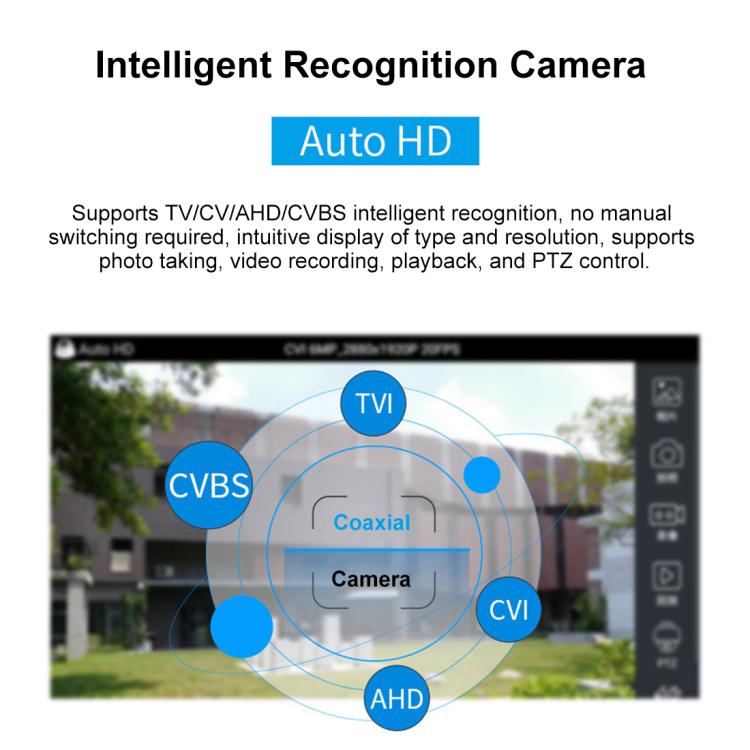

3. AutoHD intelligent recognition, automatically detecting and displaying the type and resolution of the connected high-definition camera
4. Upgraded coaxial high-definition 4.0, TVI/CVI/AHD 8MP testing

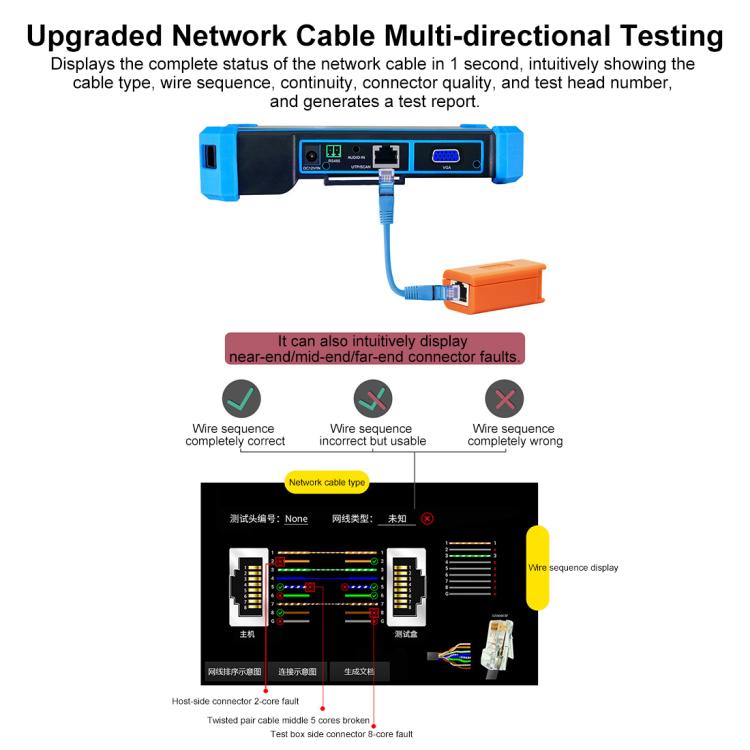

5. Supports network cable sequence detection, far-end/mid-end/near-end error detection

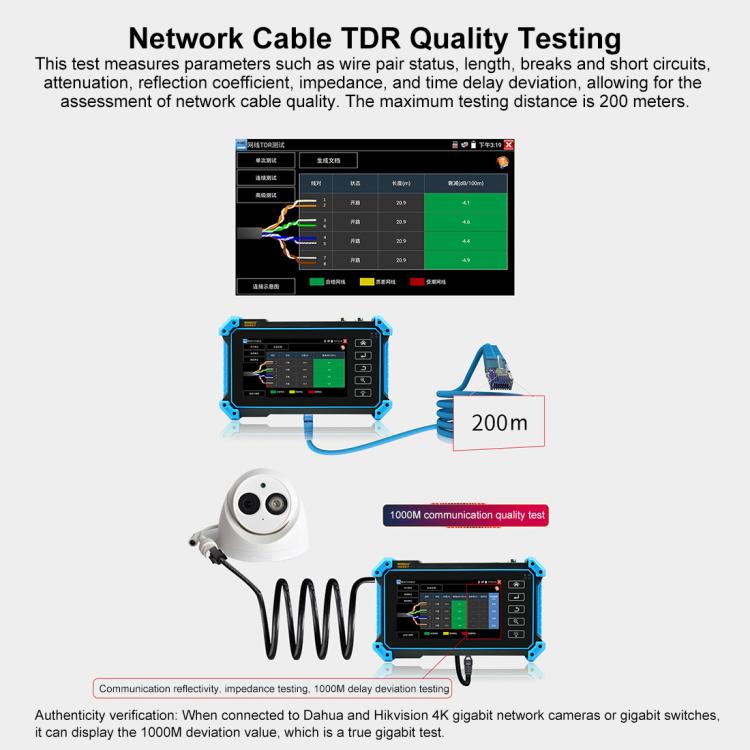

6. Supports network cable TDR testing, network cable open/short circuit, quality testing

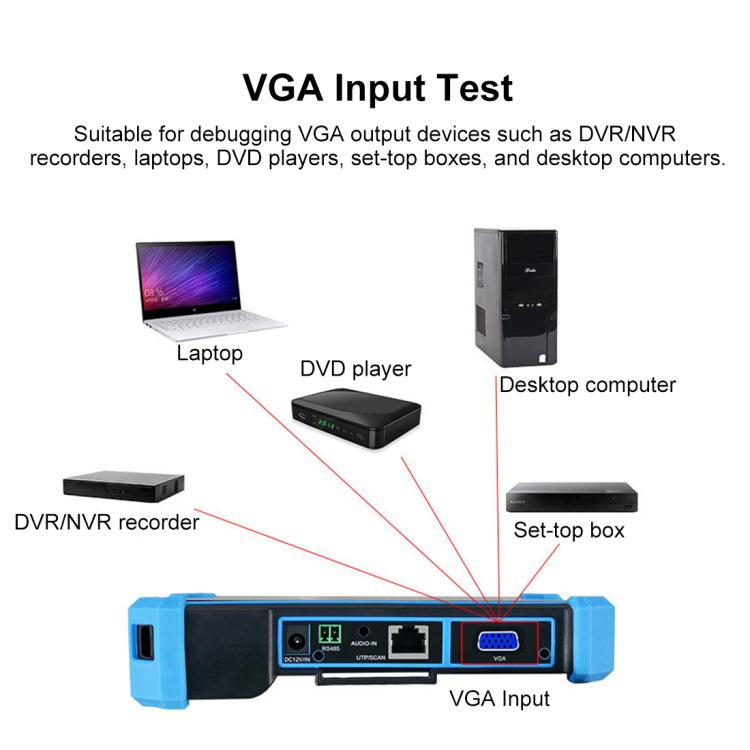

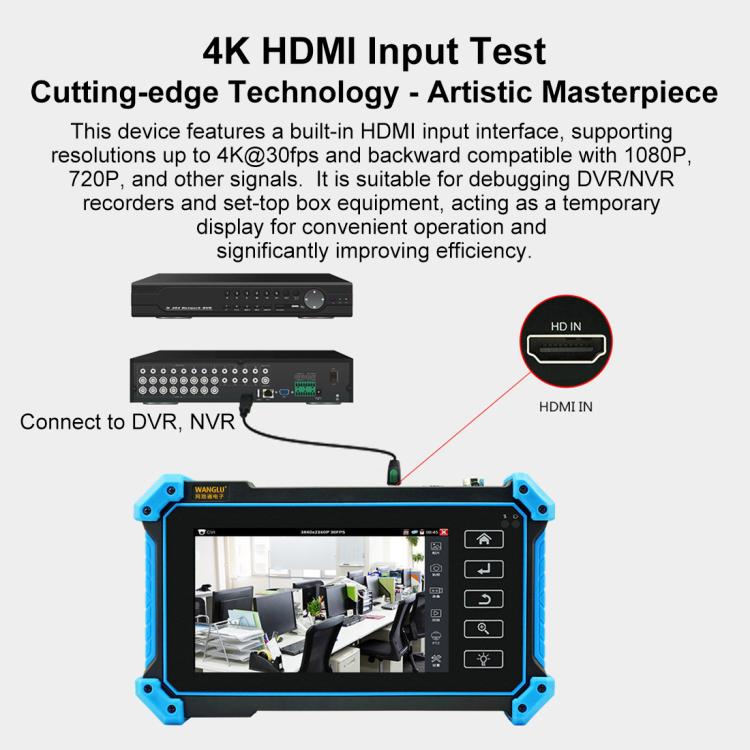

7. 4K/30fps HDMI input, 2K/60fps VGA input

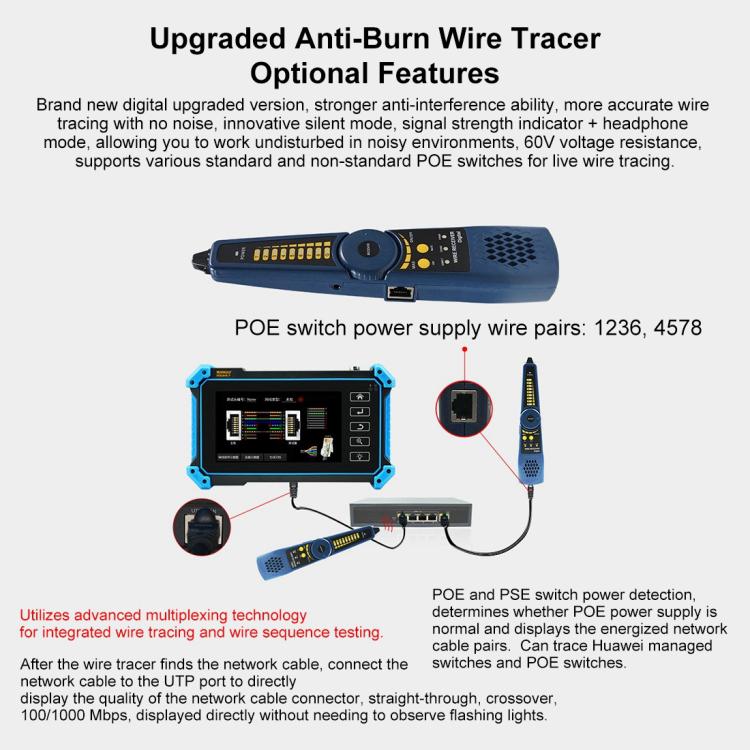

8. Enhanced digital cable finder, simultaneous testing of cable finding and sequencing
9. Built-in high-brightness LED illumination, clearly visible even in dim environments
