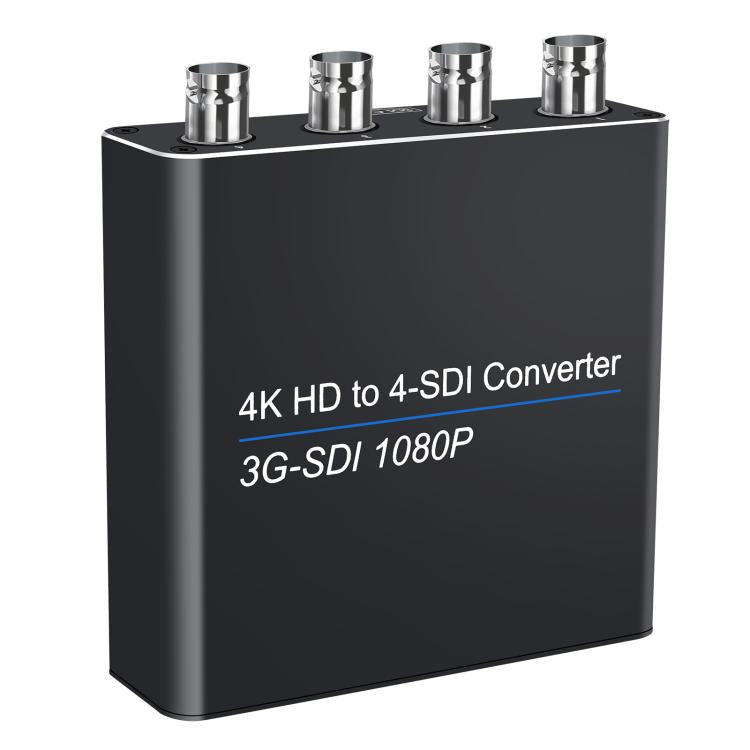

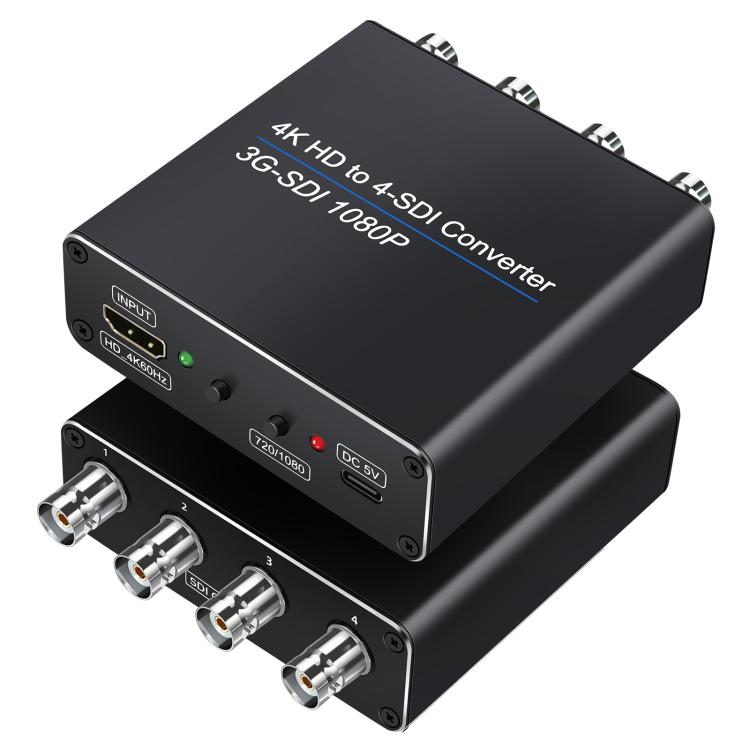

NK-814 4K HDMI Input to 4-SDI Output Converter(Black)

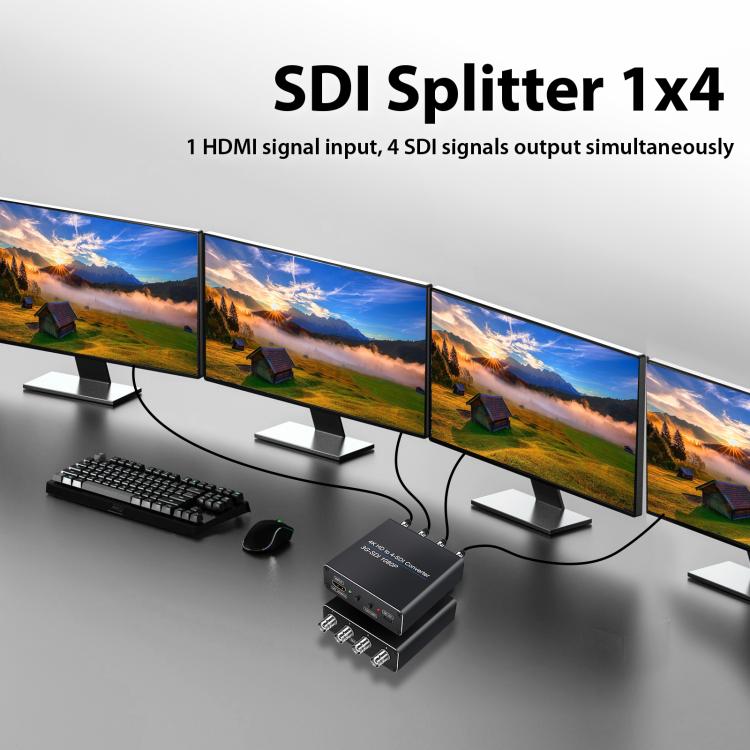

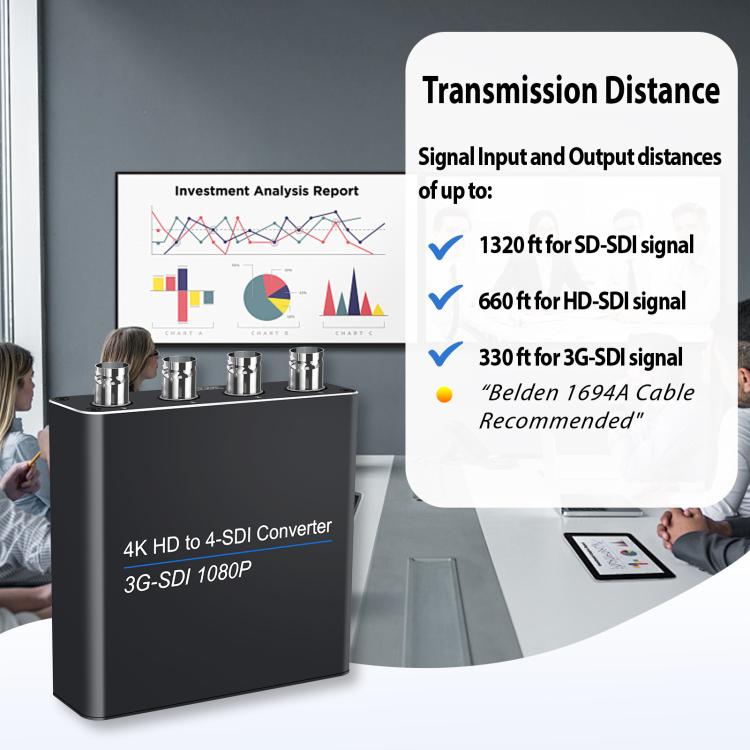

This product allows one HDMI video source to be converted into four SDI outputs for simultaneous display. It features built-in automatic recognition of all HD-SDI and 3G-SDI signal formats, supporting 2.97Gbps bandwidth and lossless transmission over long distances.

Features:

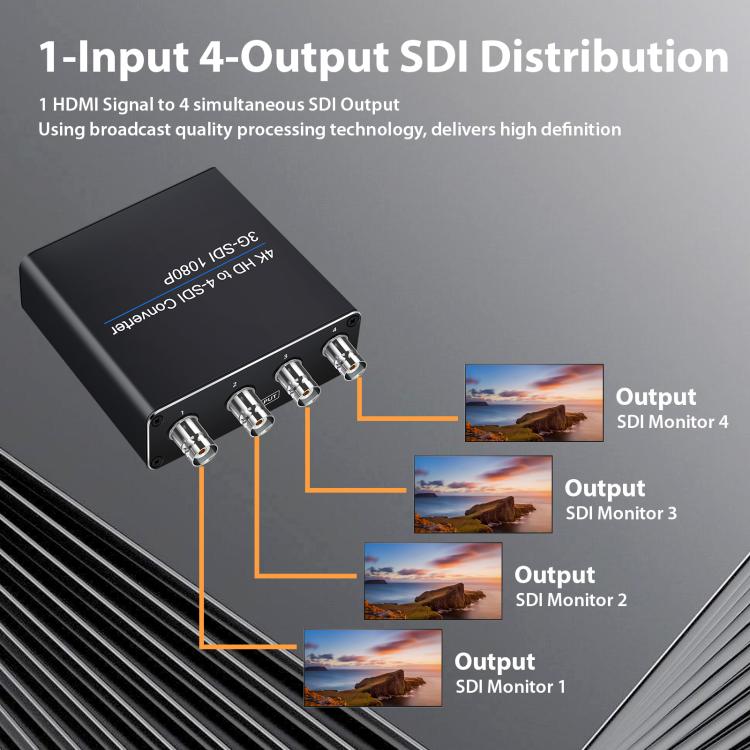

1. Supports one HDMI input signal and four SDI outputs.
2. Supports HD-SDI (1.485Gb/s) and 3G-SDI (2.97Gb/s) video formats.
3. Built-in cable equalization, clock recovery, and driver.

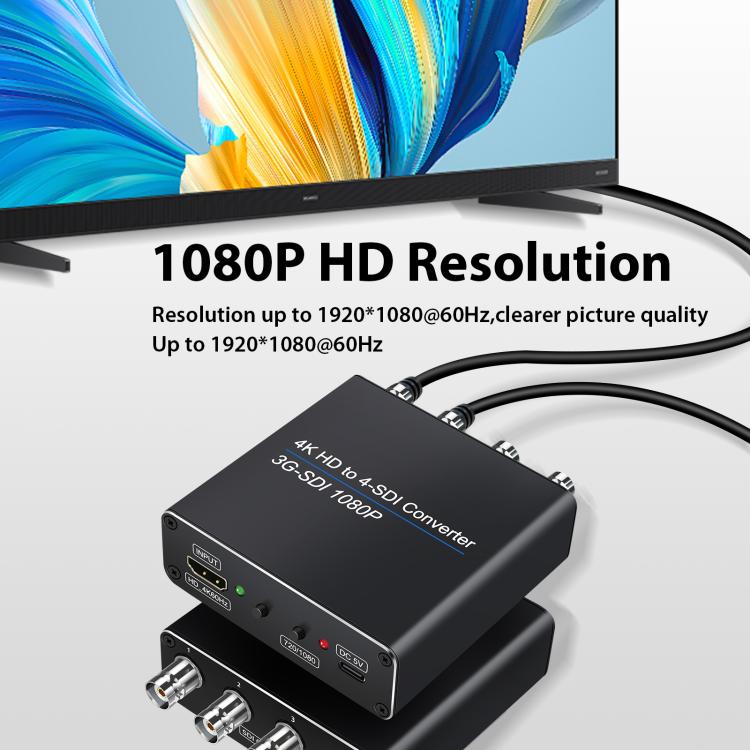

4. HDMI supports resolutions up to 4K 60Hz for clear and detailed images.
5. Supports 5V power supply.

Specifications:
1. Bandwidth: 3Gbps

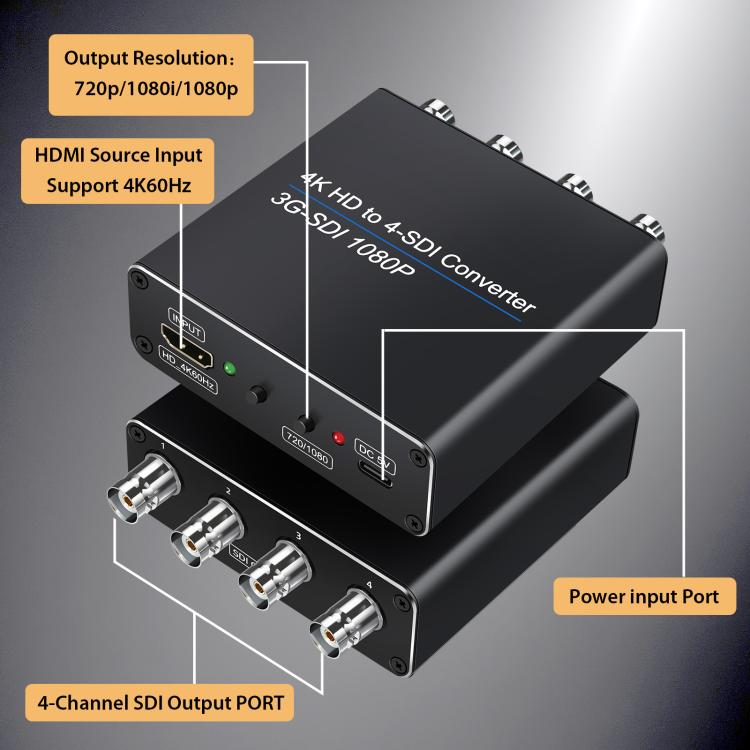

2. HDMI Input Port: 1 x HDMI female input port

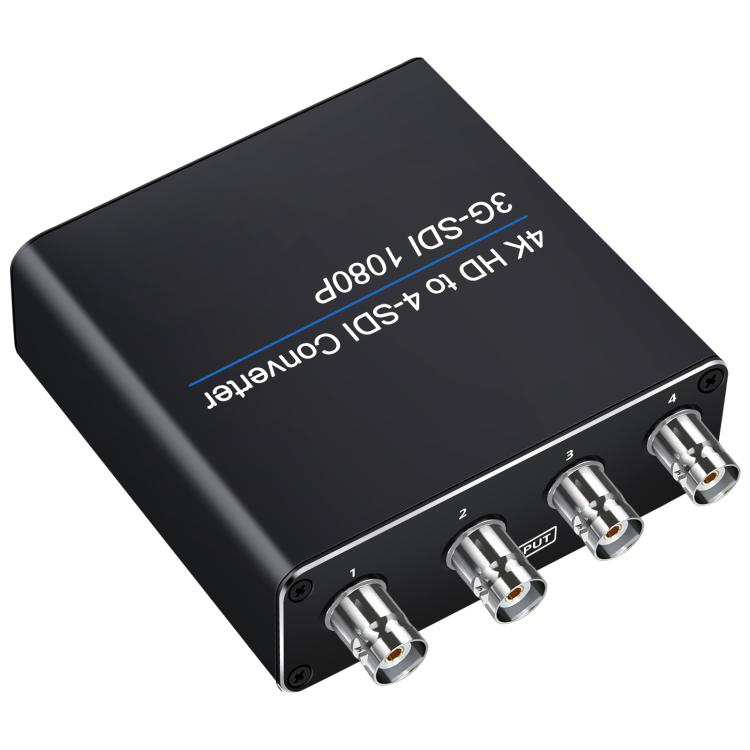

3. SDI Split Output Ports: 4 x BNC female output ports
4. Power Input: 5V 1A
5. ESD Protection Human Body Model: +/-8kV (air gap discharge) +/-4kV (contact discharge)
6. Operating Temperature: 0 degrees Celsius to 40 degrees Celsius
7. Storage Temperature: -20 degrees Celsius to 60 degrees Celsius
8. Relative Humidity: 20-90%RH (non-condensing)

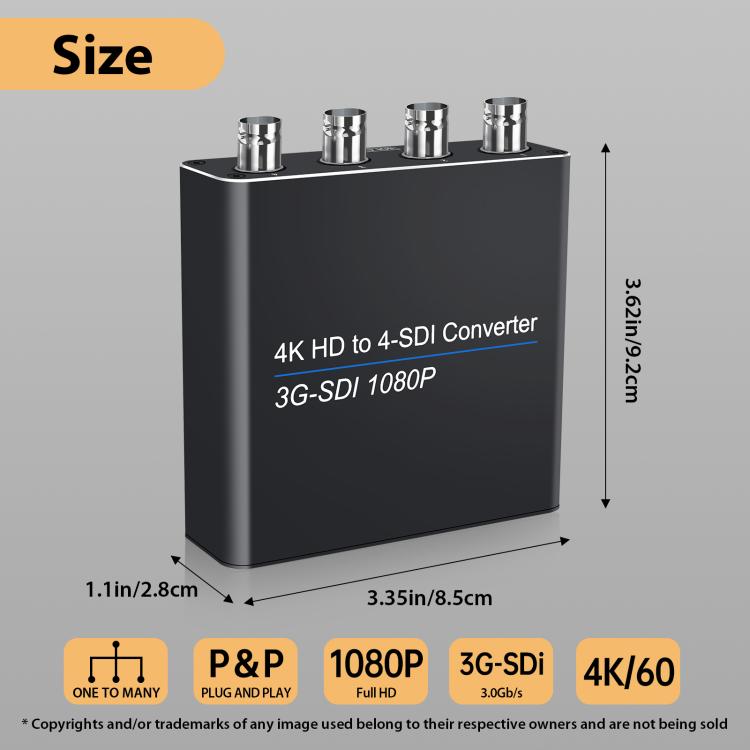

9. Dimensions: 8.5 x 9.2 x 2.8cm
10. Material: Aluminum casing
