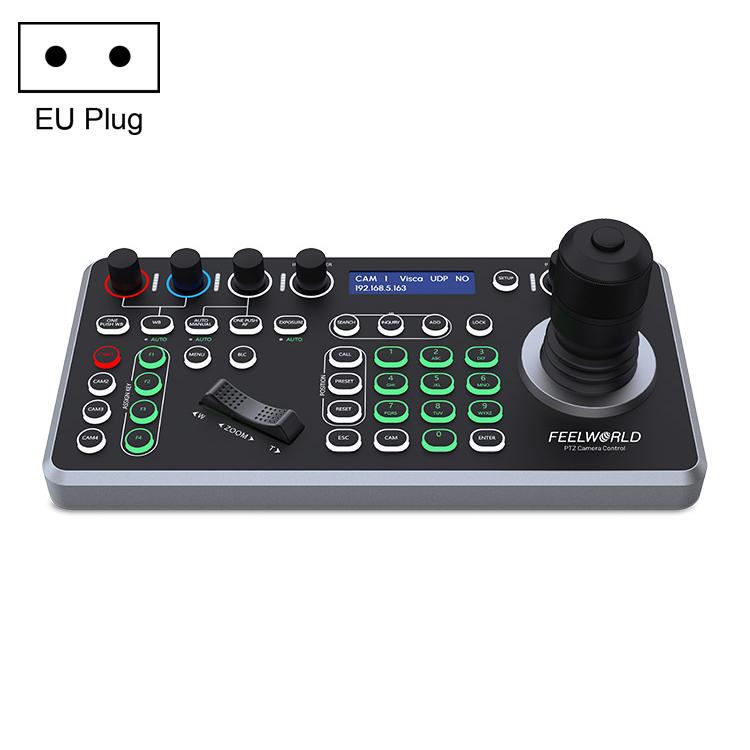

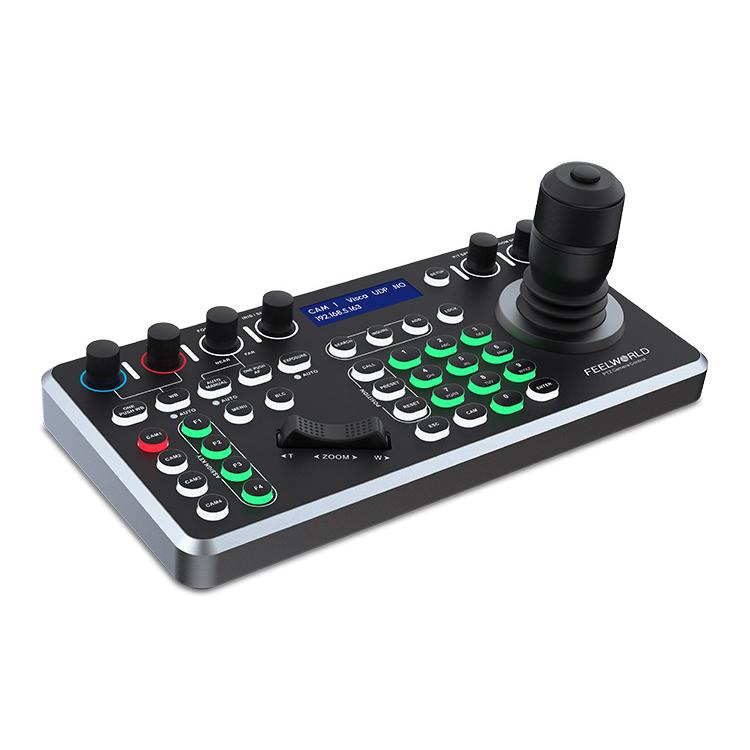

FEELWORLD KBC20 NDI PTZ Camera Controller Joystick Keyboard Control Multiple Control Protocol PoE Supported, Power Plug:EU Plug(Black)

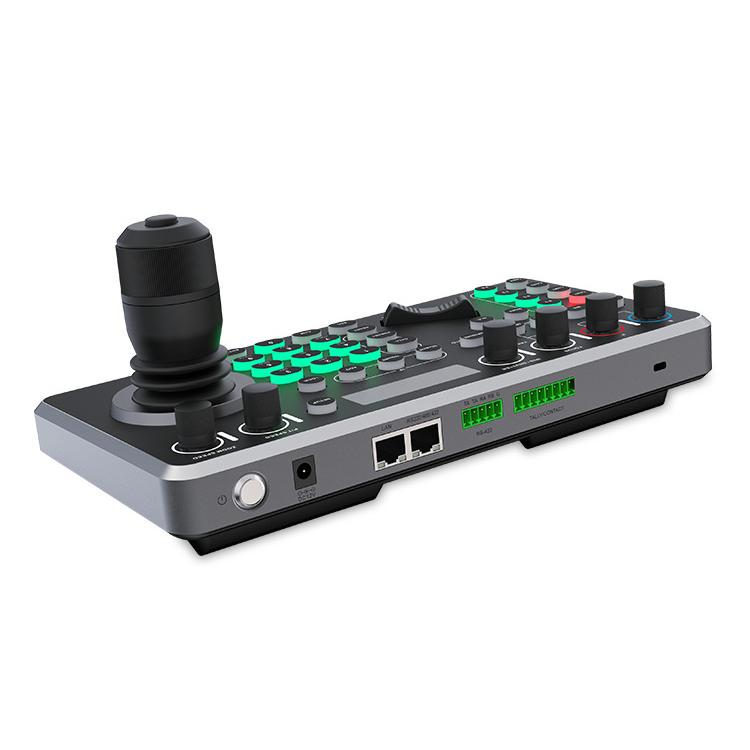

Specification:

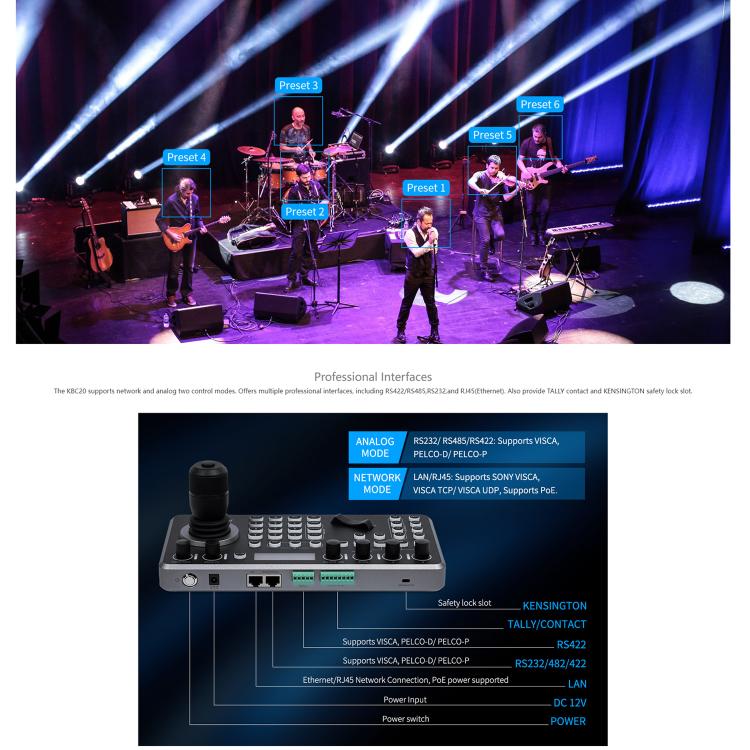

1. Model: KBC20
2. LAN: 1 x RJ45
3. RS232/RS485/RS422: 1 x RJ45 networkport to 9-pinround hole male
4. RS422: 1 x 5 Pin Terminal
5. TALLY/CONTACT: 1 x 8 Pin Terminal
6. KENSINGTON: /

Performance

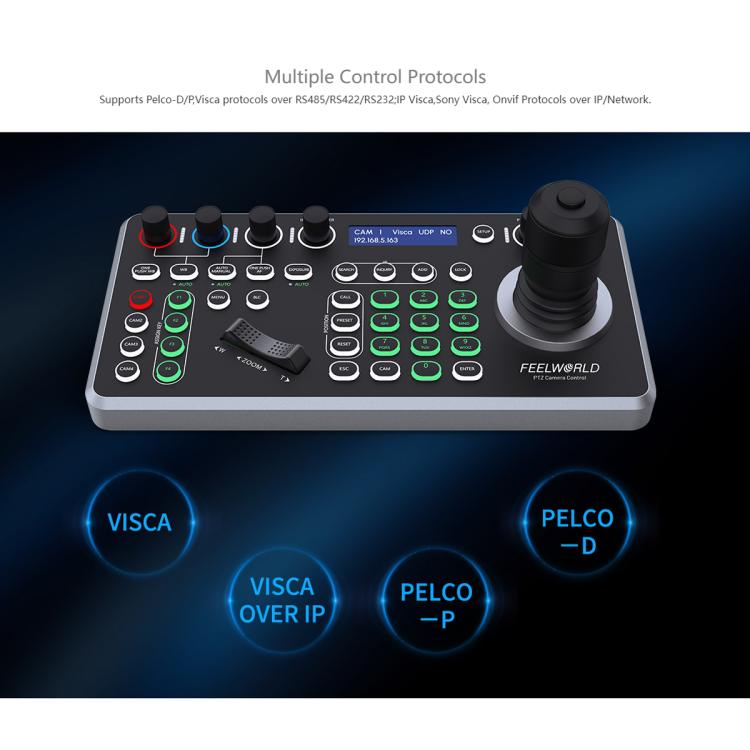

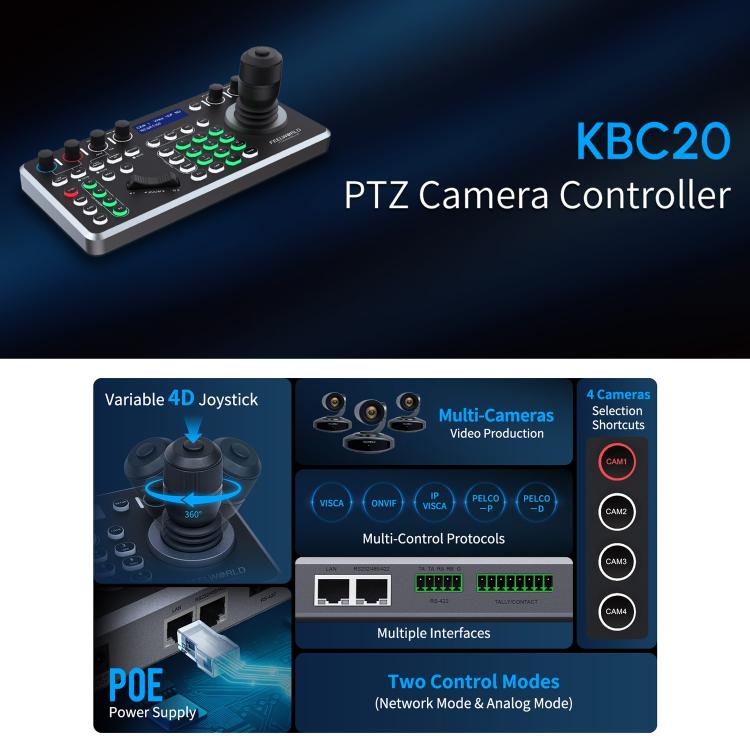

1. Control Protocol: NDI, ONVIF, IP VISCA, VISCA, Pelco-D, Pelco-P
2. Baud Rate(dps): 1200, 2400, 4800, 9600, 19200, 38400, 115200
3. Display: LCD Screen
4. Key Tone: ON/OFF
5. Joystick: Four dimensions (control: up, down, left, right, zoom, rotation)
6. Upgrade: WEB upgrade

Other Parameters
1. Input Voltage: DC 12V
2. Power Consumption: Maximum: 0.6W
3. Temperature: 0 degree C-50 degree C
4. Humidity: 0%-90%

Feture:
1. Support multiple control network protocols, compatible with any PTZ cameras

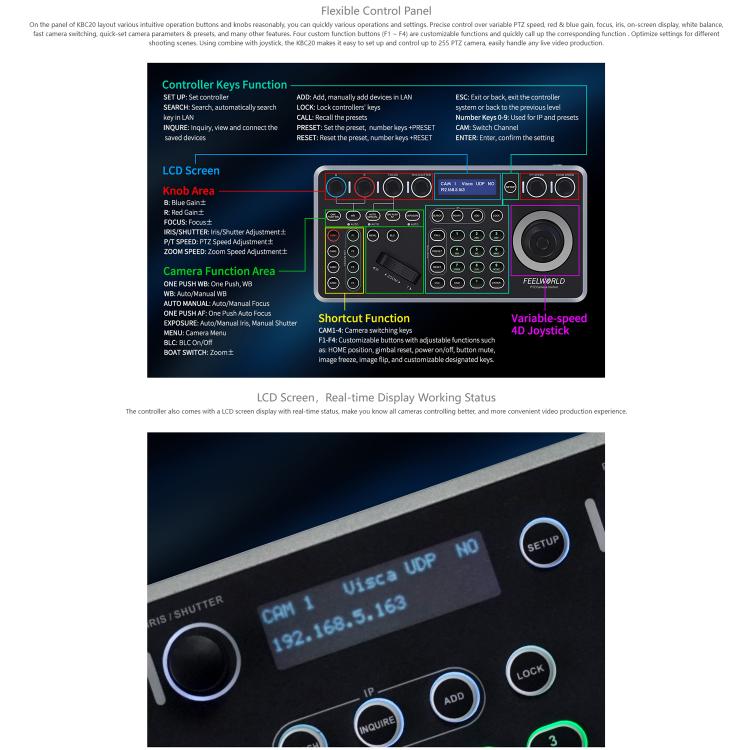

2. LCD screen real-time display working status, improve efficiency
3. Reasonable button layout, easily handle any live video production

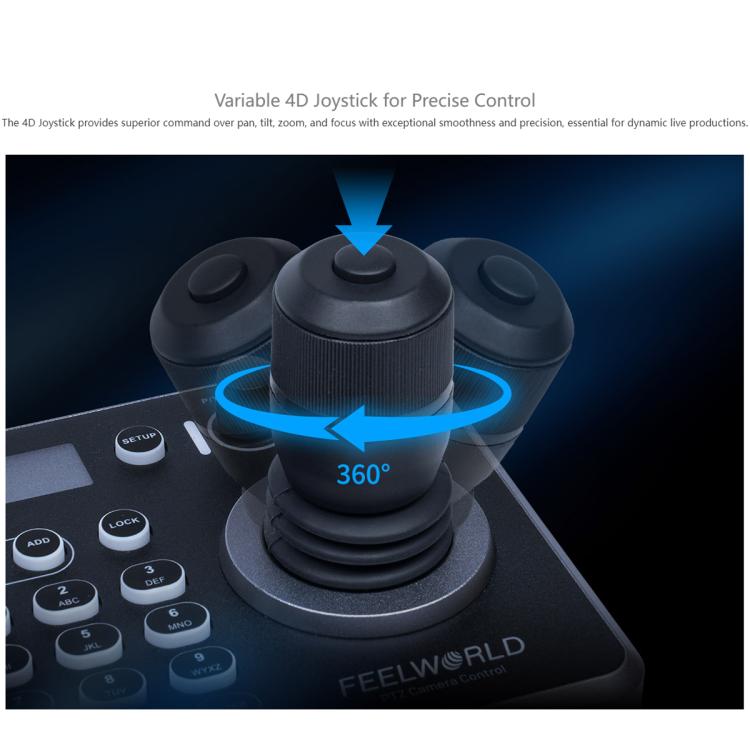

4. 4D Joystick precise speed control
5. Custom button setting, more flexible for controlling

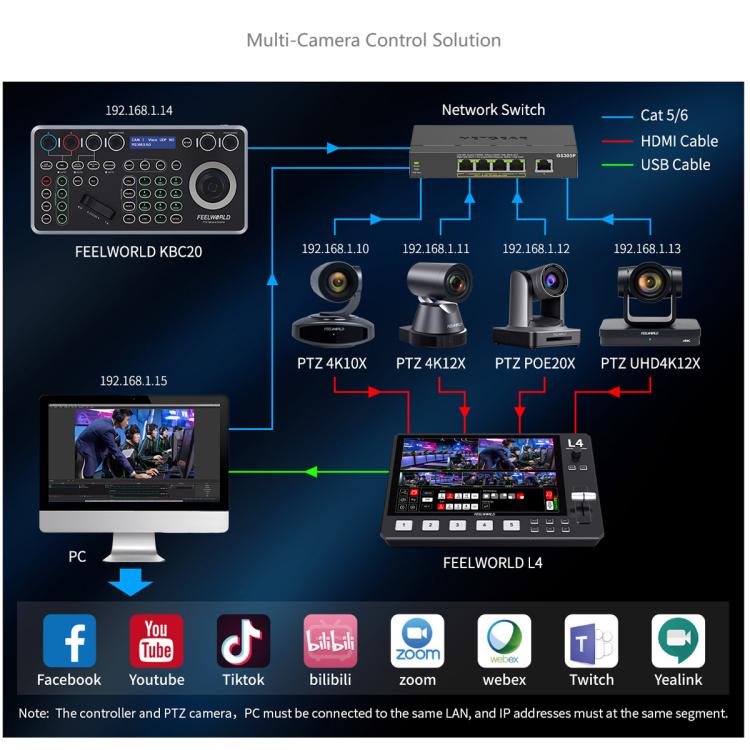

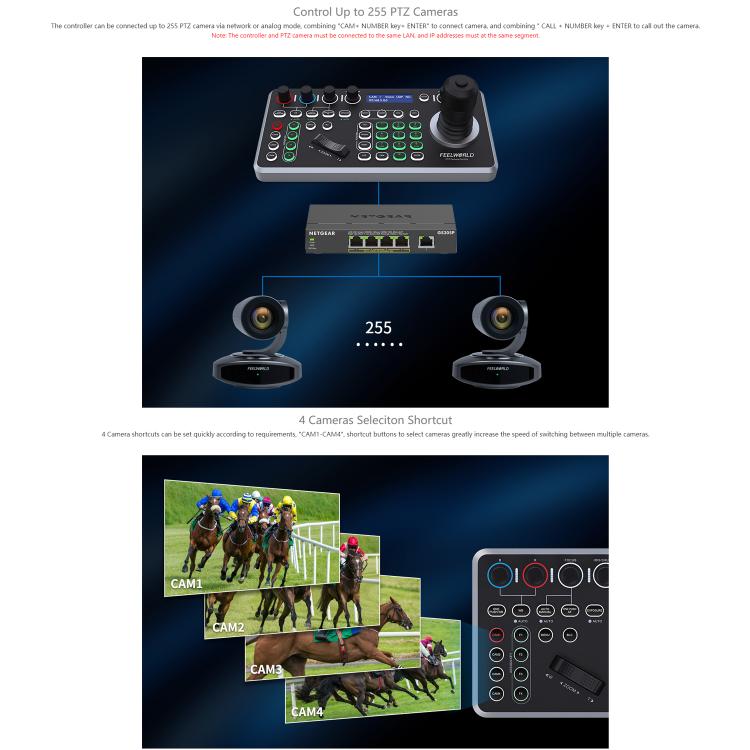

6. Multiple control connectors, up to connect 255 cameras

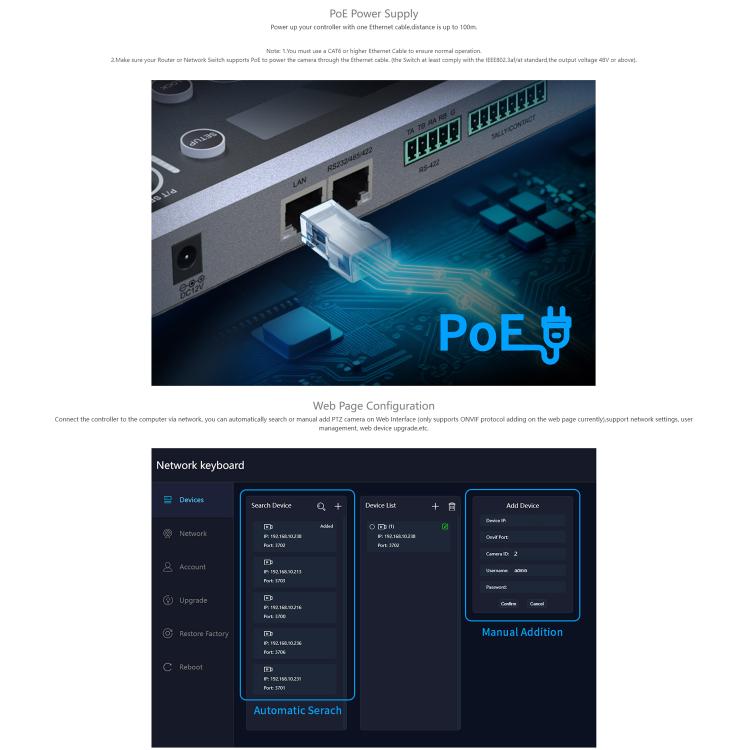

7. Support POE (Power over Ethernet)

Packing List:
1. Controller x 1
2. Power Adapter x 1
3. RS45-DIN8 Cable x 1
4. Quick Start Guide x 1
