430ACT 4.3 Inch HD Surveillance Tester Analog/Coaxial AHD/TVI/CVI 8MP Supported Engineering Tool AU Plug

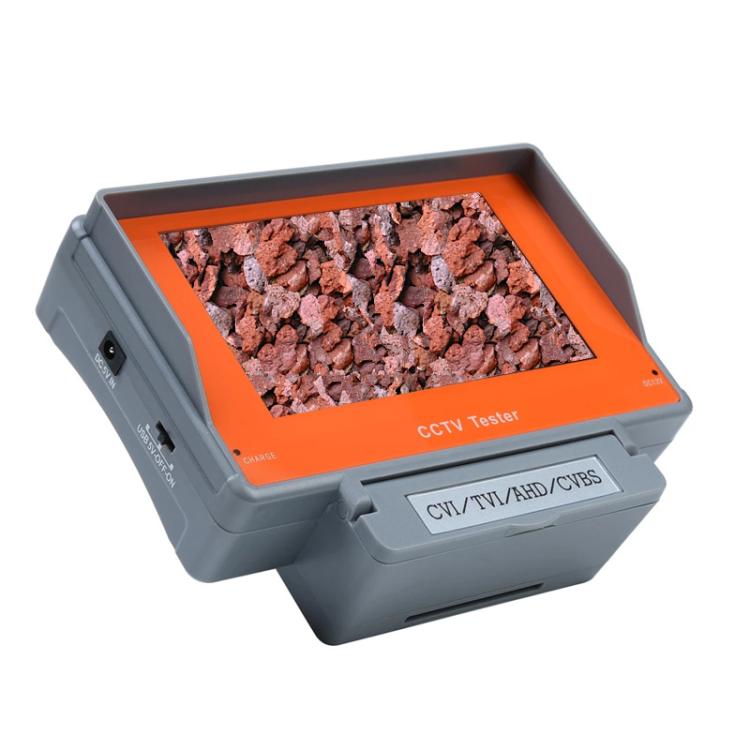

1. Video signal testing function: high-definition video monitoring tester, with a built-in high-definition 4.3 inch 800(RGB) x 480 wide-angle display screen, supporting image signals in PAL/NTSC formats
2. DC12V 1A power output function: the video monitoring tester is specially designed with a 12V 1A power output port for camera power supply, providing temporary power supply for the camera
3. Audio testing function: audio testing function of the video monitoring tester, which can test audio devices such as microphones at the video monitoring front end

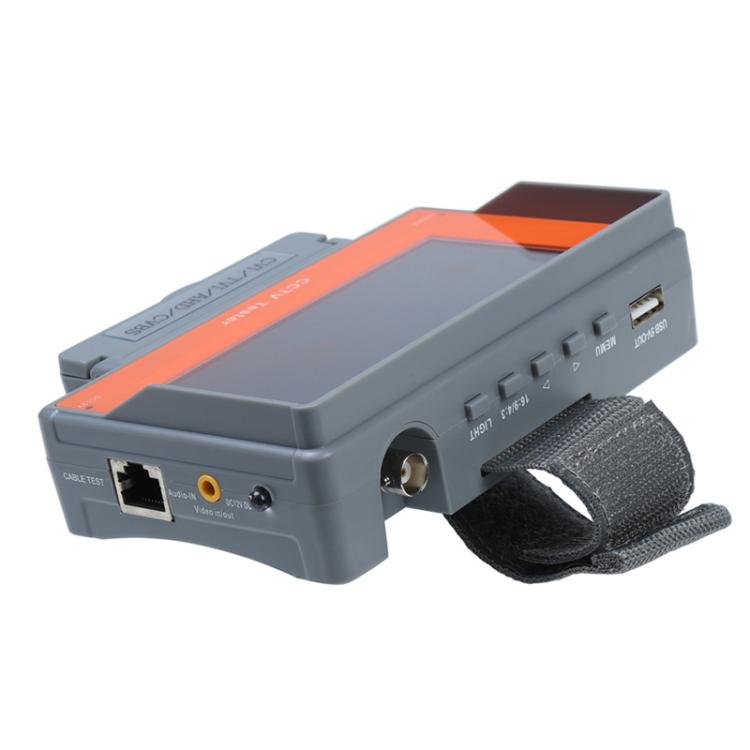

4. Enhanced network cable testing function: network cable testing function, through the UTP CABLE TEST test port on the instrument
5. TVI camera testing: TVI coaxial high-definition video monitoring test, supporting 720p 25/30/50/60fps/1080p 25/30fps, 5MP, 8MP resolution camera image testing
6. AHD camera testing: AHD coaxial high-definition video monitoring test, supporting 720p 25/30fps/1080p 25/30fps, 5MP, 8MP resolution camera image testing
7. CVI camera testing: CVI coaxial high-definition video monitoring test, supporting 720p 25/30fps/1080p 25/30fps, 4MP, 5MP resolution camera image testing
8. Battery: built-in 3.7V 3000mAh polymer lithium battery, charging once lasts for 2-4 hours, and can be used normally for about 6 hours (excluding CCD power output)

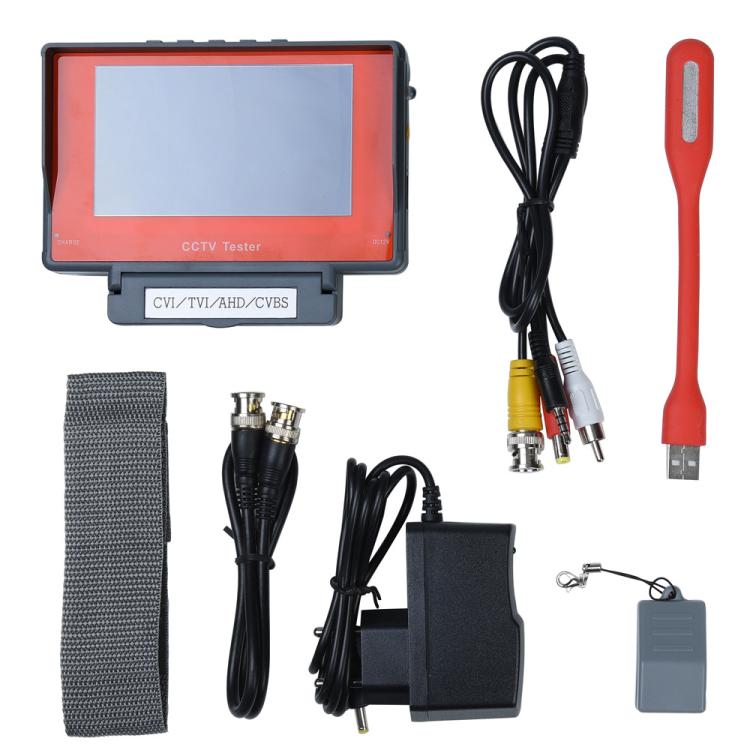

Packaging list:
- main unit x 1
- power adapter x 1
- BNC cable x 1
- audio-video cable x 1
- safety rope x 1
- network port x 1
- light x 1
